Product Details:
|
| Brand Name: | HuaWei | Model Number: | PAC600S12-CB |
|---|---|---|---|
| Dimensions Without Packaging (H X W X D) [mm(in.): | 2 | Weight Without Packaging [kg(lb): | 2 |
| Maximum Input Current [A: | 2 | Rated Output Voltage [V: | 2 |
| Rated Output Current [A: | 2 | Input Voltage: | 110-240VAC |
| Rated Output Power [W: | 2 | Warranty: | 1 Year |
| High Light: | 600W Switched Mode Power Supply,PAC600S12-CB,12V Switched Mode Power Supply |
||

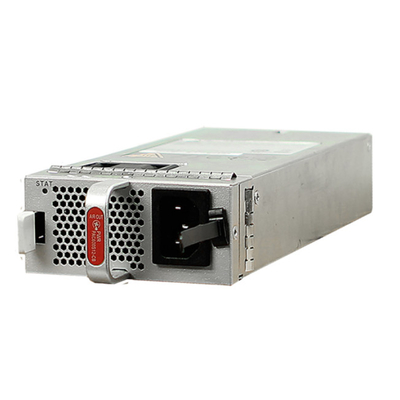

PAC600S12-CB HuaWei 600W AC power module switch 600W power module
| Item | Details |
|---|---|
| Description | 600W AC Power Module |
| Part Number | 02312FFU |
| Model | PAC600S12-CB |
Ersion Mapping
Mappings between PAC600S12-CB and product models
|
Product |
Product Model |
First Supported Version |
|---|---|---|
|
S6730-H |
S6730-H24X6C |
V200R013C02 |
|
S6730-H |
S6730-H24X6C |
V200R020C10 |
|
S6730-H |
S6730-H48X6C |
V200R013C02 |
|
S6730-H |
S6730-H48X6C |
V200R020C10 |
|
S6730-S |
S6730-S24X6Q |
V200R019C00 |
|
S6730-S |
S6730-S24X6Q |
V200R020C10 |
|
S6730S-S |
S6730S-S24X6Q-A |
V200R019C00 |
|
S6730S-S |
S6730S-S24X6Q-A |
V200R020C10 |
|
S6730S-H |
S6730S-H24X6C-A |
V200R019C10 |
|
S6730S-H |
S6730S-H24X6C-A |
V200R020C10 |

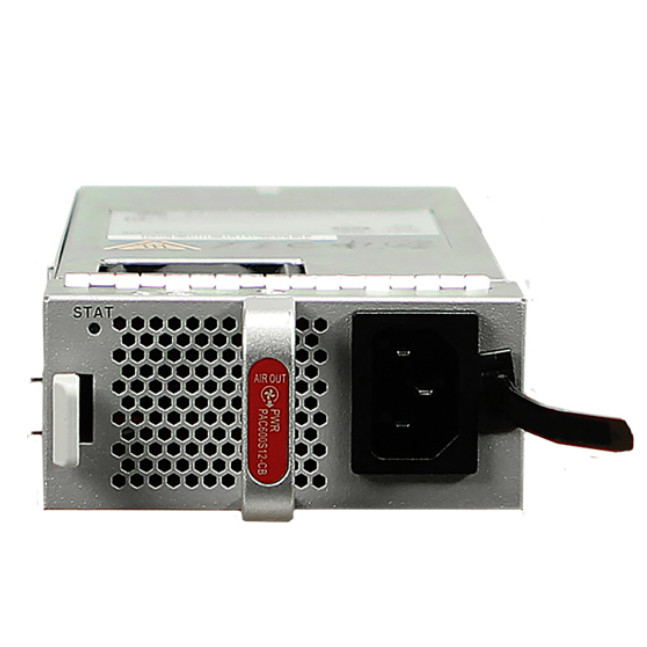

Panel of the PAC600S12-CB
| 1. Lock | 2. Indicator | 3. Fan air vent | 4. Handle |
| 5. Airflow flag (air out) | 6. AC power socket | - | - |
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| STAT | Running status indicator | - | Steady off | The power input is abnormal (for example, no input, overvoltage, or undervoltage) or the power output is abnormal (for example, overvoltage or undervoltage). |
| Green | Steady on | The power module is working normally. | ||
| Green | Blinking | The output power is out of range, for example, overcurrent or short circuit occurs. |
|
Function |
Description |
|
|---|---|---|
| Input protection | Input undervoltage protection | In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply. |
| Input overcurrent protection | In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range. | |
| Output protection | Output overvoltage protection | In this protection state, the power module stops supplying power intermittently. When the output voltage restores to the normal range, the power module automatically resumes power supply. |
| Output overcurrent protection | In this protection state, the power module supplies power intermittently. When the output current is within a range, the power module automatically resumes power supply. | |
| Output short-circuit protection | In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply. | |
| Overtemperature protection | When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. | |
| Hot swapping | Supported | |
When a power module enters overtemperature protection state, take measures to lower the ambient temperature. The power module can automatically start supplying power again when the temperature falls within the normal range.
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.) |
| Weight without packaging [kg(lb)] | 0.95 kg (2.09 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] |
100 V AC to 240 V AC, 50/60 Hz 240 V DC |
| Input voltage range [V] |
90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC |
| Maximum input current [A] |
100 V AC to 240 V AC: 8 A 240 V DC: 4 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 50 A |
| Rated output power [W] | 600 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
