Product Details:
|
Brand: | HuaWei | Product Name: | S6720-16X-LI-16S-AC |
---|---|---|---|
Maximum Power Consumption (100% Flow, Full Fan Speed): | 67.9W | Weight (Kg): | 4.1kg |
MEMORY (RAM): | 1GB | Product Size: | 442.0mm×225.0mm×43.6mm |
Maximum Voltage Range: | AC Input: 90V AC~264V AC; 47Hz~63Hz | Warranty: | 1 Year |
High Light: | S6720-16X-LI-16S-AC,16 Port Fiber Optic Switch,SFP+ Fiber Optic Switch |

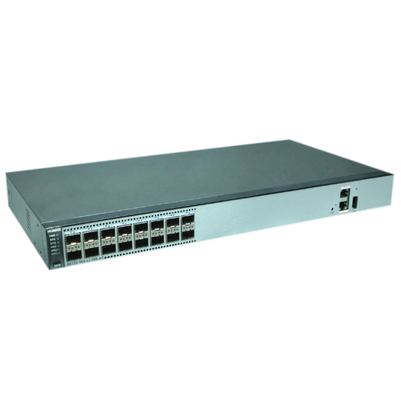

Fiber Optic Switch S6720-16X-LI-16S-AC HuaWei 6720-LI series 16 port 10GE SFP+ Network Switch New Original
Device family |
Device model |
Imprint |
---|---|---|
S6720-LI | S6720-16X-LI-16S-AC | V200R011C00 TO V200R019C10 VERSIONS SUPPORTED. |
1 |
16 X 10GE SFP+ ETHERNET OPTICAL INTERFACES supported modules and cables:
|
2 |
1 X PNP BUTTON Notice:
V200R012C00 RELEASES AND LATER VERSIONS SUPPORT: long press (6s or more): factory reset and reset the device. short press: reset the device. resetting the device will cause business interruption, so use this button with caution. |
3 | 1 ETH MANAGEMENT INTERFACE | 4 | 1 Console interface |
5 | 1 X USB PORT | 6 |

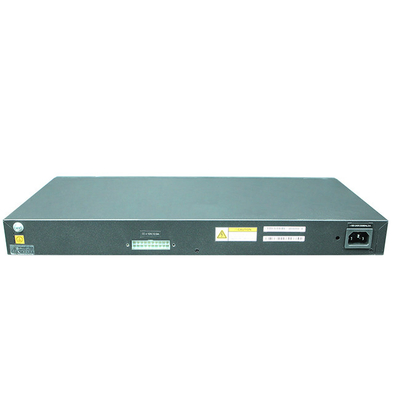

Grounding screws Illustrate:
use the grounding cable together.
|
7 |
RPS POWER OUTLET Illustrate:
Use RPS cables, RPS cables do not support hot swapping. |
8 |
Ac terminal anti-tripping jack Illustrate:
the jack reserved for installation ac terminal anti-tripping, ac terminal anti-tripping does not ship with the device.
|
9 |
Ac outlet Illustrate:
use ac power cables. |
- | - |
10GE SFP+ ETHERNET OPTICAL INTERFACE
Attribute |
Description |
---|---|
Connector type | LC/PC |
Optical interface properties | Determined by the selected optical module |
Complies with standards | IEEE802.3ae |
Working mode | 10GE/GE ADAPTIVE |
Console interface
Attribute |
Description |
---|---|
Connector type | RJ45 |
Complies with standards | RS-232 |
Working mode | Duplex UART (Universal Asynchronous Receiver/Transmitter) |
Baud rate |
9600bit/s,19200bit/s,38400bit/s,57600bit/s,115200bit/s the default is 9600bit/s |
ETH MANAGEMENT INTERFACE
Attribute |
Description |
---|---|
Connector type | RJ45 |
Complies with standards | IEEE802.3 |
Working mode | 10/100Mbit/s adaptive |
Maximum effective distance | 100m |
USB PORT
Note:
DUE TO THE DIFFERENCE IN THE COMPATIBILITY AND DRIVE OF THE U DISK MODEL OF DIFFERENT MANUFACTURERS, IF THE U DISK CANNOT BE USED, PLEASE TRY TO REPLACE THE U DISK OF THE MAINSTREAM MANUFACTURER, THE SWITCH SUPPORTS A U DISK WITH A CAPACITY OF NO MORE THAN 128GB.
The S6720-16X-LI-16S-AC device does not have a 40GE interface, and the other INDICATORS have the same identification and meaning as the S6720-26Q-LI-24S-AC, please refer to the INDICATOR description.
The S6720-16X-LI-16S-AC device is powered by a single built-in supply and does not support pluggable power modules. Supports external RPS1800 power supply to provide power backup function for the device.
L: POWER SUPPLY FIREWIRE | N: POWER ZERO WIRE | PGND: PROTECTIVE GROUND | GND: 12V REFERENCE GROUND |
Specifications
Specification |
Parameter |
---|---|
MEMORY (RAM) | 1GB |
Flash | The physical space is 512MB, and the actual free space can be viewed using the display version command |
MTBF (YEARS) | 39.2 |
MTTR AVERAGE REPAIR TIME (HOURS) | 2 |
Usability | Greater than 0.99999 |
Service port lightning protection specifications | NA |
Lightning protection specifications of the power port | The differential mode ± 6kV and the common mode ± 6kV |
Dimensions (w× d× h) |
|
Weight (including packaging materials) | 4.1kg |
Stacking ports | ANY 10GE SFP+ INTERFACE |
RTC | Backing |
RPS | Backing |
PoE | Not supported |
Rated voltage range | AC input: 100V AC~240V AC; 50/60Hz |
Maximum voltage range | AC input: 90V AC~264V AC; 47Hz~63Hz |
Maximum power consumption (100% flow, full fan speed) | 67.9W |
TYPICAL POWER CONSUMPTION (30% FLOW RATE, TESTED ACCORDING TO ATIS STANDARD) | 45.2W |
Operating temperature range |
0°C~45°C (0~1800m altitude) Illustrate:
Altitude 1800 ~ 5000m: for every 220m increase in altitude, the maximum temperature specification is reduced by 1 °c. |
Short-term operating temperature range |
-5°C~+50°C (0m~1800m altitude) Illustrate:
1800m ~ 5000m, the maximum temperature specification is reduced by 1 °C for every 220m increase in altitude. The device supports short-term operation in cases where the normal operating temperature range is exceeded, subject to the following conditions:
The device does not support booting when the ambient temperature is below 0°C. The maximum distance of the optical module used in short-term operation should not exceed 10km. |
Storage temperature range | -40°C~+70°C |
AMBIENT NOISE (27°C, ACOUSTIC POWER) | Less than 46.5dB(A) |
Relative humidity range | 5% RH TO 95% RH, NON-CONDENSING |
Operating altitude | 0m~5000m |
Product certification |
|
