HuaWei OSN6800 TN12M40V EDFA Amplifier 40 Wave Adjustable Optical

HuaWei OSN6800 TN12M40V EDFA Amplifier 40 Wave Adjustable Optical
HuaWei OSN6800 TN12M40V EDFA Amplifier 40 Wave Adjustable Optical HuaWei OSN6800 TN12M40V EDFA Amplifier 40 Wave Adjustable Optical

Large Image :  HuaWei OSN6800 TN12M40V EDFA Amplifier 40 Wave Adjustable Optical

Product Details:
Place of Origin: China, Guangdong
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: TN12M40V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: new in the box.
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 20PCS

HuaWei OSN6800 TN12M40V EDFA Amplifier 40 Wave Adjustable Optical

Description
Product Name: TN12M40V Dimensions(mm): 50.8(W) X 220(D) X 264.6(H)
Weight(kg): 2.3 Adjacent Channel Spacing(GHz): 100
Description: Multiplexes 40 C_EVEN Channels Into One Main Path Attenuation Range(dB): 0-15
Adjacent Channel Isolation(dB): > 22 Warranty: 1 Year
High Light:

40 Wave EDFA Amplifier

,

HuaWei OSN6800

,

TN12M40V

HuaWei OSN6800 TN12M40V 40-wave automatic adjustable optical attenuation multiplexer VOA (196.00THz~192.10THz 100GHz LC)







Overview

TN12M40V01 is a 40-channel multiplexing board applied to Huawei OSN6800 and OSN8800. TN12M40V01 part number is 03030NAA, another version TN11M40V with different system compatibility and feature supported. TN12M40V have feature code 01 and 02, different channels. TN12M40V01 multiplexes 40 C_EVEN channels into one main path, and TN12M40V02 multiplexes 40 C_ODD channels into one main path; TN12M40V01 can substitute for TN11M40V01 only after the software upgrade to OSN 8800/6800 V100R006C01 SPC300 or later.



* 40-Channel multiplexing board with VOA (C_Even,196.00THz~192.10THz,100GHz,LC), occupies two slots on Huawei OSN6800 and OSN8800.

* TN12M40V01 can substitute for TN11M40V01 only after the software upgrade to OSN 8800/6800 V100R006C01 SPC300 or later.

* Used to multiplex signals, monitor performance of optical signals, monitor alarms and performance events, and adjust optical power.

* Multiplexes 40 C_EVEN wavelength signals into one multi-wavelength signal.

* Provides an in-service monitoring port (MON).

* Detects the optical power and reports the alarms and performance events for the board.

* Adjusts the optical power of each signal before multiplexing.









Tech Specs

Front Panel

There are indicators and interfaces on the front panel of the TN12M40V board.

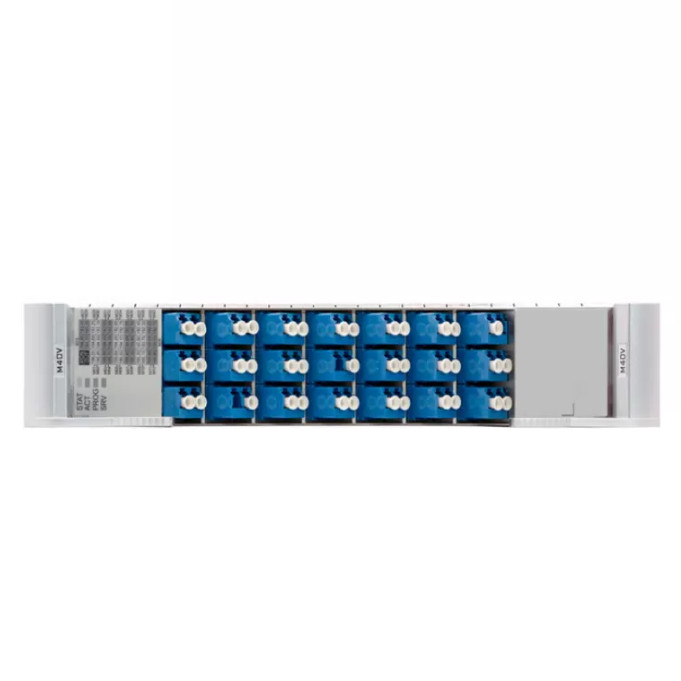

HW OSN6800 TN12M40V 40-wave automatic adjustable optical attenuation multiplexer VOA (C_Even 196.00THz~192.10THz 100GHz LC)

Valid Slot

OSN 8800 T64 subrack: TN12M40V can be installed in IU1-IU7, IU11-IU17, IU19-IU25, IU27-IU33, IU35-IU41, IU45-IU51, IU53-IU59, IU61-IU67.

OSN 8800 T32 subrack: TN12M40V can be installed in IU1-IU7, IU11-IU18, IU20-IU26, IU29-IU35.

OSN 8800 T16 subrack: TN12M40V can be installed in IU1-IU7, IU11-IU17.

OSN 8800 universal platform subrack: TN12M40V can be installed in IU1-IU15.

OSN 6800 subrack: TN12M40V can be installed in IU1-IU16.

Feature Code

Unit

Type

Description

TN12M40V

01

Multiplexes 40 C_EVEN channels into one main path

Optical Interface Parameter

Adjacent channel spacing(GHz)

100

Insertion loss(dB)

<= 8a

Reflectance(dB)

< -40

Operating wavelength range(nm)

1529-1561

Adjacent channel isolation(dB)

> 22

Non-adjacent channel isolation(dB)

> 25

Attenuation range(dB)

0-15

Loss accuracy(dB)

<= 1 (0 to 10)

<= 1.5 (>10)

Polarization dependent loss(dB)

<= 0.5

Maximum channel insertion loss difference(dB)

<= 3a

Mechanical Specifications

Dimensions(mm)

50.8(W) x 220(D) x 264.6(H)

Weight(kg)

2.3

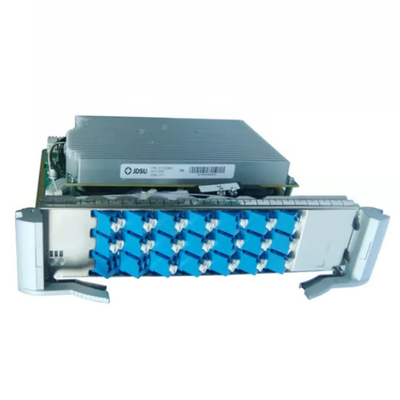

HuaWei OSN6800 TN12M40V EDFA Amplifier 40 Wave Adjustable Optical 1HuaWei OSN6800 TN12M40V EDFA Amplifier 40 Wave Adjustable Optical 2





Q&A

Q: How many hardware version does M40V have?

A: M40V is available in two functional versions, namely, TN11 and TN12. The mapping between the board and equipment as below:

Board General 8800 T64 Subrack Enhanced 8800 T64 Subrack General 8800 T32 Subrack Enhanced 8800 T32 Subrack 8800 T16 Subrack 8800 Universal Platform Subrack 6800 Subrack 3800 Chassis
TN11M40 Y Y Y Y Y Y Y N
TN12M40 Y Y Y Y Y Y Y N



Q: What are the differences of different hardware versions?

A:

  TN11M40V TN12M40V
Appearance three slots two slots



Q: What is the board substitution relation among different versions?

A: TN12M40V can substitute for TN11M40V.



Q: What is the difference between different feature codes?

A:

Unit Type Description
TN11M40V/TN12M40V 01 Multiplexes 40 C_EVEN channels into one main path.
02 Multiplexes 40 C_ODD channels into one main path.



Q: What is the difference between M40V and M40?

A: M40V has VOA, can adjust the optical power of each signal before multiplexing; While M40 cannot.



Q: Can I return/exchange board if not compatible with my system?

A: Yes, please tell our sales team your system and main control board version, before purchase.



Q: Is this board new or refurbished?

A: Yes, it is original new, not been used.



Q: What is the lead time for TN12M40V01 board?

A: In normal condition is 5 days, better to confirm with our sales team before your purchase.



Packing

1. All products will be packed in carton, so the product can get effective protection to avoid damage.

2. Packaging according to customer requirement.



Shipping

1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.

2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.

3. You can choose your own shipping agent, we will provide good cooperation for it.

Contact Details
Shenzhen Toptoday Network Co., Ltd.

Contact Person: Helen

Tel: +8613590164558

Send your inquiry directly to us (0 / 3000)
