Product Name: | S5710-28C-PWR-EI-AC | Stacking Ports: | 4*10GE SFP+ INTERFACE OR 2*10GE SFP+ REAR CARD INTERFACE |
---|---|---|---|
PoE: | Backing | Rated Voltage Range: | AC Input: 100V AC~240V AC; 50/60Hz |
Maximum Voltage Range: | AC Input: 90V AC~264V AC; 47Hz~63Hz | Dimensions (w× D× H): | 442.0mm×420.0mm×44.4mm |
Flash: | 200MB | Warranty: | 1 Year |
High Light: | S5710 28C PWR EI AC,24 Port Gigabit Fiber Optic Switch,S5710 28C PWR EI AC Electro Optic Switch |
S5710 28C PWR EI AC 24 Port Gigabit Fiber Optic Switch POE Power Supply
S5710-28C-PWR-EI-AC HuaWei 24-port Gigabit POE power supply manageable switch comes with 4 SFP+
software companionship
device family |
device model |
imprint |
---|---|---|
S5710-EI |
S5710-28C-PWR-EI-AC |
V200R002C00 TO V200R005C02 VERSIONS SUPPORTED. illustrate: V200R003C02, V200R003C10, V200R005C01 VERSIONS ARE NOT SUPPORTED |

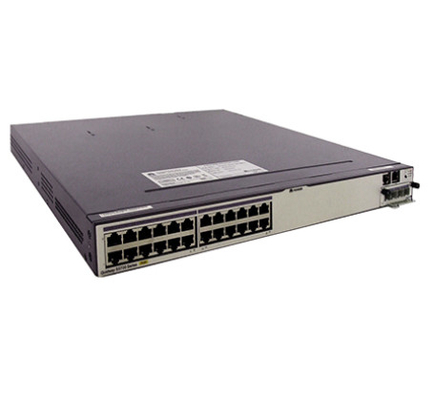

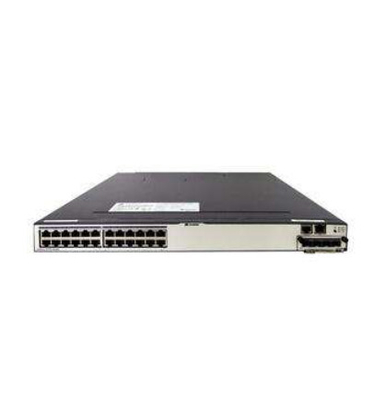

Appearance of S5710-28C-PWR-EI-AC
.
1 |
20 PoE+ 10/100/1000BASE-T Ethernet electrical interfaces |
2 |
4 Combo interfaces (10/100/1000BASE-T (PoE+)+100/1000BASE-X) Modules supported by Combo Optical Port: |
3 |
4 X 10GE SFP+ ETHERNET OPTICAL INTERFACES supported modules and cables: |
4 |
1 ETH MANAGEMENT INTERFACE |
5 |
1 Mini USB port |
6 |
1 Console interface |
7 |
1 X USB PORT |
8 |
grounding screws illustrate: use the grounding cable together. |
9 |

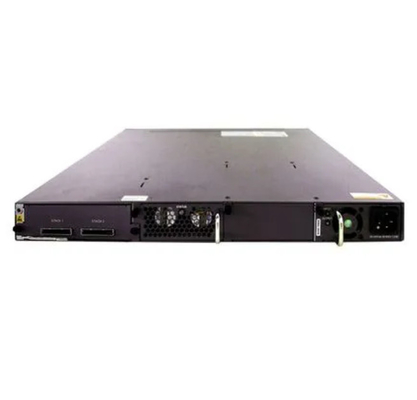

rear card slot 1 |
10 |
rear card slot 2 |
11 |
serial number label illustrate: YOU CAN CHECK THE SERIAL NUMBER AND MAC ADDRESS INFORMATION OF THE SWITCH. |
12 |
power module slot 2 illustrate: supported power modules: |
13 |
power module slot 1 illustrate: supported power modules: |
- |
- |
interface description
10/100/1000BASE-T ETHERNET ELECTRICAL INTERFACE
10/100/1000BASE-T Ethernet electrical interface is mainly used for the reception and transmission of 100 megabit/100 megabit/gigabit services, and requires the use of network cables.
attribute |
description |
---|---|
connector type |
RJ45 |
complies with standards |
IEEE802.3,IEEE802.3u,IEEE802.3ab |
working mode |
10/100/1000Mbit/s adaptive |
maximum effective distance |
100m |
Combo interface
The Combo interface, also known as the photoelectric multiplexing interface, is composed of two Ethernet ports (an optical port and an electrical port) on the device panel. Combo port and its corresponding optical port is logically photoelectric multiplexed, the user can choose one of them according to the actual networking situation, but the two can not work at the same time.
NOTE:
By default, the Combo interface mode is Auto, which means that the interface mode is automatically selected, and the interface detects whether an optical module has been plugged in:
if neither the radio nor the optical port is inserted into the network cable and optical module, the time is taken as the priority, that is, if the electrical port is inserted first, the electric port is preferred as the data exchange interface, and if the optical port is inserted first, the optical interface is preferred as the data exchange interface.
IF THE ELECTRICAL PORT HAS BEEN PLUGGED INTO THE NETWORK CABLE AND THE INTERFACE IS IN THE UP STATE, WHEN THE OPTICAL PORT IS INSERTED INTO THE OPTICAL MODULE, THE ELECTRICAL PORT MODE IS STILL SELECTED.
IF THE OPTICAL INTERFACE HAS BEEN PLUGGED INTO THE OPTICAL MODULE, REGARDLESS OF WHETHER THE INTERFACE IS IN THE UP STATE OR NOT, WHEN THE ELECTRICAL PORT IS PLUGGED INTO THE NETWORK CABLE, THE OPTICAL PORT MODE IS STILL SELECTED.
if both the electrical port and the optical port have been plugged into the network cable, optical module, optical fiber, and the optical interface mode will be selected after the device is restarted.
manual configuration can be performed via the combo-port command for electrical or optical port mode.
10GE SFP+ ETHERNET OPTICAL INTERFACE
The 10GE SFP+ Ethernet optical interface supports adaptive 1000M, which is mainly used for receiving and transmitting Gigabit/10 Gigabit services.
attribute |
description |
---|---|
connector type |
LC/PC |
optical interface properties |
determined by the selected optical module |
complies with standards |
IEEE802.3ae |
working mode |
10GE/GE ADAPTIVE |
Console interface
attribute |
description |
---|---|
connector type |
RJ45 |
complies with standards |
RS-232 |
working mode |
Duplex UART (Universal Asynchronous Receiver/Transmitter) |
baud rate |
9600bit/s,19200bit/s,38400bit/s,57600bit/s,115200bit/s the default is 9600bit/s |
Mini USB port
The Mini USB interface is used to connect to the console for field configuration functions. When the Mini USB interface and the Console interface are used at the same time, only the Mini USB interface takes effect.
ETH MANAGEMENT INTERFACE
The ETH management interface is used to configure the network port connection of the terminal or network management workstation, and to build a field or remote configuration environment, and the network cable is required. In the BootROM menu, you can select the ETH management interface to load the software version package, which is faster than the console interface. How to use the ETH management interface can be found in the Configuration Guide - Basic Configuration manual.
attribute |
description |
---|---|
connector type |
RJ45 |
complies with standards |
IEEE802.3 |
working mode |
10/100Mbit/s adaptive |
maximum effective distance |
100m |
USB PORT
THE USB INTERFACE IS USED WITH A USB STICK AND CAN BE USED FOR OPENING, TRANSFERRING CONFIGURATION FILES, UPGRADING FILES, ETC. THE USB FLASH DRIVE NEEDS TO SUPPORT THE USB 2.0 STANDARD.
NOTE:
DUE TO THE DIFFERENCE IN THE COMPATIBILITY AND DRIVE OF THE U DISK MODEL OF DIFFERENT MANUFACTURERS, IF THE U DISK CANNOT BE USED, PLEASE TRY TO REPLACE THE U DISK OF THE MAINSTREAM MANUFACTURER, THE SWITCH SUPPORTS A U DISK WITH A CAPACITY OF NO MORE THAN 128GB.
power configuration
power supply 1 |
power supply 2 |
The actual available power of PoE |
number of supported interfaces (full supply) |
---|---|---|---|
580W |
– |
369.6W |
|
580W |
580W |
739.2W |
|
NOTE:
WHEN THE POWER SUPPLY IS DUAL-POWERED, THE POWER SUPPLY IS PROVIDED BY REDUNDANT BACKUP MODE FOR THE HOST AND THE LOAD SHARING METHOD IS USED FOR PD EQUIPMENT.
specifications
specification |
parameter |
---|---|
MEMORY (RAM) |
512MB |
Flash |
200MB |
MTBF (YEARS) |
51.28 WITH 8*GE OPTICAL CARD, 50.31 WITH 8*GE ELECTRIC CARD, AND 48.25 WITH 2*10GE CARD. |
MTTR AVERAGE REPAIR TIME (HOURS) |
2 |
usability |
greater than 0.99999 |
service port lightning protection specifications |
Common mode ± 1kV |
lightning protection specifications of the power port |
The differential mode ± 6kV and the common mode ± 6kV |
dimensions (w× d× h) |
442.0mm×420.0mm×44.4mm |
weight |
|
stacking ports |
4*10GE SFP+ INTERFACE OR 2*10GE SFP+ REAR CARD INTERFACE |
RPS |
not supported |
PoE |
backing |
rated voltage range |
AC input: 100V AC~240V AC; 50/60Hz |
maximum voltage range |
AC input: 90V AC~264V AC; 47Hz~63Hz |
Maximum power consumption (100% flow, poE full load, fan full speed) |
|
operating temperature range |
0°C~50°C (0m~1800m altitude) illustrate: 1800m ~ 5000m, the maximum temperature specification is reduced by 1 °C for every 220m increase in altitude. |
storage temperature range |
-40°C~+70°C |
AMBIENT NOISE (27°C, ACOUSTIC POWER) |
Less than 59.7dB(A) |
relative humidity range |
5% RH TO 95% RH, NON-CONDENSING |
operating altitude |
0m~5000m |
product certification |
|
part number |
02354038 |
