Product Details:
|
| Product Name: | S5731-S48T4X | Product Type: | Gigabit Ethernet Switch |
|---|---|---|---|
| Number Of Ports: | 48 | Port Description: | 48 10/100/1000Base-T Ethernet Ports, 4 10 Gigabit SFP+ |
| Maximum AC Voltage Range: | 90-290V AC; 45-65Hz | Maximum DC Voltage Range: | 190-290V DC |
| Rated Voltage Range: | 100-240V AC; 50/60Hz | Product Size: | 442*420*43.6mm |
| High Light: | S5731 S48T4X Network Core Switch,S5731 S48T4X Optical Port Switch,S5731 S48T4X |
||

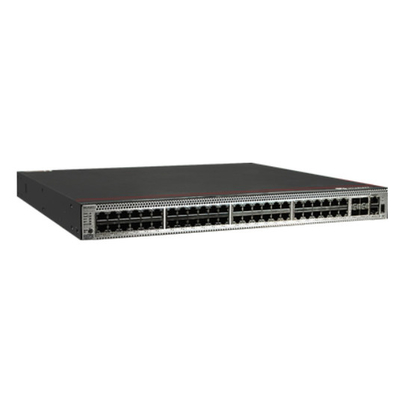

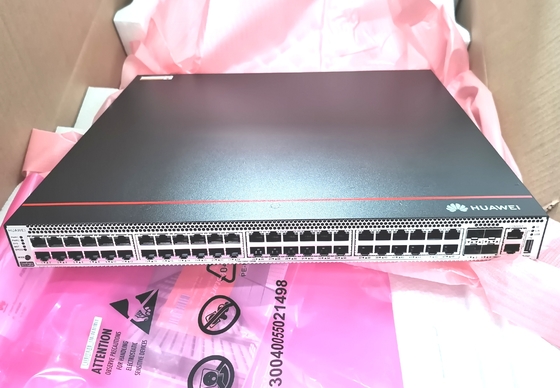

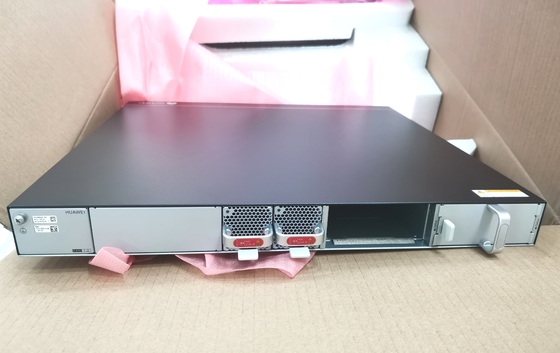

HuaWei S5731 S48T4X Network Core Switch 40 Gigabit Optical Port
HuaWei CloudEngine S5731-S48T4X 48 Gigabit electrical port 40 Gigabit optical port network management core switch
CloudEngine S5731S-S series switches overviews
The CloudEngine S5731S-S series switch is a standard Gigabit access switch for the distribution market newly developed by HW. It can provide full Gigabit electrical port access and fixed 10 Gigabit uplink ports.
CloudEngine S5731-S series switches are a new generation of gigabit access switches launched by HW. Based on HW’s unified VRP software platform, it has enhanced three-layer features, simple operation and maintenance, intelligent iStack stacking, and flexible Ethernet networking. Features such as mature IPv6 features are widely used in multiple application scenarios such as enterprise campus access and convergence, and data center access.
Specifications of S5731-S48T4X
| Product Type | Gigabit Ethernet Switch |
| Packet forwarding rate | 132/166Mpps |
| Number of ports | 48 |
| Port description | 48 10/100/1000Base-T Ethernet ports, 4 10 Gigabit SFP+ |
| Power supply voltage |
Rated voltage range: 100-240V AC; 50/60Hz Maximum AC voltage range: 90-290V AC; 45-65Hz Maximum DC voltage range: 190-290V DC |
| Product size | 442*420*43.6mm |
| Environmental standards |
Working temperature: 0-1800 m: -5°C~45°C 1800-5000 m: The temperature specification decreases by 1°C for every 220m increase in altitude Relative humidity: 5%-95% (no condensation) |
| Other features | Cooling method: air cooling, intelligent speed regulation, pluggable fan |
| VLAN |
Support 4K VLANs Support Guest VLAN, Voice VLAN Support GVRP protocol Support MUX VLAN function Support VLAN based on MAC/protocol/IP subnet/policy/port Support 1:1 and N:1 VLAN Mapping function |
| QOS |
Supports rate limiting on the inbound and outbound directions of the port Support message redirection Support port-based traffic monitoring, support dual-speed three-color CAR function Support 8 queues per port Support DRR, SP, DRR+SP queue scheduling algorithm Support WRED Support 802.1p and DSCP priority re-marking of packets Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing packet filtering based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP protocol source/destination port number, protocol, and VLAN Features Supports queue-based rate limiting and port shaping functions |
