Product Details:
|
| Model Number: | CR5D0L2XFA70 | Description: | 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P50-A,Occupy One Sub-slot) |
|---|---|---|---|
| Net Dimension(D*W*H Mm): | 200*169*18mm | Typic Power(W): | 18.4W |
| Product Series: | NE80E(Enterprise Network) | Attributes: | Hardware |
| Warranty: | 1 Year | Product Family: | Router |
| High Light: | CR5D0L2XFA70 GPON Optical Line Terminal,GPON Optical Line Terminal,CR5D0L2XFA70 |
||

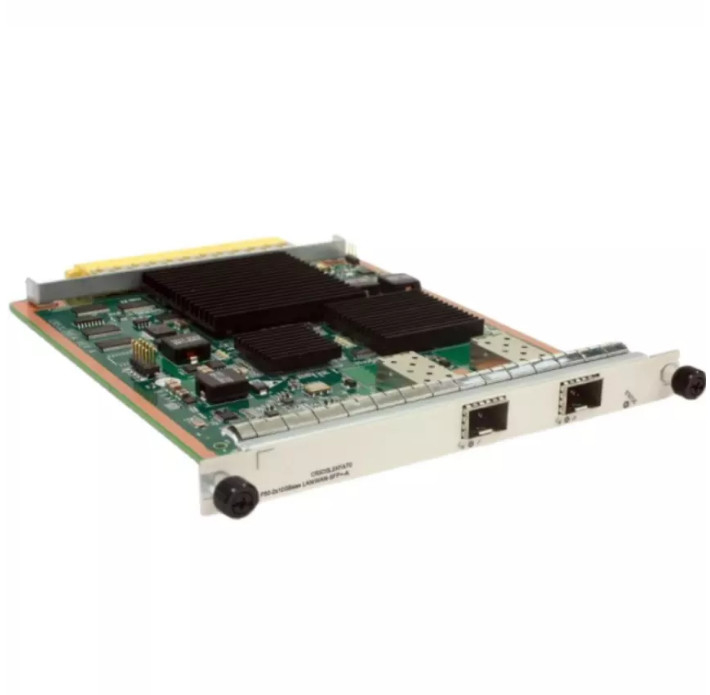

CR5D0L2XFA70 GPON Optical Line Terminal 2 Port 10GBase SFP Flexible Card
CR5D0L2XFA70 New HuaWei NE40E-X8 2-port 10GBase LAN/WAN-SFP+ flexible card P50-A(P50-A Occupy one sub-slot)
HuaWei CR5D0L2XFA70 Board is 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P50-A.Occupy one sub-slot) for NE40 Series Rourer.
HuaWei CR5D0L2XFA70 Board is based on a 2T hardware platform design, a large-capacity 2T routing line card, a mature wide-area SDN solution, a programmable NP chip and a VRP software platform, and features high performance, low power consumption, and evolution. The leading SRv6 technology realizes the intelligent connection of the network, and can be applied to the core nodes of enterprise WAN, large enterprise access nodes, campus interconnection and convergence nodes, and various large IDC network outlets.
NE40E supports innovative IP hard pipe technology to provide enterprises with high-quality IP dedicated line solutions. Strictly isolate soft and hard pipes through hardware to ensure that the bandwidth of hard pipes is not preempted. Realize rigid pipes similar to SDH. At the same time, IP FPM technology is used to realize flow-level service quality perception. Graphical displays are provided through network management and uTraffic to monitor business operation status in real time. , Realize the controllable, manageable and visible IP dedicated line business.
| Brand | HW |
| Part Number | 03030NSK |
| Model | CR5D0L2XFA70 |
| Description | 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P50-A,Occupy one sub-slot) |
| Attributes | Hardware |
| Category | Line Card |
| Product Line | Networking |
| Product Family | Router |
| Overview | Line Card |
| Sub Product Family | NetEngine NE80E Router |
| Product Series | NE80E(Enterprise Network) |
| UOM | PCS |
| Net Dimension(D*W*H mm) | 200*169*18 |
| Typic Power(W) | 18.4 |
| 03030LYU | CR5D0EEGFE70 | 20-port 1000Base-X-SFP flexible card E (P40-E) |
| 3053421 | CR5D00L8XX70 | 8-port 10GBase LAN/WAN-XFP integrated line processing board (LPUI-41) |
| 3053422 | CR5D00L4XX71 | 4-port 10GBase LAN/WAN-XFP integrated line processing board (LPUI-41) |
| 3053542 | CR5D0L4XXA70 | 4-port 10GBase LAN/WAN-XFP integrated line processing board (LPUI-41, support 1588v2) |
| 3053423 | CR5D00EMGF70 | 48-port 100/1000Base-X-SFP integrated line processing board (LPUI-41) |
| 3053543 | CR5D0EKGFA70 | 40-port 100/1000Base-X-SFP integrated line processing board (LPUI-41, support 1588v2) |
| 3053420 | CR5DL2XEFG70 | 2-port 10GBase LAN/WAN-XFP and 24-port 100/1000Base-X-SFP integrated line processing board (LPUI-41) |
| 3053544 | CR5DL2XEEG7A | 2-port 10GBase LAN/WAN-XFP and 20-port 100/1000Base-X-SFP integrated line processing board (LPUI-41, support 1588v2) |
| 3054447 | CR5DLPUF5070 | Flexible card line processing board (LPUF-50, 4 sub-slots) |
| 03030NSK | CR5D0L2XFA70 | 2-port 10GBase LAN/WAN-SFP+ flexible card A (P50-A, occupying a sub-slot) |
| 03030PTB | CR5D00C8CF71 | 8-Port Channelized STM-1c POS-SFP Flexible Card (P50) |
| 03030PVG | CR5D00C4CF70 | 4-Port Channelized STM-1c POS-SFP Flexible Card (P50) |
| 3054393 | CR5DLPUF5170 | Flexible card line processing board (LPUF-51,2 sub-slots) |
| 03030QKN | CR5D0EEGEA70 | 20-port 10/100/1000Base-RJ45 flexible card A (P51-A) |
| 03030PMC | CR5D0L5XFA70 | 5-port 10GBase LAN/WAN-SFP+ flexible card A (P51-A, occupying 2 sub-slots) |
| 03030PME | CR5D0L2XFA71 | 2-port 10GBase LAN/WAN-SFP+ flexible card A (P51-A) |
| 03030PMA | CR5D0EFGFA70 | 24-port 100/1000Base-X-SFP flexible card A (P51-A) |
| 03030PYG | CR5D0L5XFE70 | 5-port 10GBase LAN/WAN-SFP+ flexible card E (P51-E, occupying 2 sub-slots) |
| 03030PYF | CR5D0L2XFE70 | 2-port 10GBase LAN/WAN-SFP+ flexible card E(P51-E) |
| 03030PYE | CR5D0EFGFE70 | 24-port 1000Base-X-SFP flexible card E (P51-E) |
| 3054395 | CR5D0L5XFA71 | 5-port 10GBase LAN/WAN-SFP+ integrated line processing board (LPUI-51) |
| 3054397 | CR5D0L4XFA70 | 4-port 10GBase LAN/WAN-SFP+ integrated line processing board (LPUI-51) |
| 3054412 | CR5DL2XEFG7A | 2-port 10GBase LAN/WAN-SFP+ and 24-port 100/1000Base-X-SFP integrated line processing board (LPUI-51) |
| 3054400 | CR5D0EMGFA70 | 48-port 100/1000Base-X-SFP integrated line processing board (LPUI-51) |
| 3054520 | CR5D0L5XFA7L | 5-port 10GBase LAN/WAN-SFP+ integrated line processing board L (LPUI-51-L) |
| 3054528 | CR5D0EMGFA7L | 48-port 100/1000Base-X-SFP integrated line processing board L (LPUI-51-L) |
