Product Details:
|
| Product Code: | RB922UAGS-5HPacD | Architecture: | MIPSBE |
|---|---|---|---|
| Dimensions: | 105x105mm | Operating System: | RouterOS |
| Max Power Consumption: | 17 W | DC Jack Input Voltage: | 8-30 V |
| PoE In Input Voltage: | 8-30 V | Warranty: | 1 Year |
| High Light: | Mikrotik Wireless Bridge Motherboard,RB922UAGS 5HPacD Wireless Bridge Motherboard,RB922UAGS 5HPacD |
||

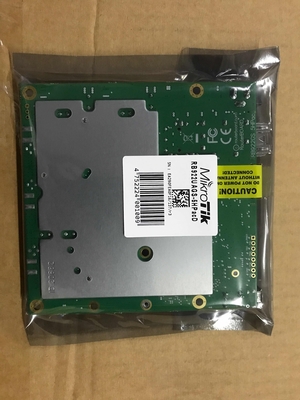

Mikrotik Wireless Bridge Motherboard RB922UAGS 5HPacD 802.11ac Router
Mikrotik wireless bridge motherboard RB922UAGS-5HPacD 802.11ac RouterOS L4 high power 1xminiPCI-e
Descriptions
RB922UAGS-5HPacD720Mhz CPU, 128MB RAM, 1xGigabit Ethernet, 1xSFP cage, 1xminiPCI-e, 1xSIM, onboard 802.11ac Two Chain 5Ghz wireless, RouterOS L4

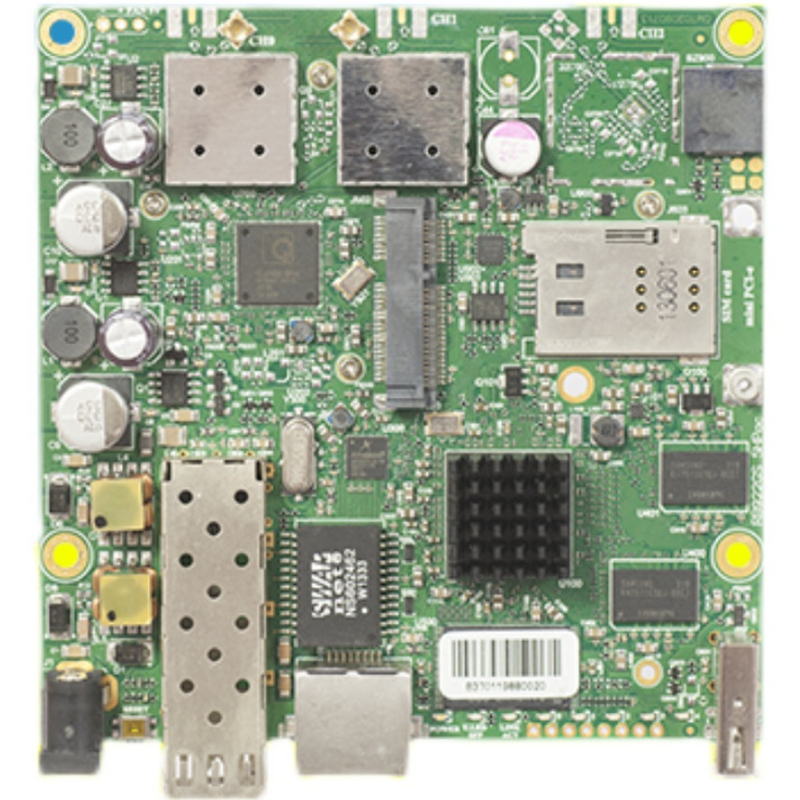

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.
* RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
* RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
| Details | |
|---|---|
| Product code | RB922UAGS-5HPacD |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 105x105mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 17 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Wireless 5 GHz chip model | QCA9882 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
| Details | |
|---|---|
| SFP DDMI | yes |
| SFP ports | 1 |
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Details | |
|---|---|
| Certification | CE, CCC, CE |
| IP | IP00 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 27 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
