H3C SMB S5008PV5 EI Fiber Optic Switch Full Gigabit 8 Port Network Switch

H3C SMB S5008PV5 EI  Fiber Optic Switch Full Gigabit 8 Port Network Switch
H3C SMB S5008PV5 EI  Fiber Optic Switch Full Gigabit 8 Port Network Switch H3C SMB S5008PV5 EI  Fiber Optic Switch Full Gigabit 8 Port Network Switch

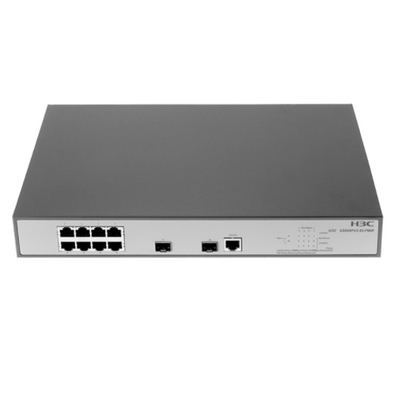

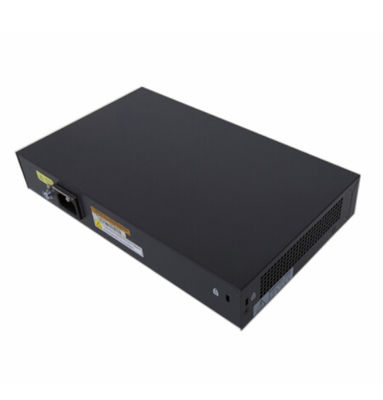

Large Image :  H3C SMB S5008PV5 EI Fiber Optic Switch Full Gigabit 8 Port Network Switch

Product Details:
Place of Origin: China, Guangdong
Brand Name: H3C
Certification: FCC,CCC,CE
Model Number: SMB-S5008PV5-EI
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

H3C SMB S5008PV5 EI Fiber Optic Switch Full Gigabit 8 Port Network Switch

Description
Model Number: SMB-S5008PV5-EI Swap Capacity: 256Gbps
Package Forwarding Rate: 30Mpps Manage The Port: 1 Console Mouth
Fixed Port: 8 X 10/100/1000Base-T Ethernet Port 2 X 1000 Base-X SFP Light Port Power Consumption: ≤ 12W
Weight (full Configuration): ≤ 1kg Warranty: 1 Year
High Light:

SMB S5008PV5 EI Fiber Optic Switch

,

SMB S5008PV5 EI 8 Port Network Switch

,

SMB S5008PV5 EI

H3C SMB S5008PV5 EI Fiber Optic Switch Full Gigabit 8 Port Network Switch



H3C SMB-S5008PV5-EI full Gigabit 8-port network switch + 2 optical port WEB management instead of PV3

Overview

The H3C S5000PV5-EI series Ethernet switch is a new generation of high-performance full Gigabit managed switch products launched by H3C based on the industry’s leading comware V7 platform for the small and medium-sized business market (SMB market). It supports IRF2 stacking and provides complete secure connections. Entry strategy and stronger network management and maintenance ease of use; it can be widely used in network construction scenarios in the government, small and medium-sized enterprises, schools, hotels and other industries.

Specifications

Attribute S5008PV5-EI S5016PV5-EI S5008PV5-EI-HPWR
Swap capacity 256Gbps 256Gbps 256Gbps
Package forwarding rate 30Mpps 42Mpps 42Mpps
Manage the port 1 Console mouth
Fixed port

8 x 10/100/1000Base-T Ethernet port

2 x 1000 Base-X SFP light port

16x10/100/1000 Base-T Ethernet port

4 x 1000 Base-X SFP light port

8 x 10/100/1000Base-T Ethernet port

2 x 1000 Base-X SFP light port

The mouth property

Support half-duplex, full-duplex, self-negotiated work mode

MDI/MDI-X support

Ethernet functionality

Support for IRF2 (up to 9 stacks)

LLDP support

Static MAC configuration

Supports MAC address learning limit (MAC address depth maximum support 8K)

Port mirroring and streaming are supported

Port aggregation is supported (up to 8 ports for aggregation group ports and up to 24 aggregation groups)

Port isolation is supported

STP/RSTP/MSTP is supported

Supports IEEE 802.3ad (dynamic link aggregation), static port aggregation

VLAN

Support for 802.1Q (up to 4K VLANs)

Protocol-based VLANs are supported

MAC-based VLANs are supported

QUEST VLAN is supported

VLAN mapping is supported

MVRP support

IP routing Static routing is supported
DHCP

DHCP Relay is supported

DHCP Client is supported

DHCP Snooping is supported

Multicast

Support for IGMP V1/V2/V3 Snooping

PIM Snooping is supported

Support for multicast VLANs

Support for IPV6 multicast settings

QoS

Supports SP/WRR/SP-WRR queue scheduling

Supports 802.1p, DSCP priority mapping

Port speed limits are supported

ACL

· Supports two-, three-, and four-tier ACLs

Support for IPv4, IPv6 ACL

· VLAN ACL is supported

IPv6

Support for IPv6 static routing, dual protocol stack

Support for DHCPv6 Client, DHCPv6 Snooping

Support for ND, PMTU

Supports IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution

reliability

Ethernet OAM is supported

DLDP support

Smart Link is supported

Support for Monitor Link

security

Supports user rating management and password protection

Supports SSH and provides a secure encryption channel for users to log on

FTP login and password mechanisms that support controlled IP addresses

Supports the prevention of ARP, unknown multicast messages, broadcast messages, unknown unicast messages, TTL-1 messages, protocol messages and other attack functions

MAC address restrictions are supported

Supports IP-MAC-PORT binding

Support for IEEE 802.1x

Support for Radius, support for AAA

Support for safety net management SNMPv3

Supports broadcast message suppression

System management

Supports Console/AUX Modem/Telnet/SSH command line configuration

Supports download management on FTP, TFTP, Xmodem, SFTP files

SNMP V1/V2c/V3 support

Sflow support

Support for NQA

NTP clock support

Support system logs

Ambient temperature Operating ambient temperature: -5C to 45C
Ambient humidity

Operating ambient humidity: 10% to 95% (non-condensation)

Storage environment humidity: 10% to 95% (non-condensation)

environmental protection China RoHs,,EEE
power consumption ≤ 12W ≤ 19W ≤ 23W MAX:150W(POE:125W)
Weight (full configuration) ≤ 1kg ≤ 2kg ≤ 2.5kg ≤ 1.5kg
Input voltage AC: Rated voltage range: 100V to 240V AC, 50/60Hz , maximum voltage range: 90V to 264V AC, 47 to 63Hz
Form factor (long× wide × high) (in mm) 264×162×44 330×230×44 440×160×44 330×162×44





H3C SMB S5008PV5 EI  Fiber Optic Switch Full Gigabit 8 Port Network Switch 0H3C SMB S5008PV5 EI  Fiber Optic Switch Full Gigabit 8 Port Network Switch 1
