Product Details:
|
| Model Number: | AF60-LR | Dimensions: | 413 X 360 Mm (16.3 X 14.2") |
|---|---|---|---|
| Weight: | Without Mount: 1.5 Kg (3.3 Lb) With Mount: 2.7 Kg (6 Lb) | Max. Power Consumption: | 18W |
| Power Supply: | 48VDC, 0.65A Gigabit PoE Adapter (included) | Maximum Throughput: | 1.95 Gbps |
| Maximum Range: | 12+ Km | Warranty: | 1 Year |
| High Light: | AF60 LR Outdoor Wireless Surveillance System,AF60 LR Outdoor Wireless Bridge,AF60 LR Wireless Outdoor Security Cameras |
||

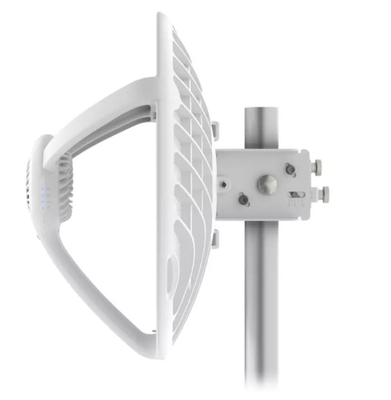

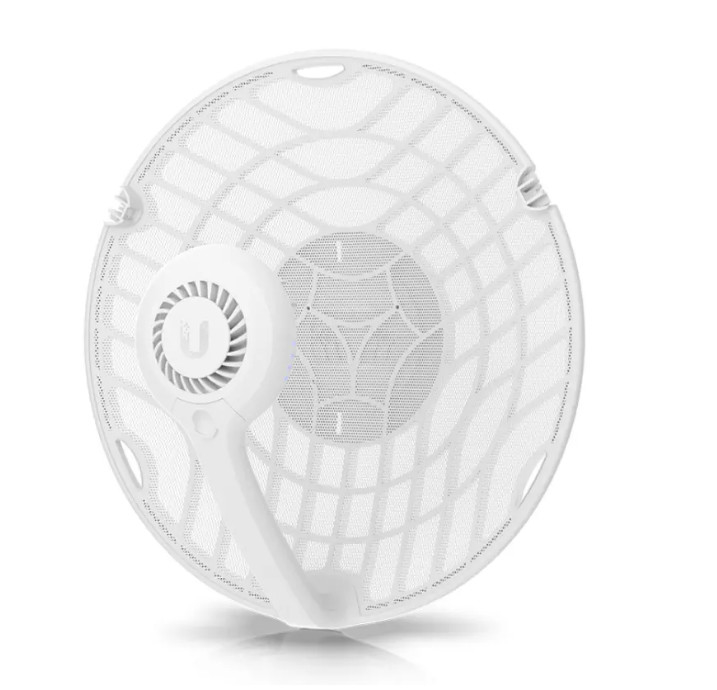

AF60 LR 60GHz Outdoor Wireless Surveillance System Wireless Bridge
UBNT airFiber AF60-LR 60GHz long-distance gigabit high-throughput wireless bridge
Overviews
airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances.
AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.
Includes a built-in Bt management radio for easy setup.
Features
Specifications
| Mechanical | |
|---|---|
| Dimensions | 413 x 360 mm (16.3 x 14.2") |
| Weight | Without mount: 1.5 kg (3.3 lb) With mount: 2.7 kg (6 lb) |
| Enclosure materials | Aluminum, UV stabilized polycarbonate |
| Mount material | Galvanized steel |
| Mounting | Precision Alignment Kit (included) Pole compatibility: Ø25.4-76.2 mm (Ø1-3") |
| Wind loading | 420 N at 200 km/h (94.4 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |
| Networking interface | GbE RJ45 port |
| RF Connections | Internal |
| Max. Power Consumption | 18W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8- ) |
| Power supply | 48VDC, 0.65A gigabit PoE adapter (included) |
| Supported Voltage Range | 48VDC ± 10% |
| ESD/EMP Protection | Air/Contact: ± 24kV |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, CCC, CE |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP™ console Blue: connected to UISP console |
| Ethernet | Flashing blue: ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
| Software | |
| OS | airOS® |
| Operating mode | PtP only |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol, Wave technology |
| Network | Bridge mode |
| Services | UISP, ping watchdog, NTP client, device discovery |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Software management | Bt management for easy setup over UISP app WEB UI |
| Minimum software requirements | Any modern WEB browser/iOS or Android based smartphone |
| System | |
| Maximum throughput | 1.95 Gbps |
| Maximum range | 12+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating Frequency | 57 to 71 Ghz Depends on regulatory region. |
| GPS | Yes |
| Channel Bandwidth | 2160, 1080 MHz |
