Product Details:
|
| Model Number: | CR53-P10-8xPOS/STM4-SFP | Description: | 8-port OC-12c/STM-4c POS-SFP Flexible Card |
|---|---|---|---|
| Weight (without Packaging Materials): | 0.5 Kg | TYPICAL POWER CONSUMPTION: | 22.4 W |
| Typical Heat Dissipation: | 72.68 BTU/hour | Storage Temperature: | -40°C To +70°C(-40°F To 158°F) |
| Dimensions (w X D X H, Without Packaging): | 169 Mm X 189.9 Mm X 18.4 Mm | Warranty: | 1 Year |
| High Light: | GPON Optical Line Terminal,FCC GPON Optical Line Terminal,FCC Router Interface Board |
||
FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board

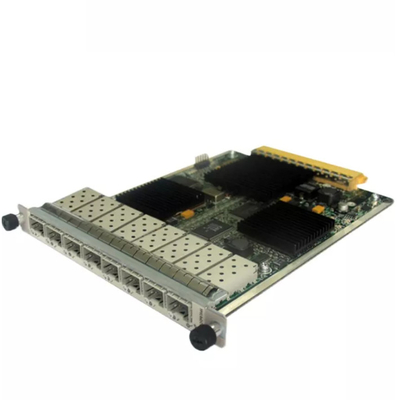

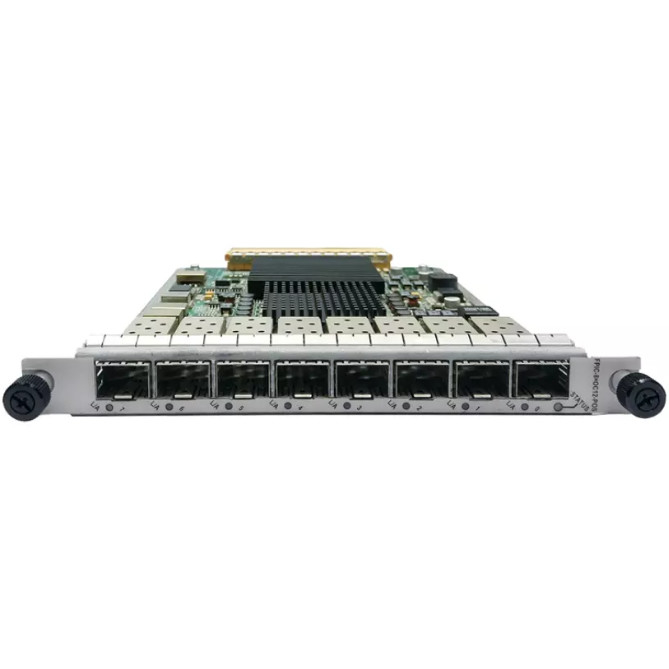

HuaWei router NE40E-X8 series interface board CR53-P10-8xPOS/STM4-SFP (8-port OC-12c/STM-4c POS-SFP flexible card)
Overview
CR53-P10-8xPOS/STM4-SFP Basic Information
| Attribute | Description |
|---|---|
| Description | 8-port OC-12c/STM-4c POS-SFP flexible card |
| Part number | 03030JUB |
| Model | CR53-P10-8xPOS/STM4-SFP |
| Veneer category | Flexible card insertion |
| Silk screen printing | FPIC-8xOC12-POS |
| Led silkscreen | The name of the led | Led color | Led status | Status description |
|---|---|---|---|---|
| L/A | Port connection/data sending and receiving status led | Green | Solid on | Indicates that the link is already connected. |
| Green | Flashing | Indicates that there is data sent and received. | ||
| - | Always extinguished | Indicates that the link is not connected. | ||
| STATUS | STATUS INDICATOR | Green | Flash, flash twice per second (2Hz) | Indicates that the device is not yet registered while booting. |
| Green | Slow flashing, flashing every two seconds (0.5Hz) | Indicates that the system is in a healthy state. |
| The interface name | Connector type | Description | Parts that can be used |
|---|---|---|---|
| 0~7 | SFP | 622M POS OPTICAL SIGNAL INPUT AND OUTPUT INTERFACE | 622Mbps eSFP optical module |
| Attribute | Description |
|---|---|
| Working mode | Full duplex |
| Complies with standards | IEEE 802.3 |
| Support frame formats | PPP,HDLC |
| Functions and features | Description |
|---|---|
| Basic functionality | SUPPORTS WIRE-SPEED DELIVERY AND RECEIVING OF 8 622M POS PORTS. |
| Reliability and availability | Hot-swappable support. |
| Whether hashing is supported | Not |
| Whether port rate adaptation is supported | Not |
| Link protocol | PPP,HDLC |
| Project | Description |
|---|---|
| Dimensions (w x d x h, without packaging) [mm] | 169 mm x 189.9 mm x 18.4 mm |
| Weight (without packaging materials) [kg] | 0.5 kg |
| TYPICAL POWER CONSUMPTION [W] | 22.4 W |
| Typical Heat Dissipation [BTU/hour] | 72.68 BTU/hour |
| LONG-TERM OPERATING AMBIENT TEMPERATURE [°C] | 0°C~45°C |
| SHORT-TERM OPERATING AMBIENT TEMPERATURE [°C] | -5°C~55°C |
