CCMB PAMB ONU Equipment HuaMei MA5818 FTTC Gpon Olt Device

CCMB PAMB ONU Equipment HuaMei MA5818 FTTC Gpon Olt Device
CCMB PAMB ONU Equipment HuaMei MA5818 FTTC Gpon Olt Device CCMB PAMB ONU Equipment HuaMei MA5818 FTTC Gpon Olt Device CCMB PAMB ONU Equipment HuaMei MA5818 FTTC Gpon Olt Device CCMB PAMB ONU Equipment HuaMei MA5818 FTTC Gpon Olt Device

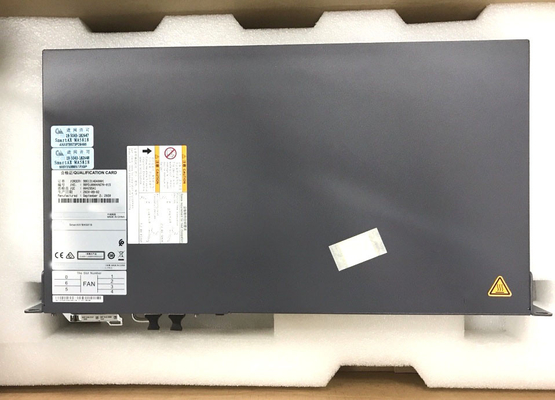

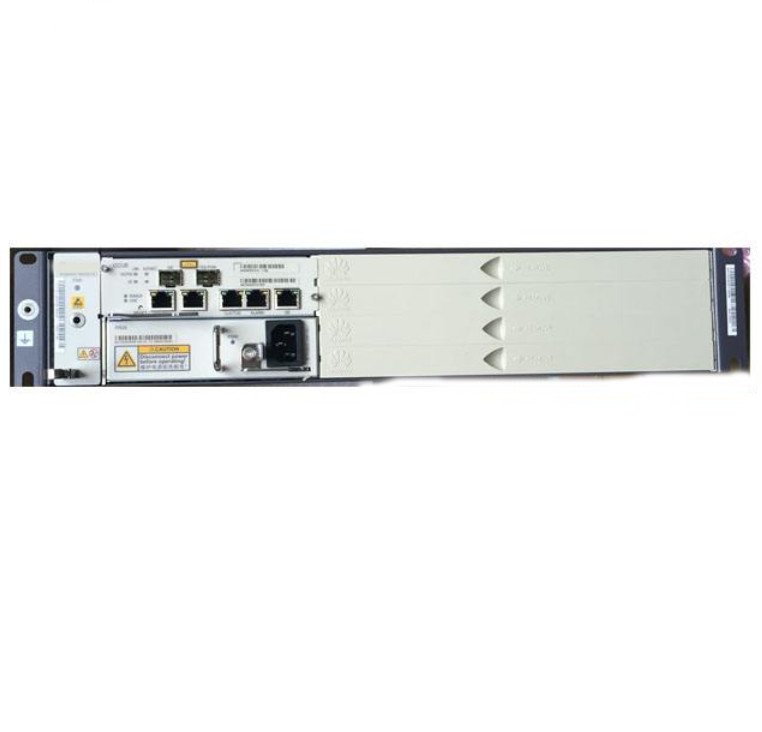

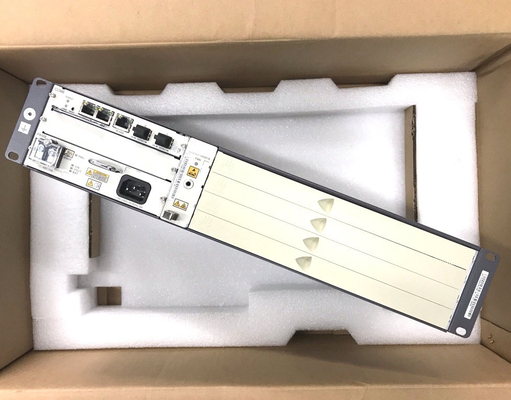

Large Image :  CCMB PAMB ONU Equipment HuaMei MA5818 FTTC Gpon Olt Device

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: MA5818
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

CCMB PAMB ONU Equipment HuaMei MA5818 FTTC Gpon Olt Device

Model Number: MA5818 GPON: ITU G.984-compliance ITU G.984-compliance
Dimensions: 482.6mm×245mm×88.1mm Weight: 4.8 Kg (empty Chassis) 7.2 Kg (full Configuration)
Operating Temperature: 40oC To 65oC; Startup At -25oC Humidity: 5% To 95% (non-condensing)
Lightning Protection Capability: GE/FE: 6 KV POTS: 4kV Warranty: 1 Year
High Light:



4kV ONU Equipment


FTTC Gpon Olt Device

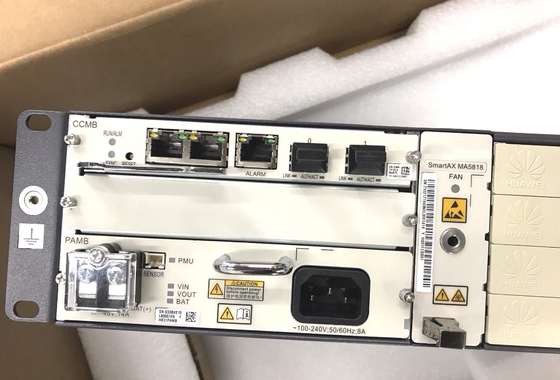

HuaMei MA5818 is connected to ONU equipment and the whole machine is configured with CCMB+PAMB


Product description

SmartAX MA5818 multi-service access device (hereinafter referred to as MA5818) is a 2U high, 19-inch wide flexible plug-in product that provides ultra-high bandwidth access and flexible capacity expansion.


SmartAX MA5818 provides ADSL2+, VDSL2, SHDSL, POTS, ISDN, FE/GE user interface;

Provide 10G GPON (asymmetric), GPON, 10G EPON (symmetric and asymmetric) and EPON uplink, which can meet the application of FTTB (Fiber To The Building), FTTC (Fiber To The Curb) and private line access services in various scenarios;


It can also be used as Mini DSLAM and MSAN to provide traditional voice, data and video services. MA5818 products are mainly used in FTTB (C) networking, enterprise private line access networking and Mini DSLAM/MSAN networking.



1. Ultra-High Bandwidth

• Pioneers the use of G.fast and SuperVector, which are innovative high-bandwidth access technologies that use wider spectrums to meet high bandwidth requirements on copper lines.

• G.fast allows operators to define upstream and downstream rates, and use existing copper resources to support new services such as HD video, remote home surveillance, and city surveillance.

2. Flexible Capacity Expansion

• Provides separate VP slots to support smooth capacity expansion.

• Adopts the innovative G.fast board-insertion design, enabling on-demand G.fast deployment.

3. Fast deployment

• Maximizes the use of existing copper resources to meet future bandwidth demands and avoid the difficulty of routing fibers to homes.

• G.fast is compatible with VDSL2, allowing live-network users to be smoothly upgraded. Moreover, G.fast lines consume less power than VDSL2 lines.

4. Easy Maintenance and Management

• Supports remote software commissioning, offline deployment, and plug and play (PnP).

• Supports remote fault locating, troubleshooting, and batch upgrade.

• Supports mature FTTx network management modes, and allows G.fast lines to be diagnosed and tested as xDSL lines.

Technical specifications

SmartAX MA5818
ITU G.984-compliance ITU G.984-compliance
8 T-CONTs 32 T-CONTs
128 GEM ports
4K VLANs, supporting QinQ and stacking VLANs
4K MAC addresses, supporting VMAC
VLAN switching
Conversion from PPPoA to PPPoE and from IPoA to IPoE
802.1p, supporting PQ and WRR flow control, and ACL
SIP and H.248
POTS short-loop design
Compliance with ITU-T G992.1 to G992.5, and T1.413
Annex M
ADSL2+ bonding (2-wire, 4-wire, 6-wire, or 8-wire)
8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles
2-wire VDSL2 bonding
G.SHDSL.Bis, supporting ATM and PTM
EFM bonding (2-wire, 4-wire, 6-wire, or 8-wire)
Maintenance and management
SNMPv1, SNMPv2, and SNMPv3
Telnet and SSHv2
Remote and batch pre-deployment
Remote upgrade and monitoring
IGMPv2 and IGMPv3
IGMP proxy and IGMP snooping
A maximum of 1024 configurable multicast programs in the system
A maximum of 256 multicast users
A maximum of 16 concurrent multicast programs for each user
PPPoE + and DHCP option82
Static and dynamic MAC address binding
Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering
Anti-DoS attack and firewall
SmartAX MA5818
Network-side port
User-side port
The MA5616 provides four slots and the following 10 service boards:
• 24-channel VDSL2 board (17a, over POTS, built-in SPL)
• 24-channel VDSL2 board (17a, over POTS, external SPL)
•24-channel VDSL2 board (17a, over ISDN, external SPL)
•16-channel VDSL2 board (30a, over POTS, built-in SPL)
• 32-channel ADSL2+ board (built-in SPL)
• 32-channel combo board (32 × POTS + 32 × ADSL2+)
• 64-channel POTS board
•32-channel POTS board
• 8-channel ISDN board
•16-channel G.SHDSL board (supporting ATM and PTM)
Operating temperature
-40oC to 65oC; startup at -25oC
5% to 95% (non-condensing)
Heat dissipation mode
Providing fans for heat dissipation. The rotating speed can be automatically adjusted.
Lightning protection capability
GE/FE: 6 kV
POTS: 4 kV
Backup power
Support for 48-V backup power
Support for lead-acid batteries and LiFePO4 batteries
4.8 kg (empty chassis)
7.2 kg (full configuration)
