Product Details:
|
| Product Name: | NPR24 | Output Power:: | >500W |
|---|---|---|---|
| Input Voltage: | 240V | Output Voltage: | 27V |
| Output Current: | 70A | Output Frequency:: | 50/60Hz |
| Efficiency: | >90% | Warranty: | 1 Year |
| High Light: | High Power Communication Power Module,27V60A Communication Power Module,NPR 24 |
||

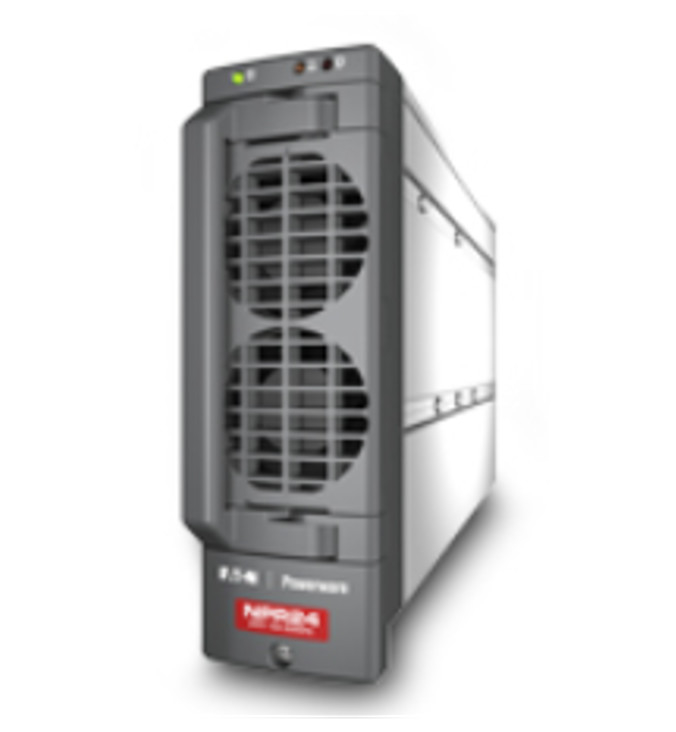

Zhongheng NPR24 27V60A High Power Communication Power Module
Eaton NPR24 Rectifier Description
Eaton's NPR24 series 24V rectifier modules are designed for a wide range of telecom network applications including switching, wireless and long distance transmission.
Leading high frequency switch mode technology combined with high reliability fan cooling makes the NPR24 a flexible, efficient and reliable DC power supply. It is designed to operate at temperatures up to 70ºC (158ºF) and under various AC power conditions.
Eaton's NPR24 series of rectifiers have efficiencies as high as 89% and best performance at typical load currents. These rectifiers also offer two output modes; either constant power or constant current.The NPR24 Rectifier Module is designed for use with the SM60 Series Supervisory Modules to provide years of cost-effective and trouble-free service to your network equipment.
Eaton NPR24 Rectifier Features
* Quick online replacement of rectifiers (hot swap)
* Automatically set from monitoring module
* Intelligent microprocessor control
* High power density
* High efficiency and unity power factor
* Wide AC power condition
* Wide output voltage range
* Constant power or constant current output mode
* Field serviceable air filter
* In line with international standards
Eaton NPR24 Rectifier Specifications
| AC input |
Input voltage range: 90V ~ 300V (single-phase three-wire) Input frequency range: 45Hz～55Hz Power factor: >0.99 (50～***RRC) |
| DC output |
Output voltage range: 43V ~ 57.6V continuously adjustable Efficiency: >90% Voltage regulation accuracy: <±0.5% |
| AC input | Three-phase five-wire system, input voltage range 90 ~ 300V |
| Protection function | It has the function of overload and short circuit protection of incoming line. The power distribution of each rectifier is individually controlled, providing maximum protection against rectifier overload and short circuit. AC input has C-level lightning protection and alarm functions |
| MCB | 16 channels: 63A～100A 24 channels: 1A～63A |
| Fuse | 10 circuits: NH00, 2A～160A 6 circuits: NH01, 25A～250A |
| Battery shunt | 500A and below*2 channels, optional for secondary power off |
| System capacity | 48V/300A, 48V/600A, 24V/900A, 48V/900A |
| Configurable rectifier modules | APR48-3G-48V/1800W, APR48-ES-48V/2000W (*** module), NPR48-3G-48V/2900W, APR24-3G-24V/1440W |
| Configurable monitoring module | SM45 (SC100) |
| Wiring method | Up and down line in and out or according to user requirements |
FAQ
Q: Can we get samples?
A: Yes, but we need to charge a sample fee.
Q: Can you offer better prices? And discount?
A: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.
Q: Can you take care of the goods?
Answer: If you wish, we will organize and arrange all the deliveries to your office.
Q: How about the payment item?
Answer: T/T, PAYPAL, Western Union. Q: Delivery time?
A: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.
Q: How long is your warranty period?
Answer: The warranty period is 12 months. This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
