Mikrotik RB5009UG+S+IN Home / Enterprise ROS Router 9 Port 10G

Mikrotik RB5009UG+S+IN Home / Enterprise ROS Router 9 Port 10G
Mikrotik RB5009UG+S+IN Home / Enterprise ROS Router 9 Port 10G Mikrotik RB5009UG+S+IN Home / Enterprise ROS Router 9 Port 10G

Large Image :  Mikrotik RB5009UG+S+IN Home / Enterprise ROS Router 9 Port 10G

Product Details:
Place of Origin: Guangdong,China
Brand Name: MikroTik
Certification: FCC,CE,CCC
Model Number: RB5009UG+S+IN
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

Mikrotik RB5009UG+S+IN Home / Enterprise ROS Router 9 Port 10G

Product Name: RB5009UG+S+IN Architecture: ARM 64bit
Operating System: RouterOS (v7 Only) Max Power Consumption: 20 W
PoE In Input Voltage: 24-57 V SFP+ Ports: 1
10/100/1000 Ethernet Ports: 7 Warranty: 1 Year
High Light:



Mikrotik RB5009UG+S+IN


Enterprise ROS Router

Mikrotik RB5009UG+S+IN nine-port 10G smart home/enterprise ROS router 1 10G optical port 1 2.5G port

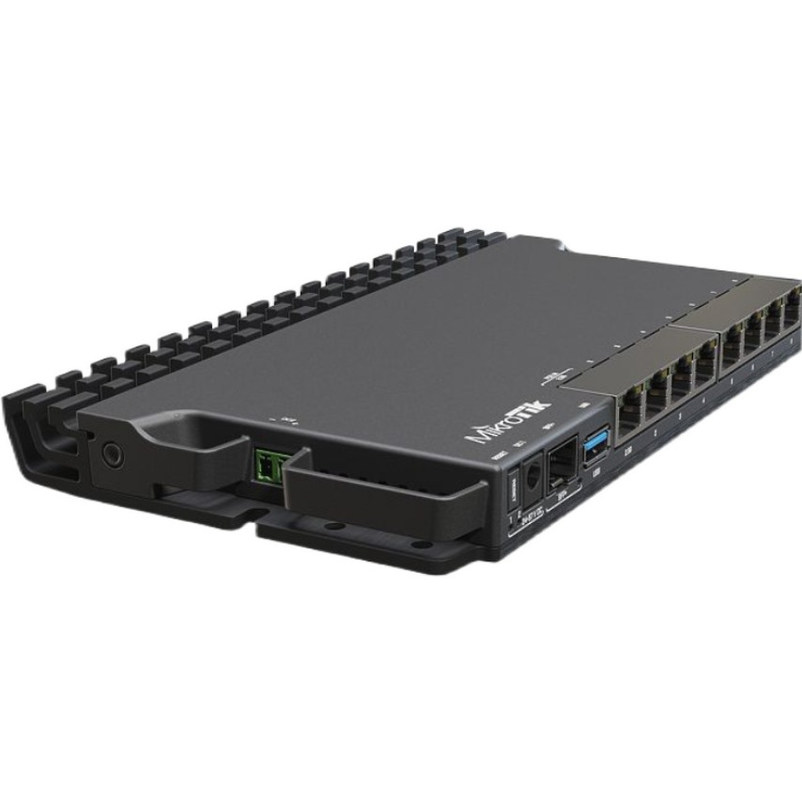

RB5009UG+S+INThe ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

RB5009UG+S+IN can be powered in 3 different ways:

a) PoE-in from Ethernet port #1

b) DC Jack

c) 2-pin terminal on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

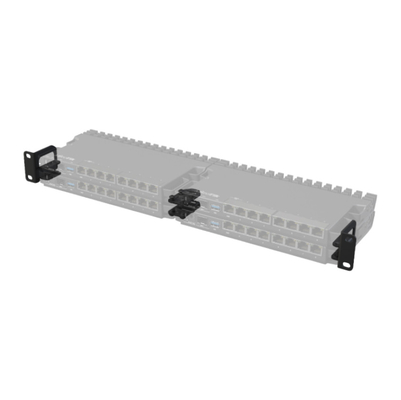

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.


Product code RB5009UG+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
RouterOS license 5
Operating System RouterOS (v7 only)
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C


Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 20 W
Max power consumption without attachments 14 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V


10/100/1000 Ethernet ports 7
Number of 2.5G Ethernet ports 1


SFP+ ports 1


Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1


CPU temperature monitor Yes

Certification & Approvals

Certification CE, FCC, CCC


Mikrotik RB5009UG+S+IN Home / Enterprise ROS Router 9 Port 10G 0

Mikrotik RB5009UG+S+IN Home / Enterprise ROS Router 9 Port 10G 1


Q: What are your advantages?

A: We are selected partners and professional manufacturers in the field of network equipment for more than ten years.

We provide customers with original products at preferential prices.

We have a professional sales team to provide 24-hour free consultation, and we also have a professional technical team and after-sales department.


Q: What is the warranty of your product?

A: One year.


Q: What is the minimum order quantity for your products?

A: One.


Q: What are the payment terms?

A: Pre T/T or paypal or Western Union or Alibaba trade guarantee order.


Q: What is a package?

A: Original packaging. For the outside, we pack it in an empty box to prevent damage during transportation and ensure that you receive the goods in good condition.
