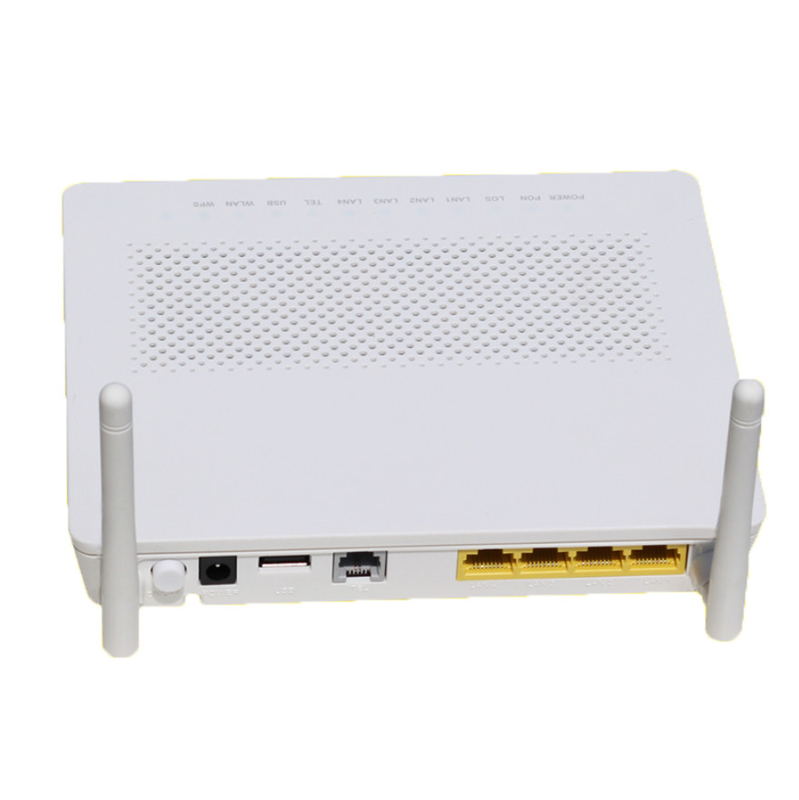

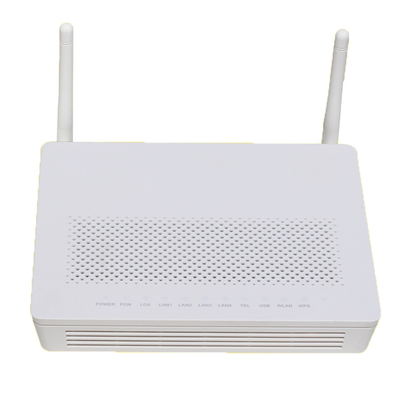

Large Image :  HuaWei Fiber Cat HN8546Q XG-PON 5G Wireless WIFI 10G ONU 3 Netcom

Product Details:
Place of Origin: China, Guangdong
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: HN8546Q
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

HuaWei Fiber Cat HN8546Q XG-PON 5G Wireless WIFI 10G ONU 3 Netcom

Description
Product Model: HN8546Q Dimensions: 210mmmmmm *159.5mmmm * 36mmmm
Weight: <500g Power Supply: 11-14 Volts DC, 3A
The Power Consumption Of Static Electricity: <8W Maximum Electricity Consumption: <30W
Optical Interface: SC/UPC Warranty: 1 Year
High Light:

HN8546Q XG-PON

,

HuaWei Fiber Cat

,

XG-PON 5G Wireless

HuaWei Fiber Cat HN8546Q XG-PON 5G Wireless WIFI Dual Frequency 10G 10G ONU Three Netcom





HuaWei HN8546Q FTTH Product Overview

HW HN8546Q FTTH is XGPON 10G optical terminal with 4 Gigabit port 2.4G 5G dual frequency
HW HN8546Q FTTH is a smart gateway device of HW’s 10 Gigabit fiber smart home solution for China Mobile, providing 1 POTS voice interface, 4 GE adaptive Ethernet ports and dual-band Wi-Fi (2.4GHz & 5GHz) , Flexible application, support plug and play, remote diagnosis, green energy saving and other features.
HW HN8546Q FTTH supports GPON and EPON technologies to achieve ultra-broadband access for home users in FTTH networking scenarios. Its high-performance forwarding capability effectively guarantees voice, data and high-definition video service experience, providing ideal terminal solutions and orientation for FTTH deployment Future business support capabilities. 10G PON can be classified into 10G EPON and 10G GPON, which evolved from existing EPON and GPON technologies

HuaWei HN8546Q FTTH Product Feature

* XG-PON: Class N1/N2a
* Receiving sensitivity: -28dBm
* Wavelength: uplink 1260-1280nm, downlink 1575-1580
* Support band-stop filter (WBF)
* GEM Port and CONT flexible mapping
* Authentication: MAC/Key/SN/Password/SN+Password/
* Two-way authentication based on OMCI (XG-PON);
* Support upstream and downstream FEC (Forward Error Correction)
* Support DBA OF SR, NSR
* Upstream and downstream speed rate:
* upstream 2.5Gbps, downstream 10Gbps



Specifications



Hardware parameters
Dimensions (width×depth×height) 210mmmmmm s 159.5mmmm s 36mmmm
weight <500g
Operating temperature 0 to 40 degrees C
Operating humidity 5% RH to 95% RH, non-condensation
power supply 11-14 volts DC, 3A
Power adapter input 180-240V AC,50/60HZ
The power consumption of static electricity <8W
Maximum electricity consumption <30W
optical interface SC/UPC
Interface parameters
PON mouth :: XG-PON: N1/N2a
Class: Receive Sensitivity: -28dBm
- Wavelength: Upstream 1260-1280nm, Downstream 1575-1580
s Support with Resistance Filter (WBF)
- Gem Port andFlexible Mapping
- Authentication: MAC/Key/SN/Password/SN / Password/Password/
Two-way certification based on OMCI (XG-PON);


Support for upstream and downstream FECs (forward error correction) sR, NSR DBA , upstream and downstream speeds: upstream 2.5Gbps, downstream 10Gbps
Wireless Local Area Network (Wi-Fi) :: IEEE 802.11 b/g/n (2.4G)
s IEEE 802.11 a/n/ac (5G)
s 3x3 Multi-Input Multi-Output (MIMO)
s 2.4-2 2.4835GHz EIRP 100mW
s 5.15-5.25GHz/5.25-5.35GHz EIRP 200mW
s Wireless Gain: 5dBi
:: WMM (WIFI Multimedia)
s more SSID
s/WPS
s 2.4G/5G Concurrent
s Port Speed:
2.4G: 450Mbps
5G: 1300Mbps
USB :: USB2.0,
USB3.0,
networked storage,
SAMBA-based file sharing/printing sharing,
DLNA DMS/UPnP (media server).
