Product Details:
|
| Product Name: | MA5608T | Weight: | 13kg |
|---|---|---|---|
| Warranty: | 1 Year | Transmission Distance: | 20KM |
| Name: | Huawei Gpon ONU,4--16 PON/EPON OLT | Color: | Black |
| Type: | GPON OLT,OLT In Fiber Optic Equipment | PON Capacity: | 2 Ports |
| PRAM: | AC/DC | ||
| High Light: | GPBD OLT,Mini GPON OLT,MA5608T OLT |
||
MA5608TThe MA5608T is an integrated fiber-copper access device, and can serve as a mini-OLT or mini-DSLAM.
The MA5608T, if serving as a mini-OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.
The MA5608T, if serving as a mini-DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes and provides Internet access, voice, and video services.
Figure 4 shows the appearance of the MA5608T.

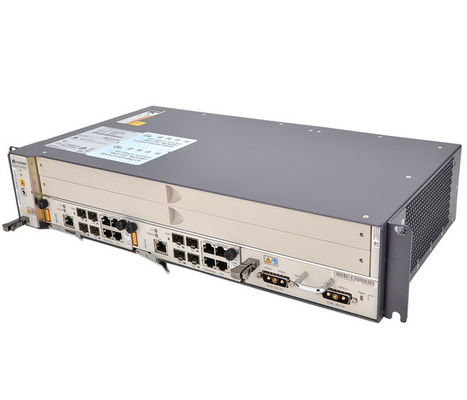

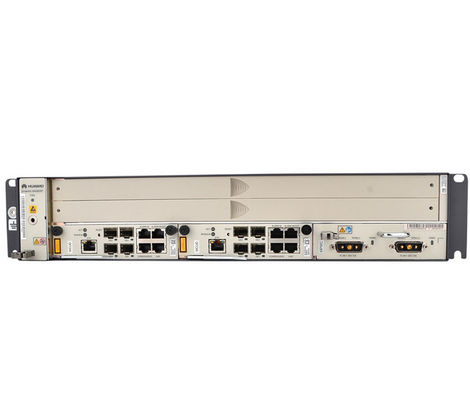

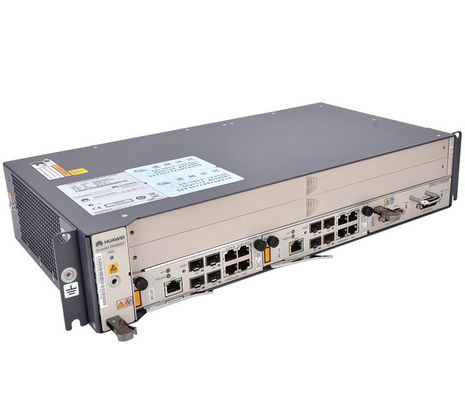

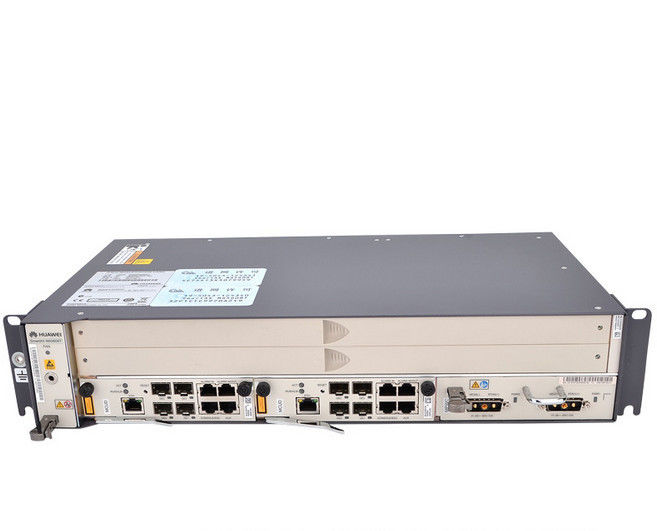

Figure 4 Appearance of the MA5608T configured with the xPON boards
The MA5600T/MA5603T/MA5608T, functioning as an integrated optical-copper access equipment, provides the integrated broadband and narrowband access and FTTx optical access services that feature high rate, high bandwidth, and high quality. It can function as an OLT, MSAN, or IP DSLAM. The MA5600T is a large-capacity device, the MA5603T is a mediumcapacity
device and the MA5608T is a small-capacity device.
In the upstream direction, the device is generally connected to the IP/MPLS network through the Ethernet (GE/10GE) port.
| Boards supported by the MA5608T | ||||
| Board Type | Board | Full Name | Function | |
| Control board | H801MCUD | Mini Control Unit Board |
Four SFP GE ports for upstream transmission or cascading |
|
| H801MCUD1 | Mini Control Unit Board |
Stratum-3 clock |
||
| Power interface board | H801MPWC | Double DC power board |
Indication of power status |
|
| H801MPWD | AC power board |
Battery low voltage disconnection; charge and discharge management of storage batteries |
||
| Service board | GPON interface board | H805GPBD | 8-port GPON OLT interface board |
Temperature query and board power-off in case of a high temperature |
| H802GPFD | 16-port GPON OLT Interface Board |
Automatic power shutdown in case of a high temperature |
||
| SPU board | H801SPUB | service processing unit board |
Active/standby switchover of the control boards |
|
| Voice board | H802EDTB | 16-port T1 service board |
CPE mode |
|
| P2P interface board | H802OPGD | 48-port GE/FE optical interface board |
Two-channel one-fiber bi-directional CSFP, one-channel two-fiber bi-directional SFP, and one-channel one-fiber bi-directional SFP optical modules |
|
| Ethernet service access board | H801ETHB | Ethernet service access board |
Intra-board aggregation |
|
