Product Details:
|
| Product Name: | HG8546M | Color: | WHITE |
|---|---|---|---|
| Power Supply: | 220v | Power Adapter: | UK, US, EU, AU Etc |
| Operating Temperature: | -5°C~45°C | Selling Units: | Single Item |
| Single Package Size : | 35X5X18 Cm | Single Gross Weight: | 0.500 Kg |
| Package Type: | New In The Huawei Box | ||
| High Light: | HG8546M,HS8545M5,1 POST GPON ONU |
||

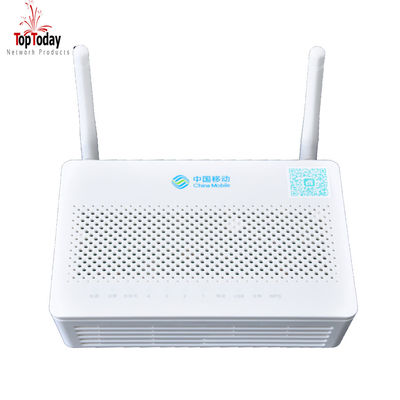

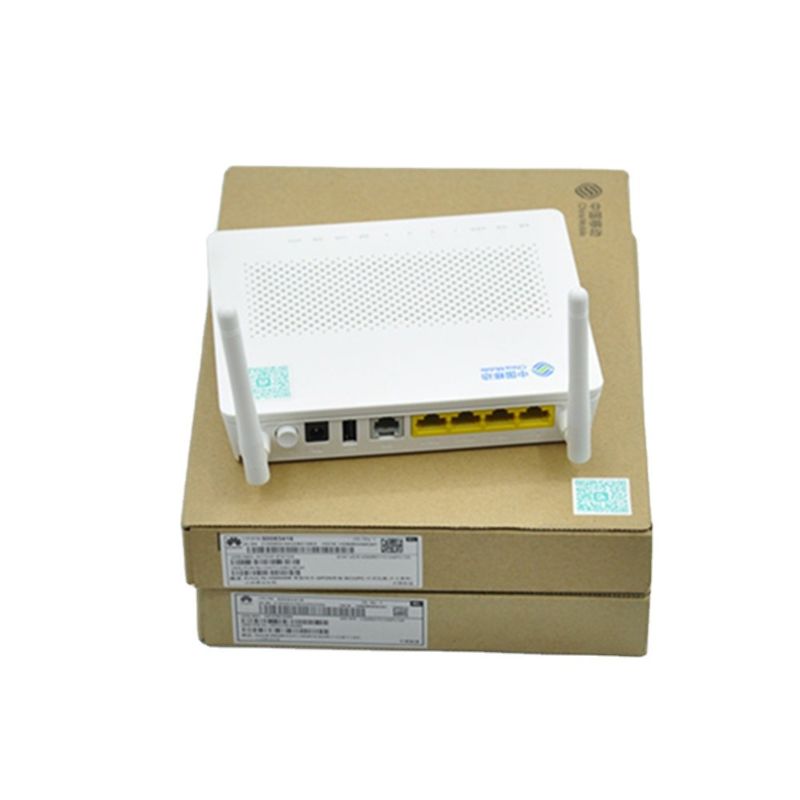

Huawei GPON ONU HG8546M HS8545M5 HG8545M 1GE+3FE+1POST with wifi
The HS8545M5, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HS8545M5 provides one POTS port, one GE and three FE auto-adapting Ethernet ports and one Wi-Fi port. The HS8545M5 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HS8545M5 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Port Version
1GE+ 3FE + 1POTS + WIFI(external antenna)+ USB
With Chinese word shell and China Mobile logo,if you need English word shell one,please contact with
GPON features
Class B+ optical module
Secure authentication mode: SN, password or SN+password
Upstream/downstream FEC
Voice features
SIP or H.248 protocols
Media stream and signaling stream separation
Multicast features
IGMP V2&V3 Snooping
GMP Proxy
Wi-Fi features
802.11b/g/n certified by the Wi-Fi Alliance
Routing features
8 WAN interfaces
NAT function
Internet, IPTV and VoIP services are automatically bound to ONT ports
Virtual Server, Port Trigger
DMZ and DDNS
Security features
SMAC/IP/URL filter
Anti-DOS Attack
IPv6 features(for HSI and IPTV)
IPv6/IPv4 dual stack
DS-Lite
MLD snooping
Maintenance features
Web local management
Remote management through OMCI
Remote management through TR069
Optical power monitoring
Loop-line test of POTS ports
Call emulation
PPPoE dialup emulation
DHCP emulation
