Product Details:
|
| Product Name: | Echolife ONT HG8310M | Type: | ONT ONU |
|---|---|---|---|
| Selling Units: | Single Item | Single Package Size : | 130X105X30 Cm |
| Single Gross Weight: | 0.500 Kg | Package Type: | New One In Box |
| Port: | 1POTS+4GE+2USB+2.4G&5G Wi-Fi | Optical Interface: | SC/UPC Interface Class B+ |
| High Light: | GPON Optical Fiber Wifi Router,ONU Optical Fiber Wifi Router,HG8310M Wifi Router |
||

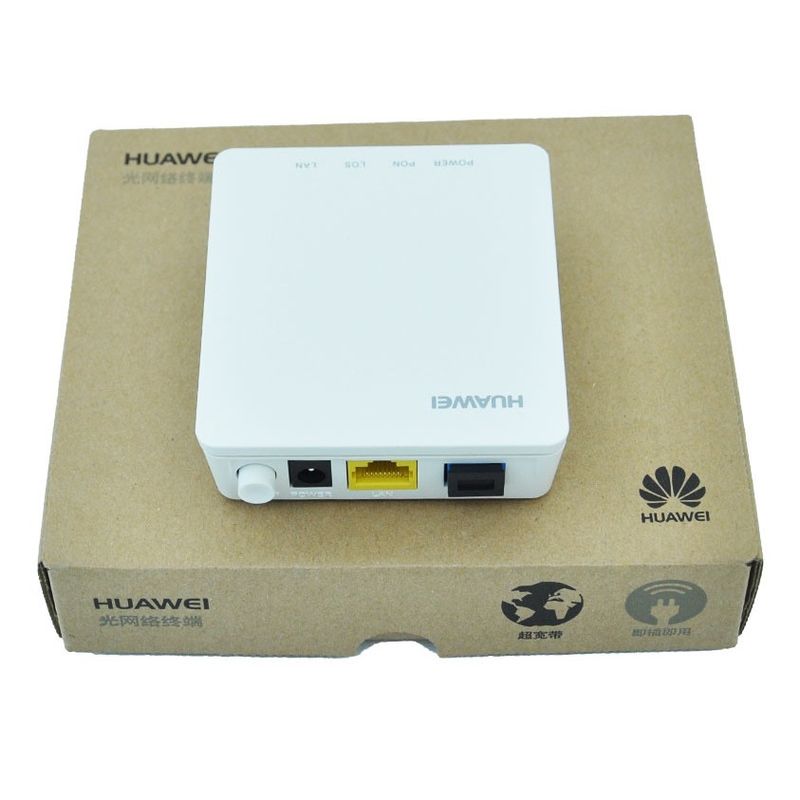

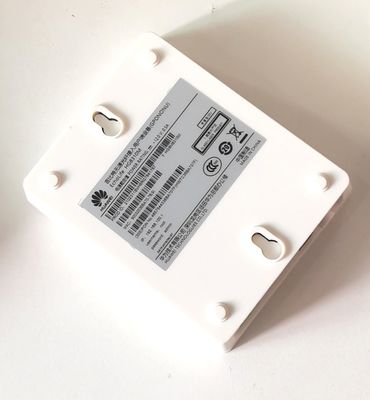

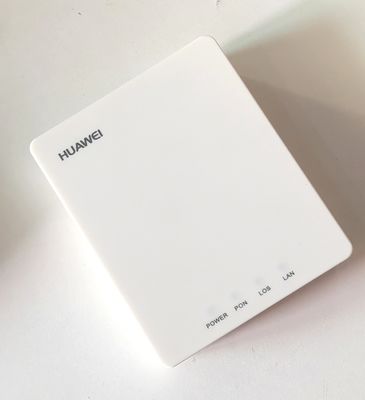

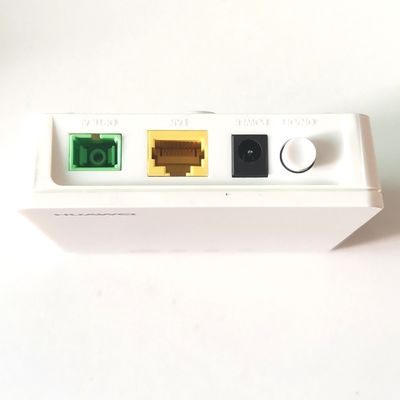

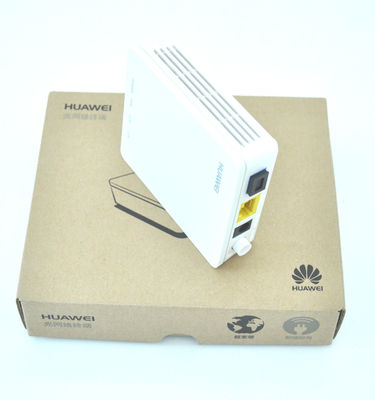

HuaWei GPON ONU ONT HG8310M Single Port Optical Fiber Wifi Router
Descriptions
ModelBig style HG8310M Out Port contains1GEWIFI signalNO Wireless gainNOUSBNOLAN1*10/100/1000Mbps
adaptive Ethernet ports, full/half duplex, RJ45 interfaceTELNOPPPOEsupportFirmwareEnglishDimension/weight115mm*95mm*25mm/116gFiber
port1 GPON/EPON/XPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25GbpsWavelengthTx 1310nm, Rx 1490nmFiber
interfaceSC/FC-UPC/APC Dual mode/Singal modeRX sensitivity>-28dBm (1490nm)DC power12V 0.5A, external AC-DC power adapterButton
Reset, powerOperationWorking temperature: -5- +55℃ working humidity:10-90%(non-condensation)StorageStorage temperature: -30℃- +60℃
storage humidity: 10-90%(non-condensation)
Features
1.Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
2.Remote
diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulati
3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
4.High speed forwarding: 900 Mbit/s forwarding in the NAT
scenario.
5.IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.
Specifications
1. what's the way to pay?
2.What's your shipping way?
3.What is the product used for packing?
