Product Details:
|
| Huawei Model Number: | HS8546V5 | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Setup Interface: | English | Keywords: | HS8546V5 Keywords: |
| Warranty: | 1 Year | Dimension: | 155*145*9mm |
| Single Package Size : | 15.5X14.5X9 Cm | Single Gross Weight: | 0.500 Kg |
| High Light: | OLT Optical Fiber Wifi Router,4 GE HS8546V5,1 TEL HS8546V5 |
||

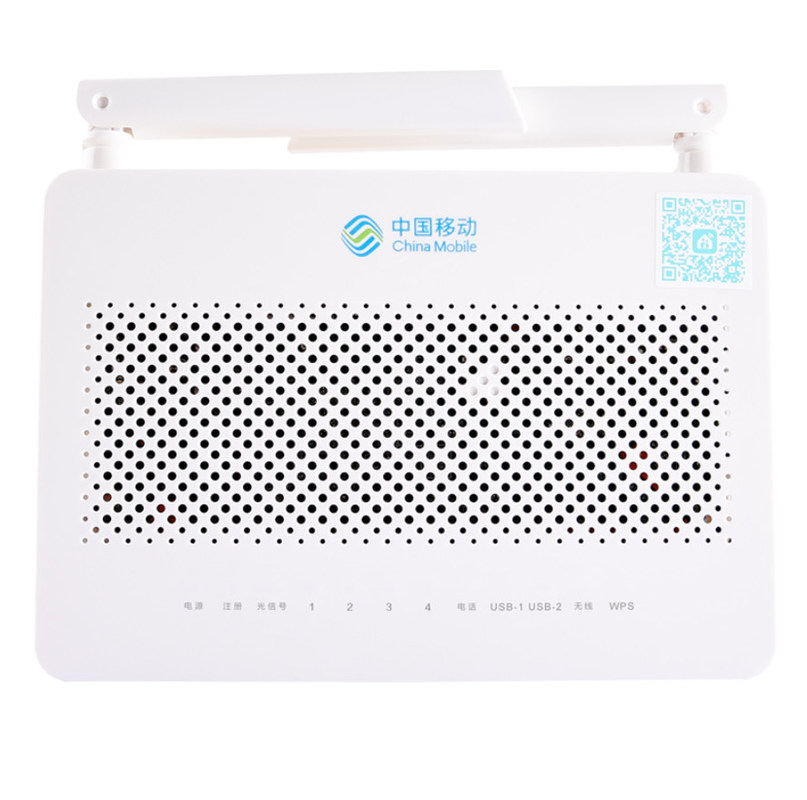

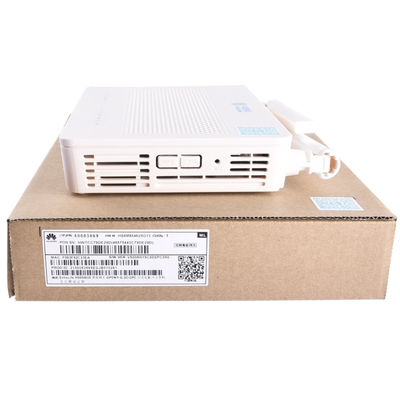

HS8546V5 Dual band 2.4G 5G 5Dbi HuaWei EchoLife HS8546V5 GPON ONU ONT
Huawei HS8546V5 Overview
Huawei HS8546V5 FTTH is an intelligent gateway device manufactured by Huawei for gigabit fibre smart home solution. It provides a POTS voice interface, four GE/FE adaptive Ethernet ports and dual-frequency wi-fi (2.4ghz & 5GHz) with the flexible application and supports plug and play, remote diagnosis, green energy saving, and other features.
HS8546V5 supports GPON and EPON technologies to realize ultra-broadband access for home users in FTTH networking scenarios. Its high-performance forwarding capability effectively guarantees voice, data and high-definition video business experience, and provides FTTH deployment with ideal terminal solutions.
Huawei HS8546V5 Specifications
|
Brand |
Huawei |
|
Model |
HS8546V5 |
|
Working environment |
Operating temperature: 0ºC to 40ºC |
|
Environment humidity: 5% to 95% (noncondensing) |
|
|
Typical power consumption |
8 W |
|
Power specifications |
Power adapter input: 100 to 240 V AC, 50–60 Hz |
|
System power supply: 11–14 VDC, 2 A |
|
|
WLAN |
2.4GHZ: 802.11n |
|
5GHZ: 802.11ac |
|
|
Network-side Port |
GPON |
|
User-side Ports |
1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB |
|
Indicators |
POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
|
Product name |
Huawei EchoLife HS8546V5 GPON ONU |
|
Color |
White |
|
Warranty |
1 Year |
|
Gross Weight |
441g |
|
Dimensions Of packaging |
25cm*20cm*5cm |
|
Power |
12V - 1.5A |
|
Ports |
4GE+1USB+TEL+WPS+WIFI2.4G+5G 5Dbi |
Huawei HS8546V5 Features
Huawei HS8546V5 FTTH is a smart gateway device of Huawei’s Gigabit fiber smart home solution for China Mobile. It provides 1 POTS voice interface, 4 GE/FE adaptive Ethernet ports and dual-band Wi-Fi (2.4GHz & 5GHz) , Flexible application, support plug and play, remote diagnosis, green energy saving and other features.
1. Interface type: 1POTS+4GE+1USB+ dual-band (2.4GHz & 5GHz) Wi-Fi.
2. Flexible application: PC, STB and other home terminals can be arbitrarily interpolated on the Ethernet port; SIP and H.248 are supported by both protocols, and it is convenient to interface with soft switches.
3. Plug and Play: Supports remote automatic distribution of voice, broadband, and multicast services through the OMCI protocol and TR069, without on-site configuration.
4. Remote diagnosis: support POTS port line test, call simulation, PPPoE dial-up simulation, easy remote fault location.
5. Green energy saving: It adopts high integrated SOC chip, and integrates PON, voice, gateway and LSW modules on a single chip, saving 25% energy.
