HuaWei EG8145V5 GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi

HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi
HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi
HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi

Large Image :  HuaWei EG8145V5 GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Model Number: EG8145V5
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

HuaWei EG8145V5 GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi

Description
Type: Optical Fiber Wifi Router Use: 30mm X 173mm X 120mm
POE: Yes Application: FTTH FTTB FTTX Network
WLAN(2.4G): 2 X 2 MIMO 802.11b/g/n Ports: 4GE+1Post+2USB+Dual Band Wifi
Single Gross Weight: 3.000 Kg Warranty: 1 Year
High Light:

FTTH WiFi Ont ONU

,

EG8145V5 Wifi Router

,

Dual Band GPON ONU ONT

 Description Of Optical Fiber Wifi Router

The EchoLife EG8145V5, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. TheEG8145V5 provides 1* POTS ports, 4*GE auto-adapting Ethernet ports, and 2* Wi-Fi port,2*USB port. TheEG8145V5 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the EG8145V5 provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.

Specification Of Optical Fiber Wifi Router



NNI

GPON

Optical interface

SC/APC interface

Class B+

UNI

1POTS+4GE+2USB+2.4G&5G Wi-Fi

WiFi standard

2.4GHz: 2 x 2 MIMO 802.11b/g/n

5GHz: 2 x 2 MIMO 802.11a/n/ac

Antenna gain

5dBi

Dimensions(Width×Depth×Height)

30mm x 173mm x 120mm

Power supply

Power supply: 11–14V DC, 1.5A

Input power: 100–240V AC, 50/60Hz

Operating temperature and operating humidity

0℃ to 40℃

5% to 95%, non-condensing

Cooling

Passive cooling

Maximum number of MAC addresses learned

1024

L2 forwarding capability

Forwarding packets of any length at wire speed

IPv4 L3 forwarding capability

2Gbit/s with any length packets in downstream direction

1Gbit/s with any length packets in upstream direction

IPv6 L3 forwarding capability

2Gbit/s with any length packets in downstream direction

1Gbit/s with any length packets in upstream direction

Configuration method

NMS, Web, or TR069

Voice protocol

SIP and H.248

Software version

V300R017C10





Model
Configuration
Dimension/Packing
LAN
Telephone
WIFI
PPPOE
Firmware
EG8145V5
4GE
1POTS
YES
YES
English

173*120*30mm

250g  20pcs/ctn
Remark
2USB,Internal Antenna,Support IEEE802.11ac,Dual Frequency WIFI,WirelessNet-5G
Number of Assoclated Devices:32



Application Of Optical Fiber Wifi Router





1. Product Function
   • Smart Wi-Fi coverage

   • SIP/H.248 auto-negotiation

   • Any port any service

   • Parental control

   • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

2. Smart service

   • Scheduled Wi-Fi shutdown
   • Smart Wi-Fi sharing:
   • Portal/802.1x authentication
   • SoftGRE-based sharing

3. Smart O&M

   • IPTV video quality diagnosis
   • eMDI
   • Rogue ONT detection and isolation from the OLT
   • Call emulation, and circuit test and loop-line test
   • PPPoE/DHCP simulation testing
   • WLAN emulation


4. Layer 3 Features

   • PPPoE/Static IP/DHCP
   • NAT/NAPT
   • Port forwarding
   • ALG, UPnP
   • DDNS/DNS server/DNS client
   • IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI
   • Static/Default routes
   • Multiple services on one WAN port


5. Multicast

   • IGMP v2/v3 proxy/snooping
   • MLD v1/v2 snooping


6. QoS

   • Ethernet port rate
   limitation
   • 802.1p priority
   • SP/WRR/SP+WRR
   • Broadcast packet rate



7. Security

   • SPI firewall
   • Filtering based on
   • MAC/IP/URL addresses



8. Power Saving
   • Indicator power saving
   • COC V5





Specifications Overview:



Interface Parameters
GPON Port

• Class B+

• Receiver sensitivity: -27 dBm
• Overload optical power: -8 dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF) of G.984.5
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
• Type B (single-homing&dual-homing)
Ethernet Port

• Ethernet port-based VLAN tags and tag removal

• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS Port

• Maximum REN: 4

• G.711A/μ, G.729a/b and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
USB Port

• USB2.0

• FTP-based network storage
• File/Print sharing based on SAMBA
• DLNA function
WLAN

• IEEE 802.11 b/g/n (2.4G)

• IEEE 802.11 a/n/ac (5G)
• 2 × 2 MIMO (2.4G&5G)
• Antenna gain: 5 dBi
• WMM/Multiple SSIDs/WPS
•2.4G&5G concurrent
• Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G)

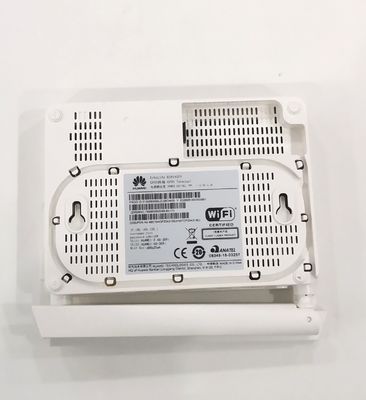

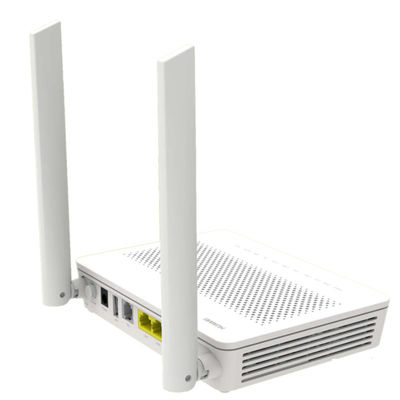

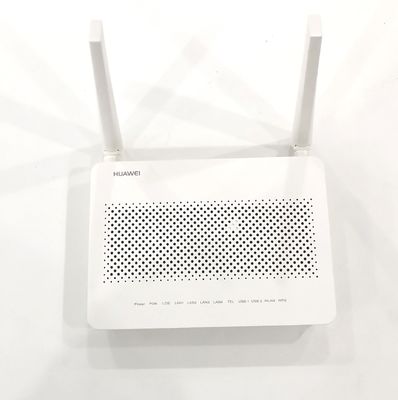

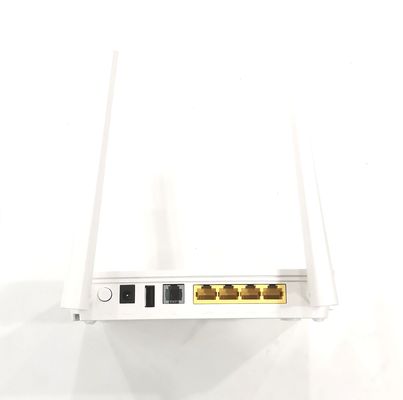

Product display



HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi 0HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi 1HuaWei EG8145V5  GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi 2

Quality



1. 100% original brand new high-end new materials are used for production.

2. High-quality products with ISO9001, RoHS, FCC, CE certificates.

3. Multiple testing: raw material testing, three rounds of optical and electrical performance testing, 24-hour aging test, compatibility test on the switch before leaving the factory.
