Product Details:
|
| Product Name: | RB760iGS/hEX S | PoE In: | 802.3af/at |
|---|---|---|---|
| Tested Ambient Temperature: | -40°C To 70°C | Size Of RAM: | 256M |
| License Level: | 4 | CPU: | CPU |
| Dimensions: | 113 X 89 X 28 Mm | Warranty: | 1 Year |
| High Light: | RB760iGS Router,Mikrotik HEX S Router,Mikrotik Gigabit Router |
||
MikroTik RB760iGS/hEX S full Gigabit 5-port electric port 1 optical port POE ROS router weak current box
Product Description

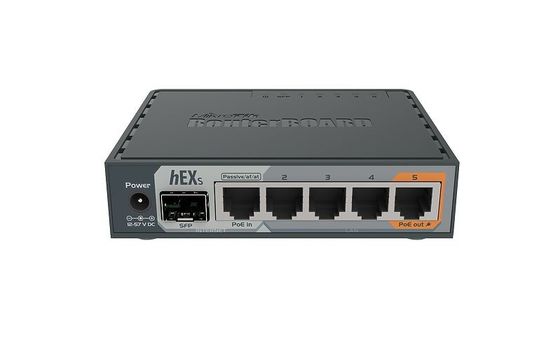

hEX S is a five-port Gigabit Ethernet router for locations that do not require a wireless network connection. Compared to hEX, the latter port of hEX S also has an SFP port and a PoE output.
It's affordable, small and easy to use, but comes with a dual-core 880 MHz CPU and 256 MB RAM to support all configurations supported by RooterOS. The device has USB 2.0 for PoE output and 1.25Gbit /sFP cage for Ethernet port s5.
IPsec hardware encryption (approximately 470 Mbps) and The Dude server packages are supported, with microSD slots on them providing improved r/w speeds for file storage and Dude.
Product specifications
| RB760iGS | MT7621A (880Mhz) 1G all-port test | ||||||
| mode | The configuration | 1518 bytes | 512 bytes | 64 bytes | |||
| Key performance parameters | Mbps | Key performance parameters | Mbps | Key performance parameters | Mbps | ||
| Bridge | None (Fast Path) | 162.4 | 1,972.2 | 443.7 | 1,817.4 | 1039.1 | 532.0 |
| Bridge | 25 bridge filtering rules | 162.4 | 1,972.2 | 168.1 | 688.5 | 174.3 | 89.2 |
| routing | None (Fast Path) | 162.4 | 1,972.2 | 444.4 | 1,820.3 | 1035.0 | 529.9 |
| routing | 25 simple queues | 162.4 | 1,972.2 | 179.6 | 735.6 | 171.4 | 87.8 |
| routing | 25 ip filtering rules | 92.9 | 1,128.2 | 94.1 | 385.4 | 93.8 | 48.0 |
| RB760iGS | MT7621A IPsec throughput | ||||||
| mode | The configuration | 1400 bytes | 512 bytes | 64 bytes | |||
| Key performance parameters | Mbps | Key performance parameters | Mbps | Key performance parameters | Mbps | ||
| A single tunnel | AES-128-CBC + SHA1 | 41.9 | 469.3 | 42.3 | 173.3 | 41.5 | 21.2 |
| 256 tunnels | AES-128-CBC + SHA1 | 41.9 | 469.3 | 43.7 | 179 | 42.7 | 21.9 |
| 256 tunnels | AES-128-CBC + SHA256 | 42.2 | 472.6 | 44.4 | 181.9 | 42.7 | 21.9 |
| 256 tunnels | AES-256-CBC + SHA1 | 32 | 358.4 | 40 | 163.8 | 40.5 | 20.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 32.1 | 359.5 | 39.7 | 162.6 | 40.5 | 20.7 |
