Product Details:
|
Product Name: | RB1100x4/RB1100AHx4 | Architecture: | ARM 32bit |
---|---|---|---|
Dimensions: | 444 X 148 X 47 Mm | 2License Level: | 6 |
Operating System: | RouterOS | Storage Size: | 128 MB |
Max Power Consumption: | 20W | Warranty: | 1 Year |
High Light: | MikroTik Fiber Optic Switch,RB1100ahx2 Router,RB1100AHx4 Router |

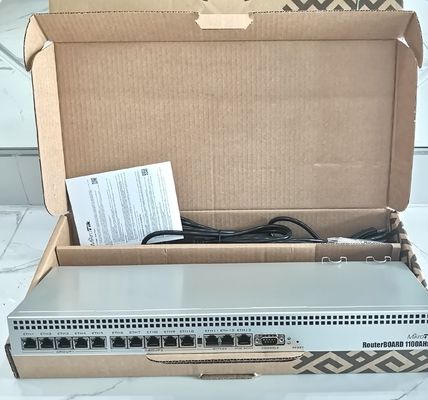

MikroTik RB1100x4/RB1100AHx4 13x RB1100ahx2 Gigabit Ethernet ports RouterBOARD Router
The new RB1100AHx4 series of devices uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company, The chip is clocked at 1.4 GHz, for a maximum throughput of up to 7.5 Gbit.Two models are available, with the RB1100AHx4 Dude edition featuring several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. The Dude edition includes a 60 GB M.2 drive already installed.

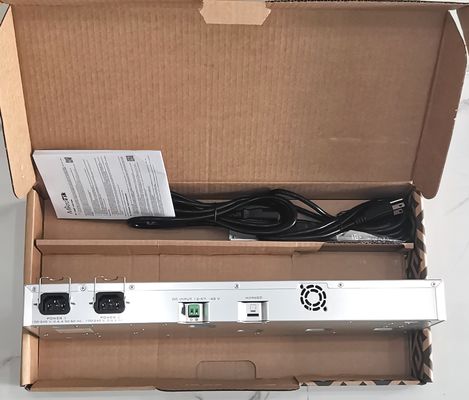

The devices support IPsec hardware acceleration and are faster at it than any previous RouterBOARD device. The RB1100AHx4 feature two IEC failover power connectors, support 802.3at PoE input and also have a DC telecom power connector for -48 V DC powering.
Details | |
---|---|
Product code | RB1100x4 |
Architecture | ARM 32bit |
CPU | AL21400 |
CPU core count | 4 |
CPU nominal frequency | 1.4 GHz |
Dimensions | 444 x 148 x 47 mm |
License level | 6 |
Operating System | RouterOS |
Size of RAM | 1 GB |
Storage size | 128 MB |
Storage type | NAND |
Tested ambient temperature | -40°C to 70°C |
Details | |
---|---|
PoE in | 802.3af/at |
PoE in input Voltage | 20-57 V |
Number of AC inputs | 2 |
AC input range | 100-240 |
Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
2-pin terminal input Voltage | -48, 12-57 V |
Max power consumption | 20 W |
Details | |
---|---|
10/100/1000 Ethernet ports | 13 |
Details | |
---|---|
Memory card type | microSD |
Memory Cards | 1 |
Serial port | RS232 |
