Product Details:
|
| Model Number: | RP-5AC-Gen2 | Brand Name: | UBNT |
|---|---|---|---|
| Weight: | 400 G (14.11 Oz) | Dimensions: | 88 X 40 X 230 Mm (3.47 X 1.58 X 9.06") |
| Networking Interface: | 10/100/1000 Ethernet Port | Memory: | 128 MB DDR2 SDRAM |
| Max. Power Consumption:: | 9.5W | Warranty: | 1 Year |
| High Light: | UBNT Wireless Bridge Rocket,RP-5AC-Gen2,802.11ac Wireless Bridge |
||

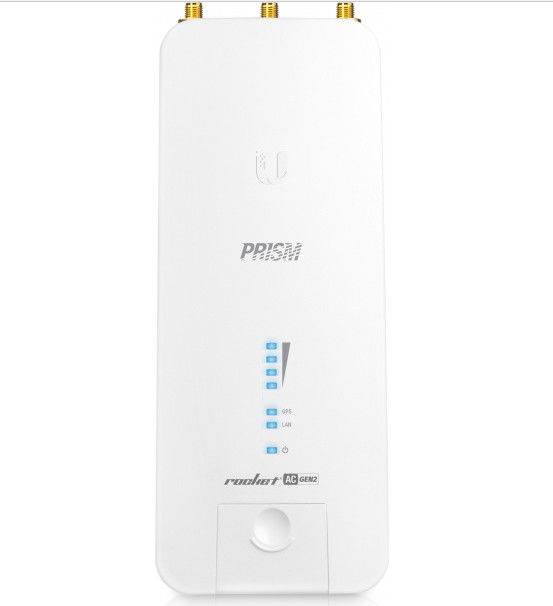

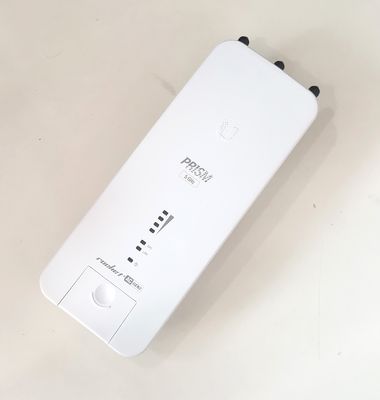

UBNT Wireless Bridge Rocket RP-5AC-Gen2 802.11ac Gigabit 5GHz 450Mbps
UBNT wireless bridge Rocket RP-5AC-Gen2 802.11ac Gigabit 5GHz high bandwidth 450Mbps wireless bridge
Overview
Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®Prism 5AC Gen 2 features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas.
Pair the Rocket Prism 5AC Gen 2 with airMAX ac antennas for optimal performance:
• PtP backhaul RocketDish™ ac Antenna
• PtMP links airMAX ac Sector
Worldwide 5 GHz Coverage
Deploy the Rocket Prism 5AC Gen 2 anywhere in the world. It delivers complete coverage of the 5 GHz spectrum with a single radio. The Rocket Prism 5AC Gen 2 allows for flexibility in configuring channel bandwidths (subject to local country regulations)
|
RP-SMA Antenna Connectors |
|---|
|
Used to attach RF cables (not included). |
|
GPS Antenna Connector |
|
Used to attach the GPS Antenna. |
|
LEDs |
|
Signal In airOS®, you can modify the wireless signal strength threshold values for each LED on the Wireless tab under Signal LED Thresholds. Each LED will light when the wireless signal strength is equal to or greater than the LED’s threshold value. The default values are shown below:
GPS The GPS LED will light steady blue when the GPS signal strength is sufficient. This requires a minimum of three satellite connections. LAN The LAN LED will light steady blue when an active Ethernet connection is made to the LAN port and flash when there is activity. Power The Power LED will light blue when the device is connected to a power source. |
|
Reset Button |
|
To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is already powered on. Alternatively, the device may be reset remotely via a Reset button located on the bottom of the Gigabit PoE adapter. |
|
LAN |
|
The Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. |
Specifications
|
RP-5AC-Gen2 |
|
|
Dimensions |
88 x 40 x 230 mm (3.47 x 1.58 x 9.06") |
|---|---|
|
Weight |
400 g (14.11 oz) |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
RF Connectors |
(2) RP-SMA (Waterproof) |
|
LEDs |
(4) Signal Strength, GPS, Power, LAN |
|
Enclosure |
Die-Cast Aluminum with |
|
Max. Power Consumption |
9.5W |
|
Power Supply |
24V, 1A Gigabit PoE Adapter (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Processor |
MIPS 74Kc |
|
Memory |
128 MB DDR2 SDRAM |
|
Operating Temperature |
-40 to 80° C (-40 to 176° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
ESD/EMP Protection |
± 24KV Contact / Air for Ethernet |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, IC |
|
Operating Frequency (MHz) |
||
|
Worldwide |
5150 - 5875 |
|
|---|---|---|
|
US/CA |
U-NII-1 |
5150 - 5250 |
|
U-NII-2A |
5250 - 5350 |
|
|
U-NII-2C |
5470 - 5725 |
|
|
U-NII-3 |
5725 - 5850 |
|
|
Management Radio (MHz) |
|
|
Worldwide |
2412 - 2472 |
|---|---|
|
US/CA |
2412 - 2462 |
FAQ
Q: What are your advantages?
A: We are selected partners and professional manufacturers in the field of network equipment for more than ten years. We provide customers with original products at preferential prices. We have a professional sales team to provide 24-hour free consultation, and we also have a professional technical team and after-sales department.
Q: What is the warranty of your product?
A: One year.
Q: What is the minimum order quantity for your products?
Answer: One.
Q: What are the payment terms?
A: Pre T/T or paypal or Western Union or Alibaba trade guarantee order.

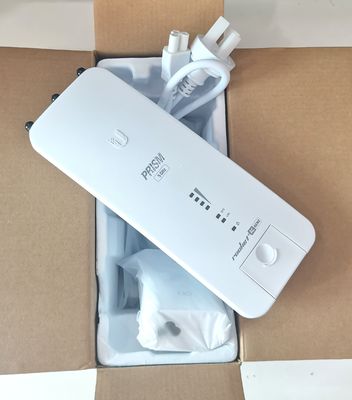

Q: What is a package?
