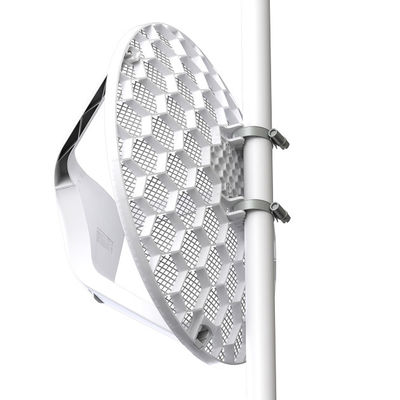

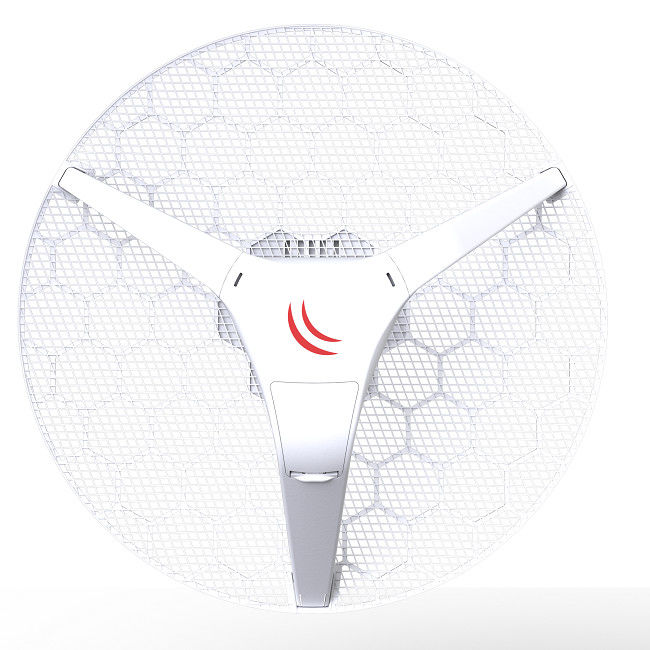

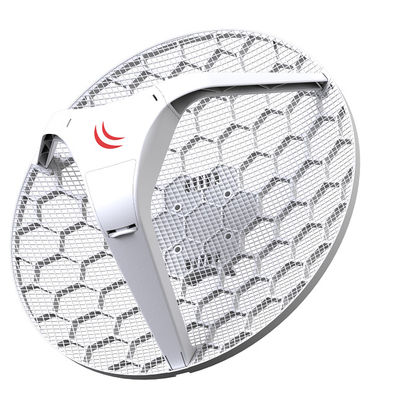

LHG 5 AP RBLHG-5nD Outdoor Wireless Surveillance System

MikroTik Outdoor Wireless System

LHG 5/RBLHG-5nD

The LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

We have two versions available.

• LHG 5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
• LHG 5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)
• Specification



  Details
  Product code	RBLHG-5nD
  Architecture	MIPSBE
  CPU	AR9344
  CPU core count	1
  CPU nominal frequency	600 MHz
  Dimensions	Ø 391 x 222 mm; package 450 x 450 x 145 mm
  License level	3
  Operating System	RouterOS
  Size of RAM	64 MB
  Storage size	16 MB
  Storage type	FLASH
  Tested ambient temperature	-40 to 70° C





  Powering

  Details
  PoE in	Passive PoE
  PoE in input Voltage	11-30 V
  Number of DC inputs	1 (PoE-IN)
  Max power consumption	6 W



  Wireless

  Details
  Antenna gain dBi for 5 GHz	24.5
  Wireless 5 GHz standards	802.11a/n
  Wi-Fi generation	4
  Wireless 5 GHz Max data rate	300 Mbit/s
  Wireless 5 GHz number of chains	2
  Wireless 5 GHz chip model	AR9344



  Ethernet

  Details
  10/100 Ethernet ports	1



  Wireless specifications

  5 GHz	Transmit (dBm)	Receive Sensitivity
  6MBit/s	25	-96
  54MBit/s	20	-80
  MCS0	25	-96
  MCS7	19	-75
