Product Details:
|
| Type: | Optical Fibers | Use: | FTTX |
|---|---|---|---|
| Product Name: | Indoor Access Point | Radio Protocols: | 802.11a/b/g/n/ac/ac Wave 2/11ax |
| Highest Rate: | 1.774Gbit/s | MIMO Spatial Streams: | 2 X 2 |
| Number Of Users: | 512 | Warranty: | 1 Year |
| Selling Units: | Single Item | Single Package Size : | 57X5X32 Cm |
| Single Gross Weight: | 3.000 Kg | Package Type: | New In The Box. |
| High Light: | 1.77gbps POE Wireless Access Point,2X2 POE Wireless Access Point,AirEngine 5760-10 |
||
|
Specifications
|

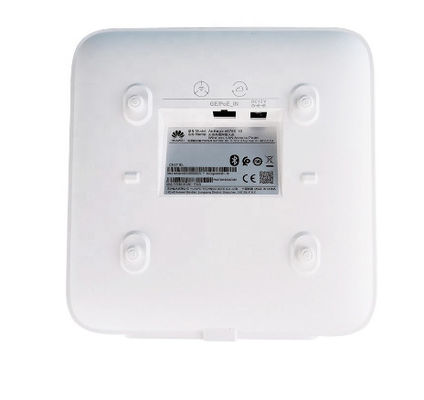

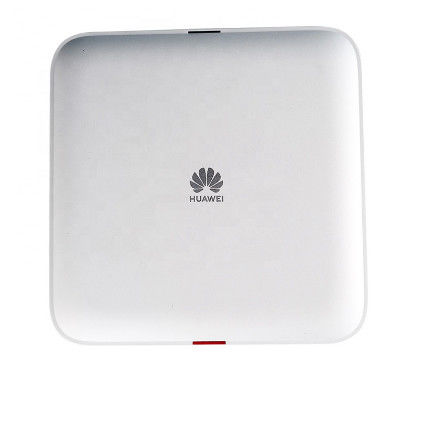

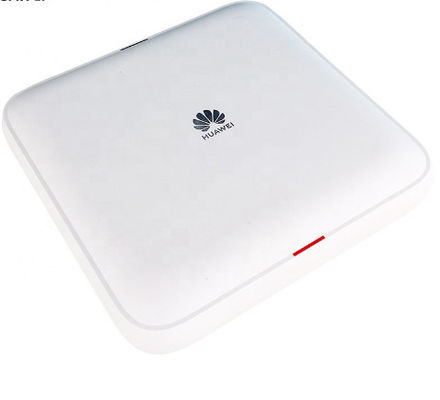

AirEngine 5760-10
|
|
Dimensions (H x W x D)
|
47 x 200 x 200 mm
|
|
Power Input
|
DC: 12 V ± 10%
|
|
PoE: In compliance with IEEE 802.3at
|
|
|
Maximum Power Consumption
|
15.8 W (excluding output power consumption of the USB interface and IoT)
|
|
Note: The actual maximum power consumption depends on local laws and regulations.
|
|
|
Antenna Type
|
Built-in smart antennas
|
|
Maximum Number of Users
|
≤ 512
|
|
Note: The actual number of users varies according to the environment.
|
|
|
Maximum Transmit Power
|
2.4G: 25 dBm (combined power)
|
|
5G: 25 dBm (combined power)
|
|
|
Note: The actual transmit power depends on local laws and regulations.
|
|
|
MIMO: Spatial Streams
|
2.4G: 2 x 2:2 5G: 2 x 2:2
|
|
Radio Protocols
|
802.11a/b/g/n/ac/ac Wave 2/11ax
|
|
Maximum Rate
|
1.774 Gbit/s
|
