Product Details:
|
| Product Name: | LocoM9 | Brand Name: | UBNT |
|---|---|---|---|
| Dimensions: | 57X5X32 Cm | Use: | Outdoor |
| Type: | Fiber Optic Transceivers | Warranty: | 1 Year |
| Weight: | 3kg | ||
| High Light: | 7W Wireless Bridge Surveillance System,1000Mbps Wireless Bridge Surveillance System,LocoM9 CPE Wireless Bridge |
||

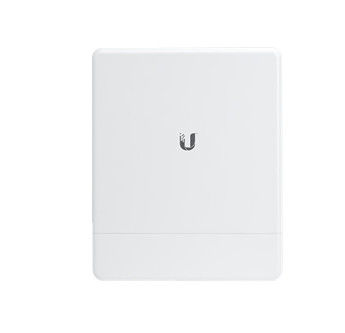

UBNT wireless bridge Surveillance System LocoM9 CPE client
LocoM9 Description:
Model NanoStation LocoM9
Advanced industrial design
The NanoStation™ previously launched by Ubiquiti Networks™ is not only the world's first low-cost, high-performance broadband customer premise equipment (CPE), it also sets a benchmark for such products.
NanoStationM and NanoStationlocoM adhere to the same concept, but also adopt a stylish and elegant streamlined design and airMAX™ (MIMOTDMA protocol) technology.
The low-cost, high-performance and sophisticated NanoStationM and NanoStationlocoM allow you to have more flexible choices when deploying, and the cost is also lower.
Specification:
| LocoM9 | |
|
Dimensions |
57X5X32 cm |
|---|---|
|
Weight |
3kg |
|
Enclosure |
Polycarbonate |
|
Networking Interface |
10/100/1000 Mbps |
|
Antenna Connector |
N-Type Connector |
|
LEDs |
Power, Ethernet, (4) Signal Strength |
|
Max. Power Consumption |
7W |
|
Output Power |
22 dBm |
|
Power Supply |
24VDC, 0.3A (Minimum) |
|
Power Method |
24V Passive PoE (Pairs 4, 5+; 7, 8-) |
|
ESD/EMP Protection |
± 24 kV Contact/Air |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Condensing |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, IC |
| Operating Frequency (MHz) | |
|
US/CA |
2412 - 2462 |
|---|---|
|
Worldwide |
2412 - 2472 |
