Product Details:
|
| Product Name: | LAP-120 | Dimensions: | 452.3 X 78.7 X 54.4 Mm (17.81 X 3.10 X 2.14) |
|---|---|---|---|
| Use: | Outdoor | Memory: | 64 MB |
| Warranty: | 1 Year | Weight: | 420g（14.82oz) |
| Max. Power Consumption: | 7W | Max. TX Power: | 25dBm |
| High Light: | 7W Outdoor Gigabit Wireless Bridge,16dBi Outdoor Gigabit Wireless Bridge,Point To Multipoint Wireless Bridge |
||
UBNT 16dBi/7W Gigabit wireless bridge LAP-120 5G enterprise-level point-to-multipoint wifi coverage
Overviews

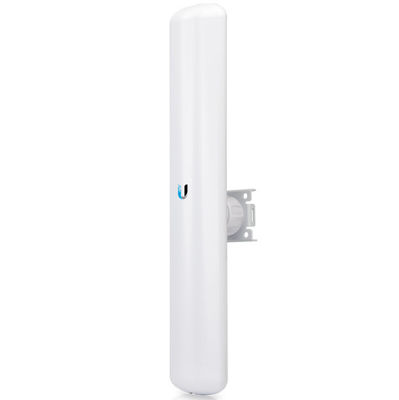

Ultra-lightweight, 5 GHz access point with a versatile, ball-join mount.
The LAP-120 is a 5 GHz, 16 dBi, 120° airMAX® AC AP featuring an ultra-lightweight form factor. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. The ball-joint mount provides adjustment flexibility for versatile mounting options. Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.
Features
1. AirMAX ac Sector Coverage
The LiteAP ac features a 2×2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.
LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.
Specification:
| LAP-120 | |
|
Dimensions |
452.3 x 78.7 x 54.4 mm (17.81 x 3.10 x 2.14) |
|---|---|
|
Weight |
420g(14.82oz) |
|
Memory |
64 MB |
|
Networking Interface |
10/100/1000 Mbps |
|
Antenna Gain |
16dBi |
|
LEDs |
Power, Ethernet, (4) Signal Strength |
|
Max. Power Consumption |
7W |
|
Output Power |
25 dBm |
|
Power Supply |
24VDC, 0.5A (Minimum) |
|
Power Method |
24V Passive PoE (Pairs 4, 5+; 7, 8-) |
|
ESD/EMP Protection |
± 24 kV Contact/Air |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Condensing |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, IC |
| Operating Frequency (MHz) | |
|
US/CA |
2412 - 2462 |
|---|---|
|
Worldwide |
2412 - 2472 |
