Product Details:
|
| Product Name: | LTU-Rocket | Brand Name: | UBNT |
|---|---|---|---|
| Use: | Outdoor | Power Supply: | 24VDC, 1A Gigabit, 4-Pair Passive PoE (Included) |
| Warranty: | 1 Year | Dimensions: | 244 X 82 X 48 Mm (9.61 X 3.23 X 1.89") |
| Weight: | 0.468 Kg (1.03 Lb) | Max. Power Consumption: | 15W |
| High Light: | 550Mpbs Wireless AP Base Station,5Ghz Wireless AP Base Station,LTU Rocket Wireless Bridge |
||

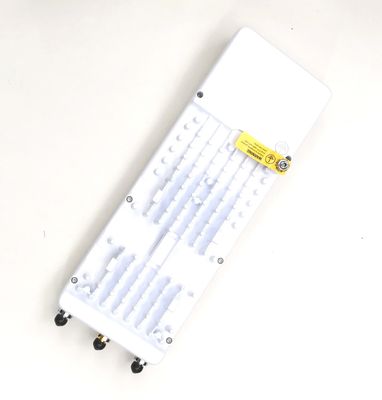

UBNT wireless bridge LTU-Rocket wireless AP base station 5Ghz 550+Mpbs GPS synchronization high power
Installation Requirements of LTU-Rocket
|
|
WARNING: Failure to properly ground your LTU radio will void your warranty. |
|---|
|
|
Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes. |
|---|
Specifications of LTU-Rocket
| LTU-Rocket | |
|
Dimensions |
244 x 82 x 48 mm (9.61 x 3.23 x 1.89") |
|---|---|
|
Weight |
0.468 kg (1.03 lb) |
|
RF Connectors |
(2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
|
GPS Antenna |
External, Magnetic Base |
|
Power Supply |
24VDC, 1A Gigabit, 4-Pair Passive PoE (Included) |
|
Power Method |
Proprietary Passive PoE Pins 1, 2; 4, 5+ and Pins 7, 8; 3, 6- |
|
Supported Voltage Range |
+18 to +54VDC1 (Either/Both RJ45 Ports for Redundancy) |
|
Max. Power Consumption |
15W |
|
Networking Interface |
|
| Data Port | (1) 10/100/1000 Ethernet Port Bluetooth v4.0 |
| Management Port | (1) 10/100/1000 Ethernet Port (Reserved for Future Use) |
|
Mounting |
Integrated Pole Mount (Included) Rocket Mount Compatible GPS Pole Mount (Included) |
|
Operating Temperature |
-40 to 55° C (-40 to 131° F) |
|
Weatherproofing |
IP672 |
|
Certifications |
FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
| System | |
|
Maximum Throughput |
|
|---|---|
| 50 MHz Capacity | 675.84 Mbps1 |
|
Maximum Range |
100+ km |
|
Packets per Second |
2,000,000 |
|
Encryption |
WPA2-PSK (AES) |
|
Forward Error Correction |
LDPC |
|
Uplink/Downlink Ratio |
25/75, 33/67, 50/50 |
|
OS |
airOS LTU |
|
Wireless Modes |
AP |
| Radio | |
|
Max. Conducted TX Power |
23 dBm2 |
|---|---|
|
Frequency Accuracy |
< 2 ppm |
|
Channel Bandwidth |
10/20/30/40/50 MHz Selectable Programmable Uplink and Downlink Duty Cycles |
| Operating Frequency (MHz) | ||
|
Worldwide |
4800 - 62002 | |
|---|---|---|
|
US/CA |
U-NII-1 |
5150 - 5250 |
|
U-NII-2A |
5250 - 5350 | |
|
U-NII-2C |
5470 - 5725 | |
|
U-NII-3 |
5725 - 5850 | |
| Bluetooth LE Management Radio (MHz) | |
|
Worldwide |
2400 - 2483.5 |
|---|---|
Packaging and shipping
Package
1. All products are packed in cartons, which can effectively protect the products and avoid damage.
2. Packaging according to customer requirements.
Shipping
1. We transport small orders via DHL/FedEx/TNT etc. Now, you can get packages worldwide in about 3-5 days.
2. For large orders, we will arrange air freight to you, so it is much cheaper than DHL, UPS, etc.
3. You can choose your own freight forwarder, and we will provide you with good cooperation.
Our service
1. Customers can contact us via phone, Skype, Trademanager, email, Whatsapp, QQ, etc., if they have any questions.
2. All products have been tested before leaving the factory and the packaging is intact.
3. COMBASST will be responsible for the process, material and product quality issues of the correct use of the product in accordance with the manual and warranty terms.
4. We provide 3-5 years warranty and lifetime technical support for all products.
5. During each discussion, COMBASST's inspection proved to be defective, returned or any part of the solution.
6. Return shipping fee:
1). During the warranty period: the customer is responsible for freight and insurance, including custom fees
When transporting equipment and/or parts to the manufacturer/supplier for repairs.
COMBASST is responsible for collecting freight and insurance fees from customers.
2). Warranty period: The customer is responsible for any freight and insurance.
7. If necessary, we can provide detailed documentation and remote technical support for equipment installation and configuration
