Product Details:
|
| Product Name: | LtAP LTE6 Kit/RBLtAP-2HnD&R11e-LTE6 | Brand Name: | MikroTik |
|---|---|---|---|
| Wi-Fi Supported Frequency:: | 2.4G | WAN Ports: | 1 |
| VAN Ports: | 1 | CPU Nominal Frequ: | 880MHz |
| Warranty: | 1 Year | PoE In Input Voltage: | 12-30 V |
| Max Power Consumption: | 24W | Function: | FireWall, QoS, VPN |
| Wireless 2.4 GHz Max Data Rate: | 300 Mbit/s | Supports WPS: | No |
| CPU: | MT7621A | ||
| High Light: | 880MHz Cat6 Optical Wifi Router,2.4G Cat6 Optical Wifi Router,MikroTik LtAP LTE6 Kit |
||

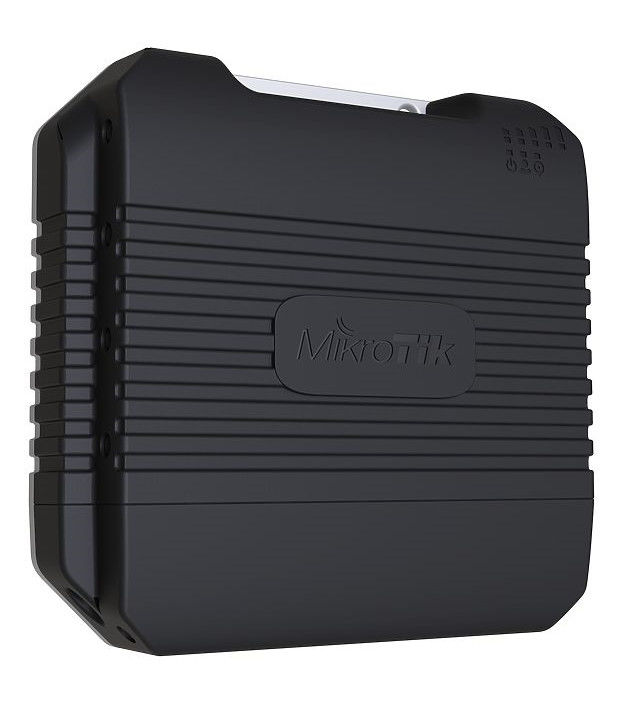

MikroTik (LtAP LTE6 kit) RBLtAP-2HnD&R11e-LTE6 cat6 wireless Optical Fiber Wifi router
LtAP LTE6 kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in CAT6 cellular modem that supports 4G (LTE) connectivity out of the box – with up to 300 Mbps download speed!
• 2.4 GHz AP in a rugged case
• LTE installed in miniPCIe slot
• Second miniPCIe slot for expansions
• Three Mini SIM slots
• Gigabit Ethernet port
• Built-in GPS
• Many powering options (DC jack, POE-in, automotive)
• Serial port and full size USB for other devices
• Perfect for cars or outdoor mobile applications
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
| Details | |
|---|---|
| Product code | RBLtAP-2HnD&R11e-LTE6 |
| Architecture | MMIPS |
| CPU | MT7621A |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -30°C to 70°C |
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 12-30 V |
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 12-30 V |
| Automotive input Voltage | 12-30 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 12 W |
| FAN count | Passive |
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | AR9382 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
| Details | |
|---|---|
| Number of SIM slots | 3 Modem (Mini SIM) |
| MiniPCI-e slots | 2 |
| Serial port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| RBLtAP-2HnD&R11e-LTE6 | MT7621A (880Mhz) 1G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.3 | 987.3 | 235 | 962.6 | 1207.4 | 618.2 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 175.3 | 718 | 177 | 90.6 |
| Routing | none (fast path) | 81.3 | 987.3 | 234.9 | 962.2 | 1067.6 | 546.6 |
| Routing | 25 simple queues | 81.2 | 986.1 | 216.2 | 885.6 | 222.5 | 113.9 |
| Routing | 25 ip filter rules | 81.2 | 986.1 | 112.5 | 460.8 | 110 | 56.3 |
