Product Details:
|
| Product Name: | PBE-5AC-Gen2-5 | Brand Name: | UBNT |
|---|---|---|---|
| Gain: | 25 DBi | Throughput: | 450+ Mbps |
| Type: | Fiber Optic Transceivers | Antenna Frequency:: | 5GHz |
| Application: | WiFi Bridge | Range: | 25+ Km |
| Max. Power Consumption:: | 8.5W | Warranty: | 1 Year |
| High Light: | 15Km Wireless Bridge PowerBeam,5G Wireless Bridge PowerBeam,PBE-5AC-Gen2-5 |
||

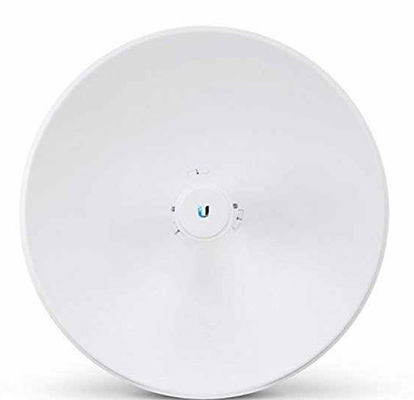

UBNT wireless bridge PowerBeam PBE-5AC-Gen2-5 5G Gigabit 15 km monitoring transmission
Features
1. Manage your Wi-Fi wireless radio
PowerBeam AC integrates separate Wi-Fi for quick and easy setup using a mobile device.
2. Improved mounting system and surge protection
Equipped with enhanced protection against ESD events, the PowerBeam AC offers a more durable mounting with a comfortable buckle and lifting handle.
3. Integrated radio architecture
Ubiquiti's InnerFeed technology integrates the radio with the antenna tube, so there is no need for connecting cables.
4. Plug-and-Play installation
PowerBeam AC does not require any special tools, only one key is needed for pole mounting.
5. A breakthrough in labor productivity
The airMAX ac devices offer improved latency and noise immunity, greatly enhanced performance and scalability.
6. Perfect data processing
Ubiquiti's airMAX engine with custom IC greatly improves TDMA latency and network scalability. The processor provides hardware capabilities for accelerating the airMAX schedule, ensuring high data transmission speed and dense modulation used in airMAX ac technology.
7. Incredible Beam antenna performance
The PowerBeam AC device has the highest amplification, and the excellent beam direction ensures the best performance in environments with high noise levels.
8. AirOS 8 software
AirOS 8's advanced features, including airMAX ac protocol support, real-time analysis of radio signals, and improved design ensure increased efficiency.

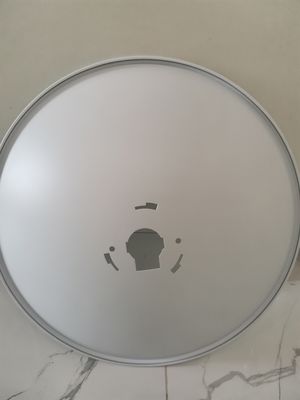

Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.
Specifications
| Features / filters | |
| Working frequency | 5 GHz |
| Number of LAN ports | 1x [10/100/1000M (RJ45)] |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |

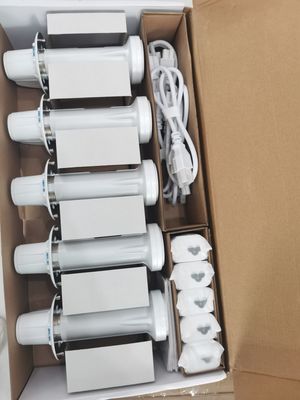

| Number of pieces in the package | 5-pack |
| RAM | 64MB |
| Number of pieces in the package | Passive PoE |
| Device type | Client device |
| Antenna gain | 21dBi - 30dBi |
| Basic technical parameters | |
| Dimensions | 420 × 420 × 230 mm |
| Weight | 2.22 kg |
| Power Supply | 24 V, 0.5 A Gigabit PoE |
| Voltage range | 20-26 V DC |
| Maximum power consumption | 8.5 W |
| Power method | Passive PoE (pairs 4, 5+; 7, 8 return) |
| Reinforcement | 25 dBi |
| Network interface | (1) 10/100/1000 port Ethernet |
| CPU specification | MIPS 74 Kc |
| Memory | 64 MB |
| LED lights | (1) power supply, (1) Ethernet, (4) signal strength |
| Supported bandwidths | Tryb PtP 10/20/30/40/50/60/80 MHz Tryb PtMP 10/20/30/40 MHz |
| Housing | External, plastic casing resistant to UV radiation |
| Mounting | Pole posts (parts included) |
| Wind resistance | 380 N @ 200 km/h |
| Maximum wind resistance | 200 km/h |
| ESD / EMP protection | _± 24 kV, kontakt ± 24 kV |
| Working temperature | -40 ° C to 70 ° C |
| Working humidity | 5 to 95% |
| RoHS Compliant | Yes |
| Corrosion resistance test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40 ° C (104 ° F) Equivalent: ETS 300 019-1-4 |
| Cloud burst test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Certificates | CE, FCC, IC |
| Working frequency (MHz) | 5150 - 5875 |
| Management Radio (MHz) | 2412 - 2472 |
Model Comparison
|
Model |
|
|
|
|
|---|---|---|---|---|
|
Frequency |
2.4 GHz |
5 GHz |
5 GHz |
5 GHz |
|
Throughput |
330+ Mbps |
450+ Mbps |
450+ Mbps |
450+ Mbps |
|
Range |
20+ km |
25+ km |
30+ km |
25+ km |
|
Management Radio |
yes |
|
|
yes |
