Product Details:
|
| Brand Name: | UBNT | Model Number: | AF-5XHD |
|---|---|---|---|
| Use: | Outdor | Dimensions: | 224 X 82 X 48 Mm (8.82 X 3.23 X 1.89") |
| Power Supply: | 24V, 1A PoE Gigabit Adapter (Included) | Operating Temperature:: | -40 To 55° C (-40 To 131° F) |
| Encryption: | 256-bit AES | Weight: | 0.35 Kg (12.3 Oz) |
| Data Port: | 10/100/1000 Ethernet Port | Maximum Throughput:: | 1.34Gbps 1, 2 |
| High Light: | 5GHz Microwave Wireless Bridge,1.34Gbps Microwave Wireless Bridge,UBNT AirFiber AF-5XHD |
||

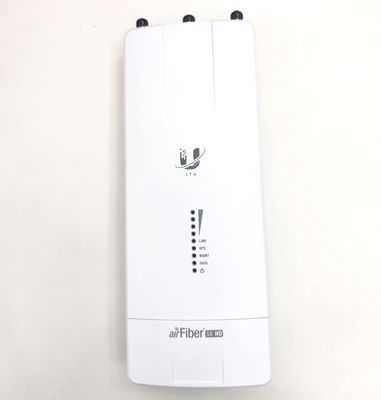

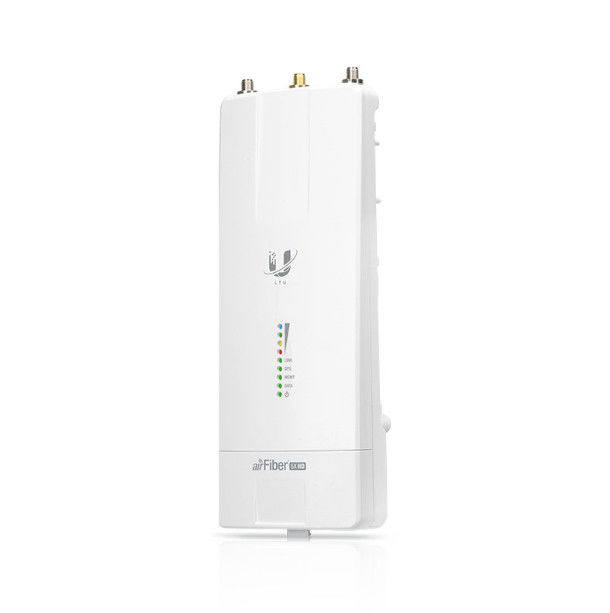

UBNT airFiber AF-5XHD 5GHz Gigabit throughput outdoor point-to-point microwave wireless bridge
* The new standard for WISP link performance
The PTP 1 Gbps + technology, specially designed for WISP, is extremely efficient in terms of frequency and noise immunity.
* Equipment adapted to WISP
The main processor for processing connections exceeds all limits associated with general Wi-Fi chips.
* LTU technology
Performance comparison of the 802.11n, 802.11ac, airFiber Original and LTU spectrum in individual years
* Ubiquiti airOS® LTU software
The AirFiber AF-5XHD uses Ubiquiti's airOS® LTU software, offering many advanced features to facilitate networking. The device is faster and easier to use and more resistant to interference, and unmatched performance is ensured by the frequency division and 4096 QAM functions.
* IP-67 resistance
The AirFiber 5XHD is waterproof and performs well in all weather conditions.
The airFiber AF-5XHD radio is designed for use with the following airFiber X antenna models:
The AF-5XHD can also operate with the following RocketDish™ antenna models:
* Requires Universal Bracket (included) or AF-5G-OMT-S45 Conversion Kit (not included).
|
|
WARNING: Failure to properly ground your airFiber radio will void your warranty. |
|---|
|
|
Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes. |
|---|
| AF-5XHD | |
|
Dimensions |
224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
|---|---|
|
Weight |
0.35 kg (12.3 oz) |
|
RF Connectors |
(2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
|
GPS Antenna |
External, Magnetic Base |
|
Power Supply |
24V, 1A PoE Gigabit Adapter (Included) |
|
Power Method |
Passive Power over Ethernet Pins 1, 2; 4, 5+ and Pins 7, 8; 3, 6- |
|
Supported Voltage Range |
+18 to +54VDC1 |
|
Max. Power Consumption |
6-12W2 |
|
Networking Interface |
|
| Data Port | (1) 10/100/1000 Ethernet Port |
| Management Port | (1) 10/100/1000 Ethernet Port Bluetooth v4.0 |
|
Mounting |
airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included) |
|
Operating Temperature |
-40 to 55° C (-40 to 131° F) |
|
Weatherproofing |
IP673 |
|
Certifications |
CE, FCC, IC |
1 Full range depends on Ethernet cable length.
2 Varies with firmware load and operational mode.
3 After installation of IP67 Upgrade Kit (included).
| System | |
|
Maximum Throughput |
1.34 Gbps1, 2 |
|---|---|
|
Encryption |
256-bit AES |
|
OS |
airOS LTU |
|
Wireless Modes |
Master/Slave |
1 May vary depending on environmental conditions.
2 Assuming 4096QAM (requires firmware version 1.1.2 or above).
| Radio | |
|
Max. Conducted TX Power |
29 dBm* |
|---|---|
|
Frequency Accuracy |
< 2 ppm |
|
Channel Bandwidth |
10/20/30/40/50/60/80/100 MHz Selectable Programmable Uplink and Downlink Duty Cycles |
| Operating Frequency (MHz) | ||
|
Worldwide |
4800 - 6200* | |
|---|---|---|
|
US/CA |
U-NII-1 |
5150 - 5250 |
|
U-NII-2A |
5250 - 5350 | |
|
U-NII-2C |
5470 - 5725 | |
|
U-NII-3 |
5725 - 5850 | |
* Depends on regulatory region.
| Bluetooth LE Management Radio (MHz) | |
|
Worldwide |
2400 - 2483.5 |
|---|---|
