Product Details:
|
| Product Name: | ER-10X | Brand Name: | UBNT |
|---|---|---|---|
| Weight: | 500 G (1.10 Lb) | WAN Ports: | 1 |
| VAN Ports: | 10 | Switching Capacity:: | 20Gbps |
| PoE In Port: | 10/100/1000 Mbps RJ45 Ports | Dimensions: | 207 X 31.1 X 90 Mm (8.15 X 1.22 X 3.54") |
| Max. Power Consumption:: | 8W | PSupported Voltage Range:: | Ange: 9 -30VDC |
| Operating Temperature: | -10 To 50° C (14 To 122° F) | Warranty: | 1 Year |
| High Light: | 20Gbps Gigabit Wired Router,NAT Hardware Acceleration Wired Router,UBNT ER-10X |
||

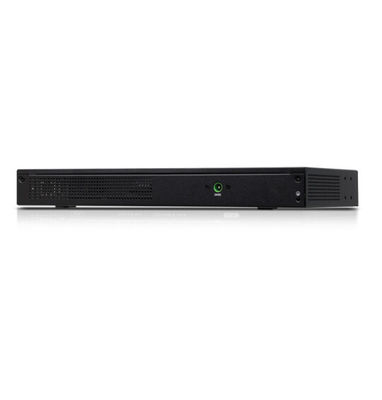

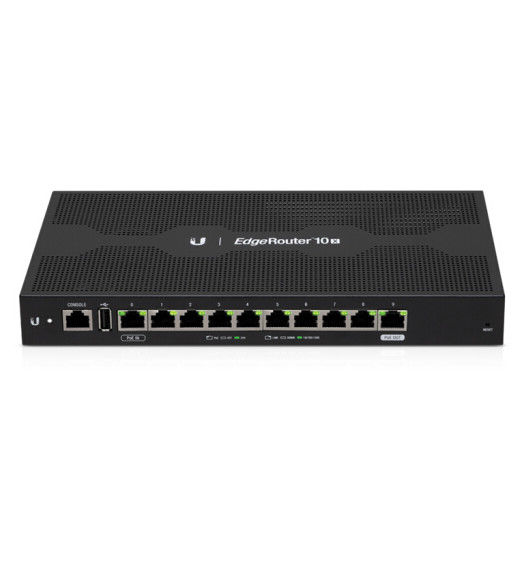

UBNT Gigabit wired router ER-10X 10-port carrier-grade NAT hardware acceleration
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
|
System LED |
|
|---|---|
| Flashing White | Bootup in Progress |
| White |
Ready for Use Not Connected to Ubiquiti® Network Management System (UNMS™) |
| Blue |
Ready for Use Connected to UNMS |
| Steady Blue with Occasional Flashing |
Ready for Use Unable to Connect to UNMS |
| Quickly Flashing Blue | Used to Locate a Device in UNMS |
| Alternating Blue/White | Firmware Upgrade in Progress |
|
RJ45 Speed/Link/Activity LED (Ports 1 - 8) |
|
| Off | No Link |
| Amber |
Link Established at 10/100 Mbps Flashing Indicates Activity |
| Green |
Link Established at 1000 Mbps Flashing Indicates Activity |
|
SFP Link/Activity LED (Ports 9 - 10) |
|
| Off | No Link |
| Green |
Link Established at 1 Gbps Flashing Indicates Activity |
|
RJ45 (Ports 1 - 8) |
|
|
RJ45 ports support 10/100/1000 Ethernet connections.
|
|
|
SFP (Ports 9 - 10) |
|
| Hot-swappable SFP ports support 1 Gbps connections. If you use a copper Ethernet module (example: UF-RJ45-1G), power off the EdgeSwitch before insertion; otherwise there may be a device reboot. | |
|
Reset Button |
|
|
To reset to factory defaults:
|
|
|
Power |
|
| Connect the included Power Adapter to the Power port. | |
|
Grounding Point |
|
| Ground bonding point for an optional ground wire. | |
| ES-10X | |
|
Dimensions |
207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54") |
|---|---|
|
Weight |
500 g (1.10 lb) |
|
Total Non-Blocking Throughput |
10 Gbps |
|
Switching Capacity |
20 Gbps |
|
Forwarding Rate |
14.88 Mpps |
|
Max. Power Consumption |
8W |
|
Power Method |
24VDC, 1A or 24V Passive PoE |
|
Supported Voltage Range |
9 -30VDC |
|
Power Supply |
24VDC, 1A Power Adapter (Included) or 24V Passive PoE |
|
LEDs |
|
| System | Status |
| RJ45 Data Ports | Link/Speed/Activity |
| SFP Data Ports | Link/Activity |
|
Networking Interfaces |
(8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
|
Management Interface |
Ethernet In-Band |
|
Certifications |
CE, FCC, IC |
|
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
|
Operating Temperature |
-10 to 50° C (14 to 122° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
| PoE (Port 8) | |
|
PoE Interface |
24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
|---|---|
|
Max. Passive PoE Wattage per Port |
15W |
|
24V Passive PoE Voltage Range |
24V |
