Overview:

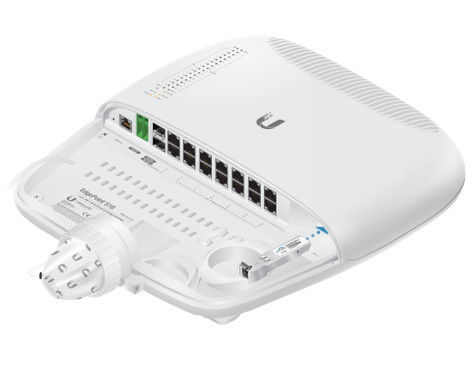

Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
For the EP-S16, layer-2 link aggregation provides similar redundancy and increased performance benefits.
Features:
* MSTP/RSTP/STP
* VLAN, Private VLAN, Voice VLAN
* Link Aggregation
* DHCP Snooping, IGMP Snooping
* TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
* DiffServ, CoS
* Static Routing, Policy-Based Routing
* 16 RJ45 Ethernet ports and two SFP+ ports
* Weatherproof Enclosure for Outdoor Use
* Powerful Routing or Switching Features
* Fiber Backhaul Capability
* Intuitive User Interface
Specifications
| EP-S16 | |
|
Dimensions |
326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50") |
|---|---|
| With Wall-Mount | 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15") |
|
Weight |
3.4 kg (7.50 lb) |
| With Wall-Mount | 3.8 kg (8.38 lb) |
|
Max. Power Consumption |
40W (Excludes PoE Output) |
|
Power Input |
(1) DC Terminal Block or (2) RJ45 (Ports 1 and 2) (Self-Correcting Polarity Protection on DC Terminal Block Only, |
|
Power Supply |
Min. 54V / 0.8A (Excludes PoE Output Power) |
|
VDC Input |
54V / 6A |
|
Passive PoE Input |
(2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 and 2 (Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.) |
|
Passive PoE Output |
(4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 to 4 (12) 802.3af/at or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8) Passive PoE, Ports 5 to 16 |
|
Power Monitoring |
(1) DC Terminal Block, Input Power (2) RJ45, Ports 1 and 2, PoE Input or Output Power (14) RJ45, Ports 3 to 16, PoE Output Power |
|
Supported Voltage Range |
+42 to +56VDC (-48V is NOT Supported) |
|
Button |
Reset |
|
LEDs |
|
| System | Power |
| PoE In | PoE |
| 1 to 16 | Speed/Link/Activity, PoE |
| SFP | Speed/Link/Activity |
|
Ports |
|
| Serial Console Port | (1) RJ45 Serial Port |
| Data Ports | (16) 10/100/1000 RJ45 Ports (2) 1/10 Gbps SFP+ Ports |
|
Pole/Wall Mount |
Yes |
|
Operating Temperature |
-40 to 65° C (-40 to 149° F) |
|
Operating Humidity |
10 - 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
FAQ
Q: Can we get samples?
A: Yes, but we need to charge a sample fee.
Q: Can you offer better prices? And discount?
A: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.
Q: Can you take care of the goods?
Answer: If you wish, we will organize and arrange all the deliveries to your office.
Q: How about the payment item?
Answer: T/T, PAYPAL, Western Union.
Q: Delivery time?
Answer: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.
Q: How long is your warranty period?
Answer: The warranty period is 12 months. This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
