Installation Requirements
-
Phillips screwdriver
-
Standard-sized, 19" wide rack with a minimum of 1U height available
-
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
-
For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
|
System LED |
|||
|---|---|---|---|
|
|||
|
Flashing White |
Bootup in progress. |
||
|
White |
Ready for use, not connected to Ubiquiti® Network Management System (UNMS™). See “UNMS Management”. |
||
|
Blue |
Ready for use, connected to UNMS. |
||
|
Steady Blue with Occasional Flashing |
Ready for use, unable to connect to UNMS, check connection to UNMS server. |
||
|
Quickly Flashing Blue |
Used to locate a device in UNMS. |
||
|
Alternating |
Firmware upgrade in progress. |
||
|
RJ45 PoE LED (Ports 1 - 24) |
|||
|
Off |
No PoE |
||
|
Amber |
IEEE 802.3af/802.3at |
||
|
Green |
24V Passive |
||
|
RJ45 Speed/Link/Activity LED (Ports 1 - 24) |
|||
|
Off |
No Link |
||
|
Amber |
Link Established at 10/100 Mbps Flashing Indicates Activity |
||
|
Green |
Link Established at 1000 Mbps (1 Gbps) Flashing Indicates Activity |
||
|
SFP Speed/Link/Activity LED (Ports 1 - 2) |
|||
|
Off |
No Link |
||
|
Green |
Link Established at 1 Gbps Flashing Indicates Activity |
||
|

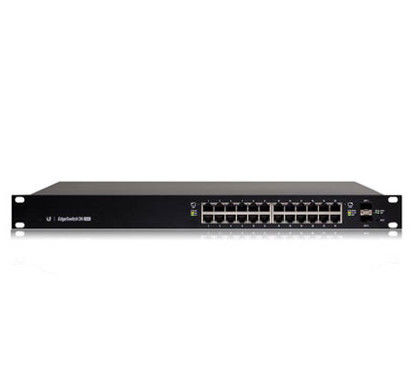

RJ45 (Ports 1 - 24) |
|||
|
RJ45 ports support Power over Ethernet (PoE) and 10/100/1000 Ethernet connections. |
|||
|
SFP (Ports 1 - 2) |
|||
|
Hot-swappable SFP ports support 1 Gbps connections. |
|||
|
Reset Button |
|||
|
Click here to learn how to reset an EdgeSwitch to factory defaults. |
|||
|
Console Port |
|||
|
RJ45 serial console port for Command Line Interface (CLI) management. |
|||
|

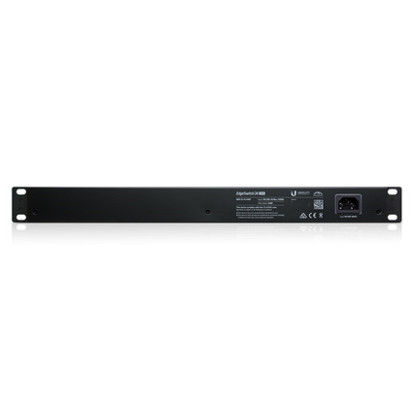

Power Port |
|||
|
Connect the included Power Cord to the Power port. |
|||
Specifications
|
ES-24-250W/ES-24-500W |
|
|
Dimensions |
485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") |
|---|---|
|
Weight |
|
|
ES-24-250W |
4.7 kg (10.4 lb) |
|
ES-24-500W |
4.8 kg (10.6 lb) |
|
Total Non-Blocking Line Rate |
26 Gbps |
|
Max. Power Consumption |
|
|
ES-24-250W |
250W |
|
ES-24-500W |
500W |
|
Power Method |
100-240VAC/50-60 Hz, Universal Input |
|
Power Supply |
|
|
ES-24-250W |
AC/DC, Internal, 250W DC |
|
ES-24-500W |
AC/DC, Internal, 500W DC |
|
LEDs Per Port |
|
|
Serial Console Port |
N/A |
|
RJ45 Data Ports |
PoE, Speed/Link/Activity |
|
SFP Data Ports |
Speed/Link/Activity |
|
Interfaces |
|
|
Networking Interfaces |
(24) 10/100/1000 Mbps RJ45 Ethernet Ports |
|
Management Interface |
(1) RJ45 Serial Port, Ethernet In/Out Band |
|
Rack-Mount |
Yes, 1U High |
|
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
PoE Per Port |
|
|
PoE Interfaces |
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
|---|---|
|
Max. PoE+ Wattage per Port by PSE |
34.2W |
|
Voltage Range 802.3at Mode |
50–57V |
|
Max. Passive PoE Wattage per Port |
17W |
|
24V Passive PoE Voltage Range |
20-27V |
