Management Power/Link LED |
|
---|---|
Off |
No Power/No Link |
Amber |
After bootup, the LED indicates power. After an initial link is established, the LED indicates a 10/100 Mbps connection. If the link terminates, the LED turns off until a link is re-established. If the unit reboots, the LED will again indicate power until a link is established. |
RJ45 PoE LED (Ports 1 - 5) |
|
Off |
No Power over Ethernet |
Green |
24V Power over Ethernet |
RJ45 Speed/Link/Act LED (Ports 1 - 5) |
|
Off |
No link |
Amber |
Link established at 10/100 Mbps |
Amber Flashing |
Link activity at 10/100 Mbps |
Green |
Link established at 1000 Mbps |
Green Flashing |
Link activity at 1000 Mbps |

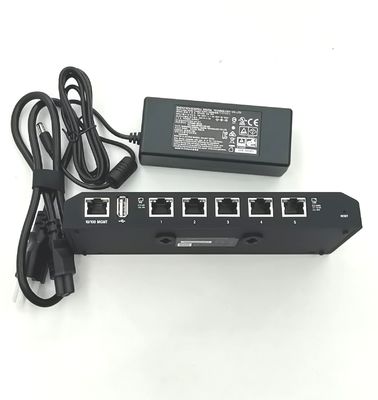

Management Port |
|
10/100 Mbps port used to access the EdgeSwitch Configuration Interface. |
|
USB Port |
|
Reserved for future use. |
|
RJ45 (Ports 1 - 5) |
|
10/100/1000 Mbps ports for switching and PoE (also available for management by default). |
|
Reset Button |
|
To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the unit is powered on. |
|

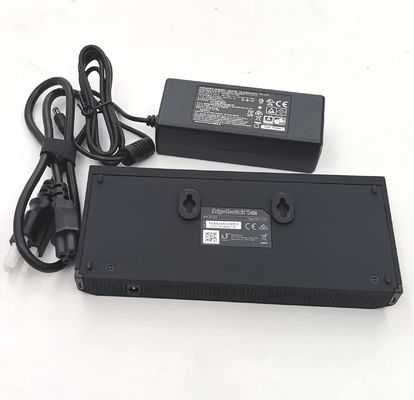

Power |
|
Connect the included Power Adapter to the Power port. |

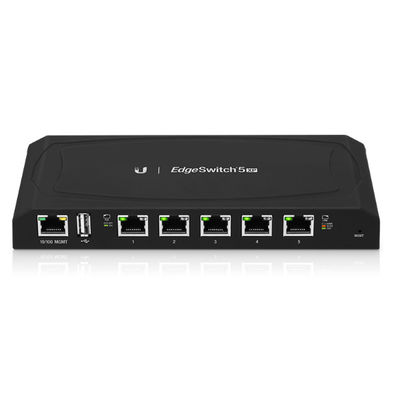

Specifications of ES-5XP
ES-5XP |
|
Dimensions |
197 x 87.5 x 27.3 mm (7.76 x 7.28 x 1.61") |
---|---|
Weight |
250 g (8.82 oz) |
Power Input |
24VDC, 2.5A Power Adapter (Included) |
Max. Power Consumption |
60W |
PoE Out Voltage Range |
22-24VDC |
Max. PoE Wattage Per Data Port |
11.5W |
ESD Rating |
±24 kV Air/Contact |
PoE Method |
Passive |
Button |
Reset |
USB Port |
2.0 Type A (Reserved for Future Use) |
Processor |
MIPS 24K, 400 MHz |
System Memory |
64 MB |
Code Storage |
8 MB |
PoE Configurable Per Port |
|
Management Port |
N/A |
Data Ports |
Off/24V |
LEDs Per Port |
|
Management Port |
Power/Link |
Data Ports |
PoE, Speed/Link/Activity |
Networking Interfaces |
|
Management Port |
(1) 10/100 Ethernet Port |
Data Ports |
(5) 10/100/1000 Ethernet Ports |
Operating Temperature |
-25 to 55° C (-13 to 131° F) |
Operating Humidity |
90% Noncondensing |
Certifications |
CE, FCC, IC |
Function of ES-5XP
Smart Service |
· Smart Wi-Fi sharing: ·Portal/802.1x authentication ·SoftGRE-based sharing · Association of one account with two POTS ports |
Smart interconnection |
· Smart Wi-Fi coverage · SIP/H.248 auto-negotiation ·Any port any service ·Parental control (V300R015C00) · L2/L3(IPv4) forwarding: 1G uplink, 2G downlink |
Layer 3 Features |
·PPPoE/Static IP/DHCP · NAT/NAPT · Port forwarding · ALG, UPnP · DDNS/DNS server/DNS client · IPv6/IPv4 dual stack, and DS-Lite · Static/Default routes · Multiple services on one WAN port |
QoS |
· Ethernet port rate limitation ·802.1p priority ·SP/WRR/SP+WRR · Broadcast packet rate limitation · Flow mapping based on the VLAN ID,port ID, or/and 802.1p |
Security |
· SPI firewall · Filtering based on MAC/IP/URL addresses |
Power Saving |
· Indicator power saving ·Power consumption reduction of idle components in power-saving state · COCv4 |
Smart O&M |
· Variable-length OMCI messages · Active/Passive rogue ONT detection and isolation · PPPoE/DHCP simulation testing · Call emulation, and circuit test and loop-line test |
Common O&M |
·OMCI/Web UI · Dual-system software backup and rollback ·802.1ag Ethernet OAM · Optical link measurement and diagnosis ·Loopback check |
Multicast |
·IGMP v2/v3 snooping · MLD v1/v2 snooping · Fast leave ·VLAN tag translation, transparent transmission, and removal for downstream multicast packets · IGMP/MLD protocol packet rate limitation |
Power Saving |
· Dynamic power saving · Indicator power saving · Scheduled Wi-Fi shutdown |
Ordering information
Type |
describe |
Hs8545M |
1*GPON(1490nm Rx,1310nm Tx,20Km,SC),1*GE+3*FE,1*Pots,2*2T2R WIFI,12V 1A Power supply,1*USB |
Ordering information of related products
Type |
describe |
HG8546M |
1*GPON(1490nm Rx,1310nm Tx,20Km,SC),1*GE+3*FE,or 4*FE,1*Pots,2*2T2R WIFI,12V 1A Power supply,1*USB |
HG8546V |
1*GPON(1490nm Rx,1310nm Tx,20Km,SC),4*GE,12V 1A Power supply,2*USB,1*Pots, 2*2T2R WIFI(support 2.4G/5G double frequency ) |
HG8310M |
1*GPON(1490nm Rx,1310nm Tx,20Km,SC),1*GE,12V 0.5A Power supply |
FAQ
Q1. Can I order samples of this product?
Answer: Yes, we welcome to order samples to test and check the quality. Mixed samples are acceptable.
Q2. What about the delivery time?
Answer: It takes 3-5 days for samples, and more than 1-2 weeks for mass production before ordering
Q3. Is there a minimum order quantity limit for sample orders?
Answer: The minimum order quantity, can provide 1 sample for inspection
Q4. How do you ship the goods and how long will it take to arrive?
Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea transportation are also optional.
Q5. How to order products?
Answer: First let us know your requirements or applications.
Secondly, we quote according to your request or our suggestion.
Third, the customer confirms the sample and deposits it into the formal order.
Fourth, we arrange production.
Q6: Do you provide guarantees for the products?
Answer: Yes, we provide 1 year warranty for the official product
