Product Details:
|
Brand Name: | UBNT | Model Number: | UAP-AC-PRO |
---|---|---|---|
Use: | Outdor | Type: | Fiber Optic Transceivers |
Dimensions: | 196.7 X196.7 X 35 Mm | Ports: | 10/100/1000 Ethernet |
Maximum Power Consumption: | 9W | Weight: | 350 G (12.35 Oz) |
Operating Temperature: | -40 To 70° C (-40 To 158° F) | Warranty: | 1 Year |
High Light: | 802.3af ap ceiling mount,9W access point poe gigabit,poe wireless access point ceiling mount |

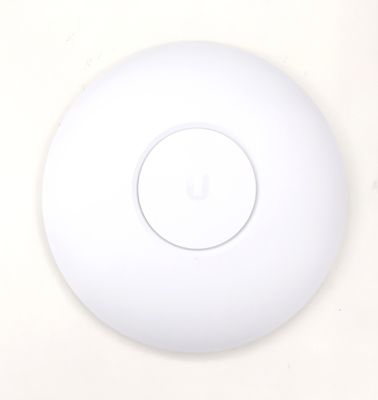

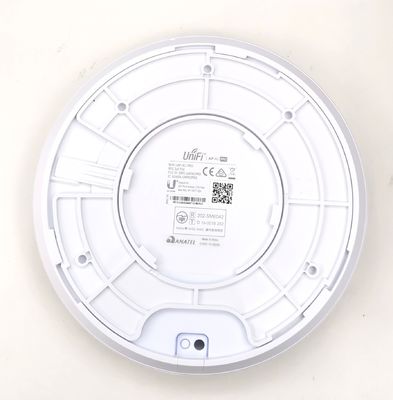

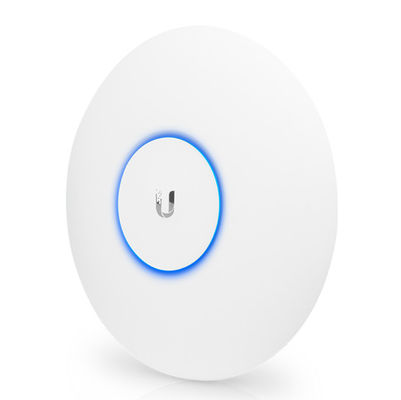

UBNT Wireless AP UAP-AC-PRO 802.3af POE Indoor Ceiling Enterprise Gigabit Dual Frequency WiFi Coverage
Powering the UniFi AP
The UAP-AC-PRO features auto-sensing 802.3af/802.3at PoE support and can be powered by any of the following:
Ubiquiti UniFi Switch with PoE
802.3af/802.3at PoE+ compliant switch
Ubiquiti Gigabit PoE Adapter (48V, 0.3A)
The single-pack of the UAP-AC-PRO includes one Gigabit PoE adapter. For multi-pack units, PoE adapters or a UniFi Switch with PoE may be purchased separately.
Festures
1. Up to 5X Faster with Dual-Radio 3x3 11AC MIMO Technology
3. Scalable Enterprise Wi-Fi Management
The Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the Controller to upgrade deployed APs while in the field.
Specifications
UAP-AC-PRO |
|
Dimensions |
196.7 x196.7 x 35 mm (7.74 x 7.74 x 1.38") |
---|---|
Weight
|
350 g (12.35 oz) 450 g (15.87 oz) |
Networking Interface |
(2) 10/100/1000 Ethernet Ports |
Buttons |
Reset |
Power Method |
PoE 802.3af/802.3at |
Power Supply |
48V, 0.3A Gigabit PoE Adapter* |
Max. Power Consumption |
9W |
Operating Frequency |
2.4 GHz 5 GHz |
Max. TX Power
|
|
Antennas |
(3) Dual-Band Antennas, 3 dBi each |
Wi-Fi Standards |
802.11 a/b/g/n/ac |
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
Mounting |
Wall/Ceiling (Kits Included) |
Operating Temperature |
-10 to 70° C (14 to 158° F) |
Operating Humidity |
5 to 95% Noncondensing |
Certifications |
CE, FCC, IC |
* Included with the single-pack of the UAP-AC-PRO
Model Comparison
|
|||||
---|---|---|---|---|---|
Dimensions |
∅160 x 31.45 mm |
∅175.7 x 43.2 mm |
∅196.7 x 35 mm |
∅287.5 x 125.9 mm |
∅220 x 48.1 mm |
Environment |
Indoor |
Indoor |
Indoor/Outdoor |
Indoor |
Indoor/Outdoor |
2.4 GHz Speed |
300 Mbps |
450 Mbps |
450 Mbps |
450 Mbps |
800 Mbps |
5 GHz Speed |
867 Mbps |
867 Mbps |
1300 Mbps |
1300 Mbps |
1733 Mbps |
PoE Mode |
802.3af/A PoE & 24V PoE |
802.3af/A PoE & 24V PoE |
802.3af PoE/802.3at PoE+ |
802.3at PoE+ |
802.3at PoE+ |
Ports |
(1) 10/100/1000 Ethernet |
(1) 10/100/1000 Ethernet |
(2) 10/100/1000 Ethernet |
(2) 10/100/1000 Ethernet |
(2) 10/100/1000 Ethernet |
