Product Details:
|
| Brand Name: | UBNT | Model Number: | AM-3G18-120 |
|---|---|---|---|
| Dimensions: | 735 X 144 X 78 Mm | Frequency: | 3.3 - 3.8 GHz |
| Max. VSWR: | 1.5:1 | Weight (Mount Included): | 5.9 Kg |
| Gain: | 3.3 - 3.8 GHz | Wind Survivability: | 200 Km/h |
| Warranty: | 1 Year | ||
| High Light: | Dual Polarized Sector Antenna,18dBi Gain Sector Antenna,120 Degree airmax sector |
||

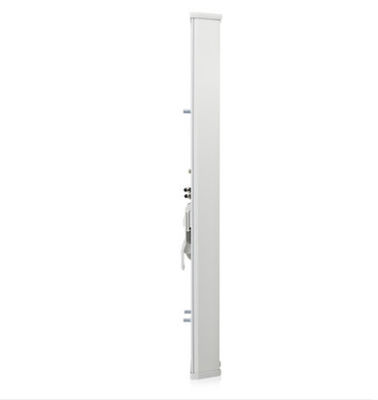

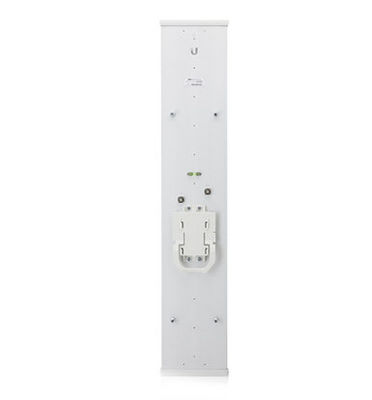

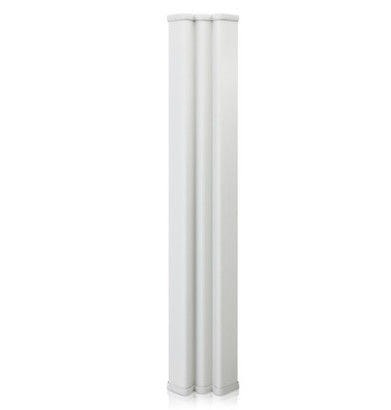

UBNT 3GHz dual-polarized sector antenna airMAX AM-3G18-120 120 degree 18dBi gain
Installation Requirements
Rocket®M3/M3 GPS or RocketM365/M365 GPS (sold separately)
12 mm and 13 mm wrenches
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Specifications
|
AM-3G18-120 |
|
|
Dimensions |
735 x 144 x 78 mm (28.94 x 5.67 x 3.07") |
|---|---|
|
Weight (Mount Included) |
5.9 kg (13 lbs) |
|
Frequency |
3.3 - 3.8 GHz |
|
Gain |
17.3 - 18.2 dBi |
|
HPOL Beamwidth |
118° (6 dB) |
|
VPOL Beamwidth |
121° (6 dB) |
|
Elevation Beamwidth |
6° |
|
Electrical Downtilt |
3° |
|
Max. VSWR |
1.5:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
146.8 N @ 200 km/h (33 lbf @ 125 mph) |
|
Polarization |
Dual Linear |
|
Cross-Pol Isolation |
28 dB Min. |
|
ETSI Specification |
EN 302 326 DN2 |
|
Mounting |
Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
