UF-OLT 8 Port GPON Optical Line Terminal With 10G SFP+ Ports

UF-OLT 8 Port GPON Optical Line Terminal With 10G SFP+ Ports
UF-OLT 8 Port GPON Optical Line Terminal With 10G SFP+ Ports UF-OLT 8 Port GPON Optical Line Terminal With 10G SFP+ Ports

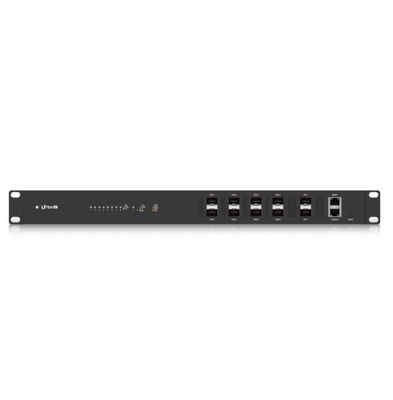

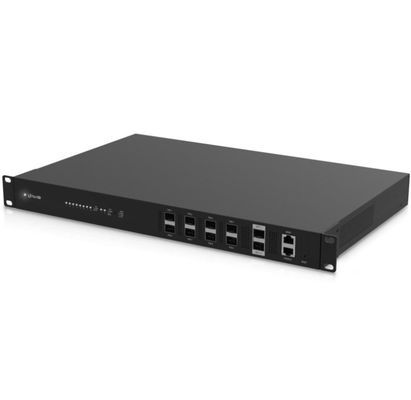

Large Image :  UF-OLT 8 Port GPON Optical Line Terminal With 10G SFP+ Ports

Product Details:
Place of Origin: China, Guangdong
Brand Name: UBNT
Model Number: UF-OLT
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: new in the box .
Delivery Time: 5-8days
Payment Terms: T/T, Western Union

UF-OLT 8 Port GPON Optical Line Terminal With 10G SFP+ Ports

Description
Model: UF-OLT Weight: 4.400 Kg (9.70 Lb)
Power Method: 110 - 240VAC Modular PSU System Memory: 512 MB DDR3, 512 MB NAND
Dimensions: 442.4 X 285.6 X 43.7 Mm Max. Power Consumption: 40W (Excluding SFP Transceivers)
Supported Voltage Range: AC Input: 100 To 240VAC Warranty: 1 Year
High Light:

8 port GPON Optical Line Terminal

,

10G SFP+ GPON Optical Line Terminal

,

40W GPON Optical Line Terminal

UBNT UF-OLT 8-port GPON Optical Line Terminal with 1G/10G SFP+ Ports



Optical Line Terminal

U Fiber OLT supports up to 128 ONU CPEs per GPON port with physical links of up to 20 km in distance. It also features SFP+ connectivity for uplinking. The UFiber OLT can be mounted in a 1U rack, mounted on a wall, or placed on a desktop.
Management options include the Gigabit Ethernet port (out of band), RJ45 serial console port (CLI), and uplink (in band) configured via the UFiber UI or UNMS.

4 Port GPON Optical Line Terminal

GPON SFP and (1) SFP+ Ports

512 ONUs Total Concurrent Clients (128 Clients per Port)

35W Max. Power Consumption

100 240VAC, 50/60 Hz, Universal Power Input and Secondary Power Option: 24VDCUF4

Specifications

UF-OLT-4

Dimensions

299.80 x 258.95 x 42.55 mm
(11.8 x 10.2 x 1.7")

Weight



Without Mount Brackets

1.93 kg (4.25 lb)

With Mount Brackets

2.13 kg (4.70 lb)

Max. Power Consumption

35W (Excluding SFP Transceivers)

Power Method

110 240VAC Modular Port

Power Supply

AC/DC Internal 56W DC

Supported Voltage Range

100 240VAC; 16 25VDC

Button

Reset

Processor

MIPS 1004Kc 880 MHz Dual Core

System Memory

512 MB DDR3, 512 MB NAND

LEDs



System

Status

PON Data Ports

Link/Activity

SFP+ Data Ports

Link/Activity

RJ45 (MGMT) Port

Link/Activity

Interfaces



Data Ports

(4) GPON OLT
(1) 1G/10G SFP+ Ports

Management Port

(1) RJ45 Ethernet Port

Serial Console Port

(1) RJ45 Serial Port

Rackmount

Yes

Operating Temperature

10 to 45° C (14 to 113° F)

Operating Humidity

10 90% Noncondensing

Certifications

CE, FCC, IC

GPON SFP OLT Transceiver
(UF GP B+)

Single Fiber, SM SC/UPC, 20 km,

1490 nm TX/1310 nm RX,

ITU T G984.2 Class B+



UF-OLT 8 Port GPON Optical Line Terminal With 10G SFP+ Ports 0
