Product Details:
|
| Type: | Optical Fibers | Product Name: | UF-SM-10G-S |
|---|---|---|---|
| Use: | FTTX | Warranty: | 1 Year |
| High Light: | SFP+ single fiber module,1330nm lc sfp module,UF-SM-10G-S |
||

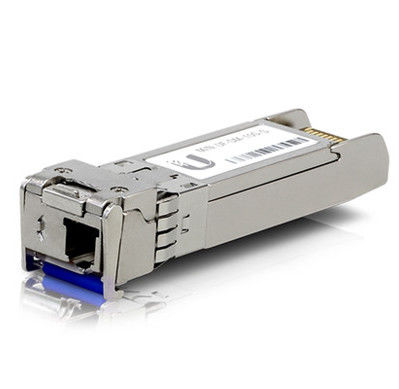

A pair of UBNT UF-SM-10G-S SFP+ single fiber module 1330nm 10G 1 LC interface 10km
Two multi-mode models are available:
- UF-MM-1G: SFP, 1 Gbps
- UF-MM-10G: SFP+, 10 Gbps
Three single-mode models are available:
- UF-SM-1G-S: SFP, 1 Gbps, BiDi
- UF-SM-10G: SFP+, 10 Gbps
- UF-SM-10G-S: SFP+, 10 Gbps, BiDi
Indoor Runs
For convenient multi-mode connections that extend beyond the 100-meter limitation of Ethernet cabling, use the UF-MM-10G for distances of up to 300 m and speeds of up to 10 Gbps, or use the UF-MM-1G for distances of up to 550m and speeds of up to 1 Gbps.
Outdoor Use
For long-distance single-mode runs, use the UF-SM-10G for distances of up to 10 km at 10 Gbps, or use the UF-SM-1G for distances of up to 3km at 1 Gbps. To protect DC power and fiber, deploy EdgePoint™ with EdgePower™.

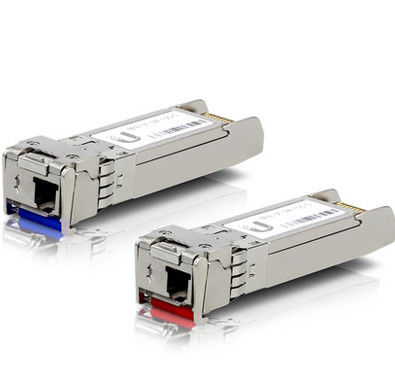

Deploy a BiDi (BiDirectional) model, UF-SM-1G-S or UF-SM-10G-S, to maximize re-use of existing infrastructure. You must deploy a BiDi model as a paired set of modules because the pair uses two different wavelengths, upstream and downstream, on a single fiber.
|
Model
|
UF-MM-1G | UF-MM-10G | UF-SM-1G-S | UF-SM-10G | UF-SM-10G-S | ||
|
Supported Media
|
Multi-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber | Single-Mode Fiber | Single-Mode Fiber | ||
|
Connector Type
|
(2) LC | (2) LC | (1) LC | (2) LC | (1) LC | ||
|
TX Wavelength
|
850 nm | 850 nm | Blue | Yellow | 1310 nm | Blue | Red |
| 1310nm | 1550nm | 1270nm | 1330nm | ||||
|
RX Wavelength
|
850 nm | 850 nm | Blue | Yellow | 1310 nm | Blue | Red |
| 1550nm | 1310nm | 1330nm | 1270nm | ||||
|
Data Rate
|
1.25 Gbps SFP | 10 Gbps SFP+ | 1.25 Gbps SFP | 10 Gbps SFP+ | 10 Gbps SFP+ | ||
|
Cable Distance
|
550 m | 300 m | 3 km | 10 km | 10 km | ||
Model Comparison:
