Product Details:
|
| Model Number: | TN13FIU03 | Brand: | HuaWei |
|---|---|---|---|
| AC Power Service Boards: | 15 Slots | Application: | FTTH FTTB FTTX Network |
| Dimensions(mm): | 264.6 Mm (10.4 In.) X 25.4 Mm (1.0 In.) X 220 Mm (8.7 In.) | Weight(kg): | 0.9 Kg (2.0 Lb.) |
| DC Power Service Boards: | 16 Slots | Warranty: | 1 Year |
| High Light: | HuaWei OSN6800 FIU board,03030QEW FIU board,TN13FIU03 |
||

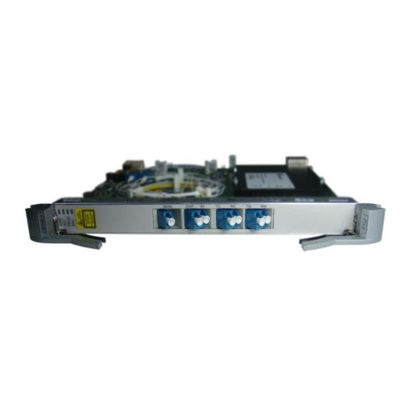

HuaWei OSN6800 FIU board TN13FIU03 03030QEW Fiber Optic Line Interface Board
HuaWei OSN6800 Business Board TN13FIU03 03030QEW Fiber Optic Line Interface Board FIU
Features of TN13FIU03
The FIU board multiplexes and demultiplexes C-band wavelengths, and supports in-service monitoring of optical power performance.
Describes the functions and features of the FIU board.
| Function and Feature | Description |
|---|---|
| Basic function | Multiplexes the main channel signal and the OSC signal onto a single communications channel, and vice versa. |
| In-service optical performance monitoring | Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic. |
| Optical-layer ASON | Supported |
Specifications of TN13FIU03
Power Consumption
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN12FIU/TN14FIU | 4.2 | 4.6 |
| TN13FIU | 0.2 | 0.3 |
| TN15FIU | 6.0 | 6.6 |
| TN16FIU | 6.0 | 6.5 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
Optical specifications of the FIU board
| Interface | Parameter | Unit | Value |
|---|---|---|---|
| - | Operating wavelength range | nm | 1529-1561 |
| - | Operating wavelength range of the OSC signal | nm |
TN12FIU/TN13FIU01/TN13FIU02/TN15FIU:1500-1520 TN13FIU03/TN14FIU/TN16FIU:1480-1520 |
| - | Optical return loss | dB | > 40 |
|
IN-TM RM-OUT |
Insertion loss | dB | ≤ 1.5 |
|
IN-TC RC-OUT |
Insertion loss | dB | ≤ 1 |
| IN-TM | Isolation | dB |
TN12FIU/TN13FIU01/TN13FIU02/TN14FIU/TN15FIU: >40 TN13FIU03/TN16FIU: ≥55 |
| IN-TC | Isolation | dB |
TN12FIU/TN13FIU01/TN13FIU02/TN14FIU/TN15FIU: >12 TN13FIU03/TN16FIU:≥40 |
| - | Polarization dependent loss | dB | < 0.2 |
Related specifications
FAQ
Q: What is the warranty period?
Answer: The free warranty is one year from the date of qualified commissioning. During the free warranty period, if there is any failure of our product, we will repair it and replace the defective component free of charge. Q: What are your payment terms?
Q: How long is your delivery time?
Answer: General delivery time: 5-8 days.
Q1: Can I negotiate the price?
A1: Yes, we can consider the mixed cargo load of multiple containers.
Q2: How much is the shipping cost?
A2: It depends on the size of your cargo and the method of transportation. We will charge you according to your request.
Q3: Is the board new or refurbished?
A3: This is brand new and has not been used yet.
Q4: If my system is not compatible, can I return/replace the motherboard?
A4: Yes, please tell our sales team the version of your system and main control board before purchasing.
Q5: What should we do if we encounter quality problems when we receive the goods?
A5: If there are quality problems when unpacking, you can take a picture as a reference. Our quality control department will check the problem and provide you with the best solution.
If you have any questions, please feel free to contact us, we will provide you with quality service.
