10 Gigabit Ethernet Data Fiber Optic Switch CE6851-48S6Q-HI HuaWei Enterprise

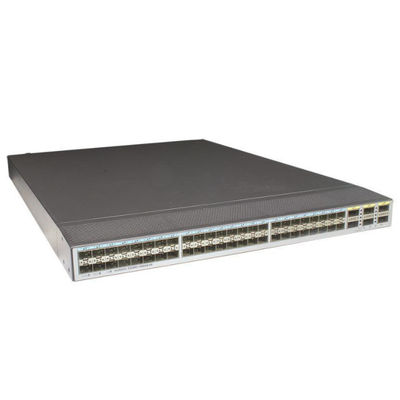

CE6851-48S6Q-HI HuaWei Enterprise 48-port 10 Gigabit Ethernet Data Fiber Optic Switch
Overview of CE6851-48S6Q-HI
CE6851-48S6Q-HI is HW CE6851-48S6Q-HI Switch(48-Port 10G SFP+,6-Port 40GE QSFP+,2*FAN Box,Port-side Intake,Without Power Module). Support for Fiber Channel over Ethernet (FCoE) allows a single network to carry storage, data, and computing services,reducing network construction and maintenance costs The industry.
Features of CE6851-48S6Q-HI
Optimize high-density, low-latency switching, and simplify provisioning and management of IT services with Huawei CE6800 Series 10 GE Switches
* Support for Fiber Channel over Ethernet (FCoE) allows a single network to carry storage, data, and computing services, reducing network construction and maintenance costs
* The industry’s first 16-member stack system and Huawei’s Super Virtual Fabric (SVF) functionality achieve vertical scalability,simplifying network management and improving reliability
* High-performance hardware gateway of an overlay network (VXLAN) to achieve online Virtual Machine (VM) migration and policy mobility
* The Open Programmability System (OPS) supports numerous open Application Programming Interfaces (APIs) for interoperability,while Zero-Touch Provisioning (ZTP) achieves zero-configuration deployment, on-demand network customization, and automated Operations and Maintenance (O&M)
Specification of CE6851-48S6Q-HI
|
CE6851-48S6Q-HI
|
|
Transmission Rate
|
100G
|
|
Buffer
|
32 MB
|
|
Power source type
|
AC/DC
|
|
DRAM Memory
|
|
|
Switching Capacity
|
1.44 Tbit/s
|
|
Maximum Power Consumption
|
245 W
|
|
Forwarding Rate
|
|
|
NOR Flash
|
16MB
|
|
Dimensions (W x D x H)
|
442.0 mm x 420.0 mm x 43.6 mm
|
|
Weight (fully loaded)
|
8.7 kg
|
|
IPV6
|
Supports IPv6 ND (Neighbor Discovery)
Support PMTU Discovery (Path MTU Discovery)
Support IPv6 TCP, Ping, Tracert, Socket, UDP, RawIP
|
|
Multicast
|
Support IGMP, PIM-SM, MSDP, MBGP and other multicast routing protocols
Support IGMP Snooping
Support IGMP Proxy
Support multicast member interface to leave quickly Support multicast traffic suppression
Support multicast VLAN
|
|
MPLS
|
Supports MPLS (CE6800HI)
|
|
Reliability
|
Support LACP
Support STP, RSTP and MSTP
Support BPDU protection, Root protection, loop protection Support SmartLink and multiple instances
Support DLDP Support ERPS Ethernet ring protection protocol (G.8032)
Support VRRP, VRRP load sharing, BFD for VRRP
Support BFD for BGP/IS-IS/OSPF/static routing
|
|
QoS
|
Supports combined flow classification based on Layer 2 protocol header, Layer 3 protocol, Layer 4 protocol priority, etc.
Support ACL, CAR, Remark, Schedule and other actions Support PQ, WRR, DRR, PQ+WRR, PQ+DRR and other queue scheduling methods
Support congestion avoidance mechanisms such as WRED and tail drop
Support traffic shaping
|
|
Configuration and maintenance
|
Support terminal services such as Console, Telnet, SSH, etc.
Support SNMPv1/v2c/v3 and other network management protocols
Support uploading and downloading files via FTP and TFTP Support BootROM upgrade and remote online upgrade Support hot patch
Support user operation log
Support ZTP
|
|
Security and management
|
Support 802.1x authentication
Command line hierarchical protection, unauthorized users cannot invade
Support anti-DOS, ARP attack function, ICMP anti-attack Support port isolation, port security, Sticky MAC
Support combination binding of IP, MAC, port, VLAN Support multiple authentication methods such as AAA, Radius, HWTACACS, etc.
Support RMON
|
Related product overview
|
|
|
|
|
|
Downlink Ports
|
48 x 10 GE Base-T
|
48 x 10 GE SFP+
|
48 x 10 GE SFP+
|
|
Uplink Ports
|
6 x 40/100 GE QSFP28
|
6 x 40/100 GE QSFP28
|
4 x 40/100 GE QSFP28
|
|
Switching Capacity
|
2.16 Tbit/s
|
2.16 Tbit/s
|
1.76 Tbit/s
|
|
Buffer
|
4 GB
|
|
Reliability
|
LACP
BFD for BGP, IS-IS, OSPF, Static route, and VXLAN
|
|
MPLS
|
L3VPN
VPLS
|
|
O&M
|
Telemetry
Netstream
sFlow
ERSPAN
|
Telemetry
Netstream
sFlow
ERSPAN
|
Telemetry
Netstream
sFlow
Enhanced ERSPAN
|
|
Data Center Features
|
VXLAN routing and bridging
BGP EVPN
iStack2 and M-LAG
DCBX, PFC, and ETS
|
|
Maximum Power Consumption
|
405 W
|
333 W
|
407 W
|
|
Power Supply
|
AC: 600 W
DC: 600 W
|
AC: 600 W
DC: 350 W
|
AC: 600 W AC & 240 V DC
HDC: 600 W
DC: 1200 W
|
|
Operating Voltage
|
AC: 90 V to 290 V
DC: -38.4 V to -72 V
|
AC: 90 V to 290 V
DC: -38.4 V to -72 V
|
AC: 90 V to 290 V
HDC:
240 V (188 V to 288 V)
380 V (188 V to 400 V)
DC: -38.4 V to -72 V
|
|
|
|
|
|
CE6850U-48S6Q-HI
|
CE6850U-24S2Q-HI
|
CE6855-48S6Q-HI
|
CE6855-48T6Q-HI
|
CE6851-48S6Q-HI
|
CE6850-48T6Q-HI
|
CE6850-48S6Q-HI
|
CE6850-48T4Q-EI
|
CE6850-48S4Q-EI
|
|
|
0
|
0
|
0
|
48
|
0
|
48
|
0
|
48
|
0
|
|
SFP+ Ports
|
48
|
24
|
48
|
0
|
48
|
0
|
48
|
0
|
48
|
|
FC Ports
|
48
|
24
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
|
QSFP+ Ports
|
6
|
2
|
6
|
6
|
6
|
6
|
6
|
4
|
4
|
|
Switching Capacity
|
2.56Tbps/40.96Tbps
|
1.28Tbps/20.48Tbps
|
|
Forwarding Rate
|
1080 Mpps
|
480 Mpps
|
1080 Mpps
|
1080 Mpps
|
1080 Mpps
|
1080 Mpps
|
1080 Mpps
|
960 Mpps
|
960 Mpps
|
|
Data Center Features
|
VXLAN (CE6800HI)routing and bridging
BGP EVPN(CE6800HI)
iStack2 and M-LAG
TRILL, and ETS
|
|
IP
|
IPv4 IPv6
|
|
MPLS
|
CE6800HI
|
|
Environmental requirements
|
Operating temperature: 0°C ~ 40°C (0m ~ 1800m) storage temperature: -40°C ~ +70°C, relative humidity: 5%RH ~ 95%RH,non-condensation
|
Product Selling Points
1. Deep Buffering
Easily cope with burst traffic on the network with a 4 GB ultra-large buffer capability – 80 times higher than the industry
average.
2. Intelligence
Simplify your operations with intelligent O&M, proactive reporting of gRPC high-speed data, proactive detection of network-wide
paths, and real-time monitoring of network health status.
3. Interoperability
Features open capabilities to interwork with multiple vendors and create SDN networks, evidenced by the Best of ShowNet Award
granted at Interop Tokyo 2016.
