ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway

ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway
ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway

Large Image :  ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway

Product Details:
Place of Origin: Guangdong, China
Brand Name: ZTE
Model Number: F673AV9
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway

Description
Type: Optical Fiber Wifi Router Bland: ZTE
Model: F673AV9 Ports: 4ge+1phone+2.4&5G Wifi+1usb
Dimension: 250*220*65mm(length*width*height) RX Sensitivity: <-27dBm (1490nm)
Power: ≤8W Warranty: 1 Year
High Light:

F673AV9 Optical Fiber Wifi Router

,

ZTE ZXHN F673AV9

,

4GE Optical Fiber Wifi Router

 ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway

ZTE ZXHN F673AV9 GPON terminal routing four-port dual-band WiFi 5G English version Gigabit Smart Gateway

ZTE ZXHN F673AV9 FTTH Product Overview

ZTE ZXHN F673AV9 FTTH is ZTE ZXHN F673AV9 FTTH is GPON optical terminal with 4GE +1POT+ 2USB and Dual band Port.

Model Configuration Dimension/pcs
LAN Telephone WIFI PPPOE FIRMWARE
F673A v2 4GE 1POTS 2.4G/5.0 SUPPORT ENGLISH 240*200*58mm/



ZTE F673A V9 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber build intelligent home network.

ZTE GPON ONT series products are mainly used in the construction of FTTH (fiber-to-the-home) and FTTO (fiber-to-the-office) scenarios, giving operators with green environmental protection, high reliability, easy operation and maintenance, and meeting multiple application scenarios. Even gigabit bandwidth brings endless possibilities for users’ home network service.

ZTE ZXHN F679AV2 FTTH Product Specifications

Technical items Descriptions
Brand ZTE
Model F673V9
Fiber port 4GE+1POT+1USB+WIFI,SC single-mode,
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/UPC
RX sensitivity <-27dBm (1490nm)
WLAN IEEE802.11b/g/n,2*2 MIMO, 2.4G/5G WIFI,external antenna(2dBi)
2.4GHz: 2 x 2 MIMO 802.11b/g/n ,5GHz: 2 x 2 MIMO 802.11a/n/ac
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
L2 forwarding capability Forwarding packets of any length at wire speed
IPv4 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
Configuration method NMS, Web, or TR069
Voice protocol SIP, H.248
DC power Adapter input: 100-240 V AC, 50 – 60 Hz ;
Adapter output: 11 – 14 V DC, 1 A
Button Reset, power
Power ≤8W
Operation Working temperature: -0-+40℃
working humidity:5-95%(non-condensation)
Dimension 250*220*65mm(length*width*height)
Net weight ≤0.8Kg



ZTE ZXHN F673AV2 FTTH Product Feature

  • Ultra-wide: one deployment, continuous upgrade of network capacity
    Each PON port of the POL network has a bandwidth of up to 10G. When there is a higher bandwidth requirement, the optical fiber does not need to be replaced, only the equipment or optical modules at both ends need to be replaced, simplifying the upgrade steps and saving upgrade costs.
  • Simplified: energy saving and land saving, simple operation and maintenance
    The POL solution can reduce the computer room by about 80% and can achieve energy savings of up to 60%.
    The POL network has a simple hierarchy, which is convenient for maintenance and management, reduces failure points, and improves network reliability. Network operation and maintenance expenses can be reduced by more than 60%.
  • Convergence: One optical fiber carries all services
    A set of POL network can provide 1000M Ethernet port, POTS, CATV, Wi-Fi, RS232/485 serial port, PoE port, time synchronization interface, etc. There is no need to establish multiple sets of networks to carry multiple services.
  • Security: Provide multiple security protection mechanisms

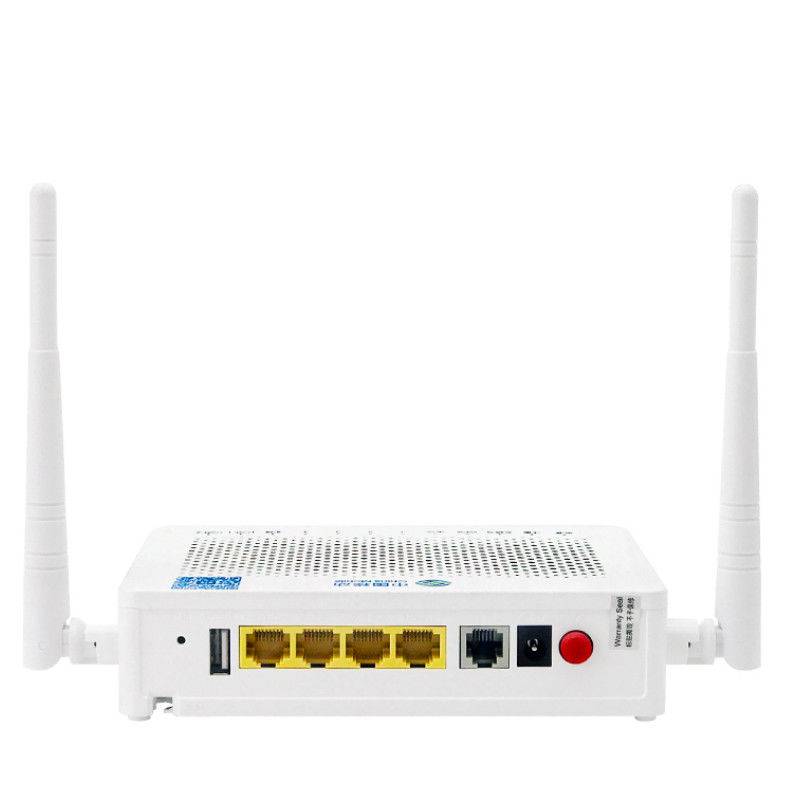

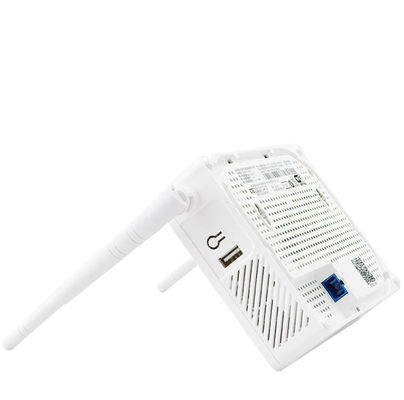

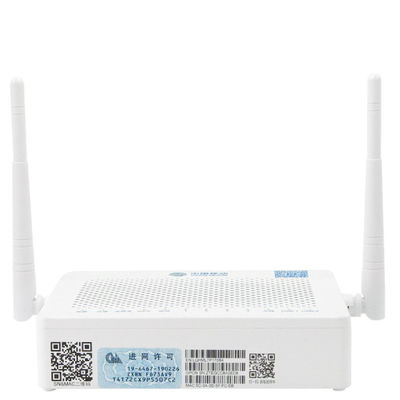

ZTE ZXHN F673AV2 FTTH Product display

ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway 0ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway 1

ZTE ZXHN F673AV9 Optical Fiber Wifi Router 5G English Version Gigabit Smart Gateway 2
