Product Details:
|
| Type: | Optical Fiber Wifi Router | Bland: | HuaWei |
|---|---|---|---|
| Model: | HS8545M5 | CEnternet Ports: | 1GE+3FE |
| Router (PoE): | Yes | Wifi: | Yes |
| Optical Port (line Terminal): | GPON Interface (SC/UPC) | Warranty: | 1 Year |
| High Light: | SC UPC Optical Fiber Wifi Router,HS8545M5 Optical Fiber Wifi Router,HS8545M5 |
||
SC UPC Optical Fiber Wifi Router HS8545M5 1GE 3FE WIFI 5db English version
HuaWei's new HS8545M5 1GE+3FE WIFI 5db English version GPON Gigabit wireless fiber optic cat
Overview of HS8545M5
The terminal optical modem product is a pure data gigabit interface ONT device for fiber-to-the-home applications, which fully complies with the ITU-T G.984.x standard, fully opens all functions, and can be well connected with mainstream manufacturers’ OLTs and provides Built-in network management, can manage ONT separately. In practical applications, it is generally used in fiber to the home, and it can also be connected to a switch or placed in a corridor to provide customers with high-speed data services. It provides 1 PON optical port and 1 GE port (10/100/1000M adaptive), 3 10 /100 adaptive electrical port, 1 RJ11 telephone port, 2.4G WIFI (mobile logo) centralized management, zero start.
Features of HS8545M5
1. Support SIP protocol, with good scalability, strong compatibility, etc., can be used in conjunction with Smart Accelink multi-service integrated gateway
2. Support EPON/GPON protocol
3. Support IP fax function
4. Support various IP acquisition methods such as static IP configuration, DHCP, PPPOE, etc.
5. Support routing and switching mode, integrated complete routing and firewall functions
6. Integrated standard AP function, support 802.11 B/G/N
7. Support QoS, including business flow classification, priority marking, queuing and scheduling, traffic shaping and traffic control, etc.
8. Support IGMP Snooping.
9. Support Ethernet port speed limit and loop detection.
10. Support power failure alarm.
11. Support remote reset and restart function
12. Support the function of restoring factory parameters
13. Support data encryption
Specification Of HS8545M5
| Model | Configuration | Dimension/pcs | ||||
| LAN | Telephone | Wifi | PPPOE | Firmware | ||
| HS8545M5 | 1GE+3FE | 1pots | yes | yes | English | 220*160*40 mm/0.5kgs |
| Remarks | GPON,external antenna | |||||

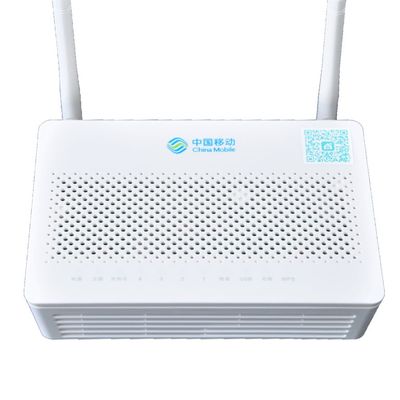

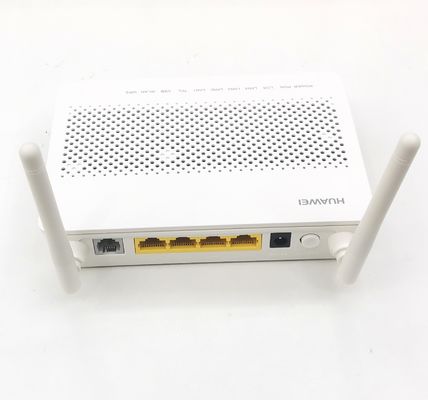

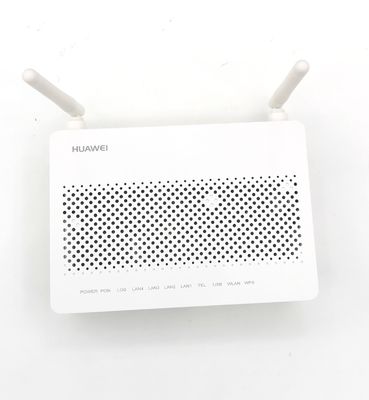

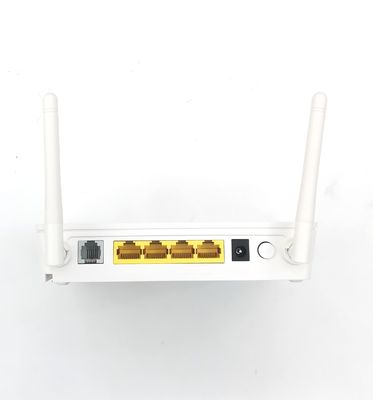

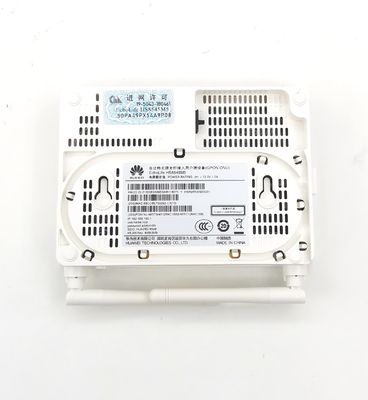

Product display of HS8545M5
Interface Function of HS8545M5
1.Optical port (line terminal):
*1 * GPON interface (SC/UPC)
2.User network interface:
*4 * 10/100/1000Base_T interfaces
*Auto MDI/MDIX
*1 * POTS (VoIP) interfaces
*1 * WiFi interface: IEEE 802.11b/g/n
*1 * USB interfaces
Transmission Rate of HS8545M5
1.Line terminal:
*2.488Gbps downstream and 1.244Gbps upstream
2.User side interface:
*10/100/1000Mbps auto-negotiation
3.WiFi interface:
*IEEE 802.11b/g/n
