Product Details:
|
| Model: | ATLDI | Power Supply: | DC: -48 V (-72 V~-36 V) /AC: 110 V/220 V (85 V~264 V) |
|---|---|---|---|
| Used For: | Zte Olt 9806H | Dimensions: | 88.1 Mm×482.6 Mm×240 Mm (height×width×depth) |
| Management Port: | 1 Network Port (MGT), 1 Serial Port (CONSOLE) | L/T: | STOCK |
| Type: | FTTx Solutions | Warranty: | 1 Year |
| High Light: | ATLDI GPON Optical Line Termina,ZTE 9806H,ZXDSL 9806H |
||

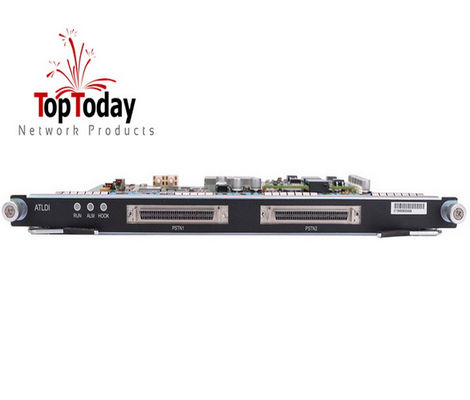

E-ATLDI GPON Optical Line Terminal ZXDSL 9806H ZTE 9806H Voice Board
ZTE 9806H voice board ATLDI E-ATLDI 64-channel voice narrowband user board
| Subrack | The subrack is a 19-inch standard subrack with a height of 2U (1U=44.45 mm), |
| Dimensions | 88.1 mm×482.6 mm×240 mm (height×width×depth) |
| Scenes to be used | suitable for small-capacity access such as ONU nodes, parks, and enterprises application. |
| Scope of application | Scope of application ZXDSL 9806H (V1.0) ZTE broadband integrated access equipment (hereinafter referred to as ZXDSL 9806H or 9806H) is a miniaturized integrated access equipment suitable for occasions where the number of users is small and scattered. |
| Performance | ZXDSL 9806H equipment provides 2 100 M optical/electrical interfaces or 1000 M optical interfaces as uplink ports, and supports up to 96 channels of ADSL/ADSL2+ user access. |
| Features | ZXDSL 9806H adopts front-out line, supports single board (main control board and user board) hot swap, and supports AC/DC power supply. |
| The main interface ZXDSL 9806H provides the following interfaces |
Management port: 1 network port (MGT), 1 serial port (CONSOLE) Uplink/cascade port: 2, GE optical port or FE optical port/electrical port ADSL user interface: 24 users |
| Power supply |
DC: -48 V (-72 V~-36 V) AC: 110 V/220 V (85 V~264 V) |
| Structure and principle function module | ZXDSL 9806H is mainly divided into main control module/Ethernet service processing module, user access module, fan monitoring module, and power supply module. Each module communicates with the main control module through the backplane. |
| ZXDSL 9806H functional module | Software structure ZXDSL 9806H software system is composed of five parts: embedded network management subsystem, protocol subsystem, business subsystem, bearer subsystem and operation support subsystem. |
| Network management subsystem | The network management subsystem provides CLI, and SNMP access interfaces to the outside, and completes the configuration and operation and maintenance management of the entire system through these interfaces, and realizes the functions of real-time data synchronization between master and backup, configuration file generation and storage. |
FAQ
1. Can I get samples?
Yes, you need to place a sample order with us, and we will reduce it from the next order.
2. How do I know that your products are original and brand new?
We guarantee that our company's products are original and brand new. We are the main distributors of Huawei, ZTE, and FiberHome, and get their special offers and technical support. Each model has an S/N number, and we will send you the S/N list after shipment. You can confirm with the manufacturer. You will get competitive prices and professional technical support.
3. Can you design for us?
Yes, if you provide us with content and tell us where to place it, we can produce artwork for you including printing, logos, etc.
4. How do we place an order?
Confirm PI — receive deposit — arrange production/delivery After we reach an agreement on the parameters of the product, we will issue a proforma invoice for your confirmation. When we receive your advance payment (deposit), we will arrange production and delivery. If you have your own shipping agent, we will use your shipping agent to ship the goods. If not, then when the goods arrive at the port of destination, you must find a shipping agent to help you clear customs.
5. How about the freight?
For small orders, we will send the goods by international express such as Hong Kong Fedex, DHL, TNT or UPS. It usually takes about 7 working days to arrive. If the quantity is large, we will ship it by sea, and it will take 1 month to arrive. If urgnet, you can choose air freight, but the freight will be more expensive.
6. What are the advantages of your products?
A. Good quality and competitive price.
B. Strict quality control during production.
C. Professional teamwork, from design, development, production, assembly, packaging and transportation.
D. Good after-sales service. Professional online technical support can be provided. In addition, if there is any problem with the goods, we will help solve the problem or provide replacement goods.
