Product Details:
|
| Brand Name: | Mikrotik | Model Number: | RBwsAP-5Hac2nD |
|---|---|---|---|
| Dimensions: | 112 X 126 X 30 Mm | Size Of RAM: | 64MB |
| CPU Nominal Frequency: | 650 MHz | Max Data Rate: | 300 Mbit/s |
| Storage Size: | 16 MB | Operating System: | RouterOS |
| High Light: | RBwsAP-5Hac2nD,Dual Frequency POE Wireless Access Point,Dual Frequency WsAP Ac Lite |
||
MikroTik RBwsAP-5Hac2nD wsAP ac lite dual frequency 86 boxes wireless AP wifi coverage
Descriptions of RBwsAP-5Hac2nD
The wsAP ac lite is a perfect access point (AP) for hospitality networks (hotels, shopping malls, hospitals, airports etc.). It has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment.

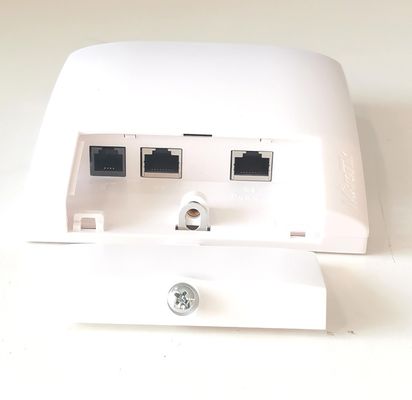

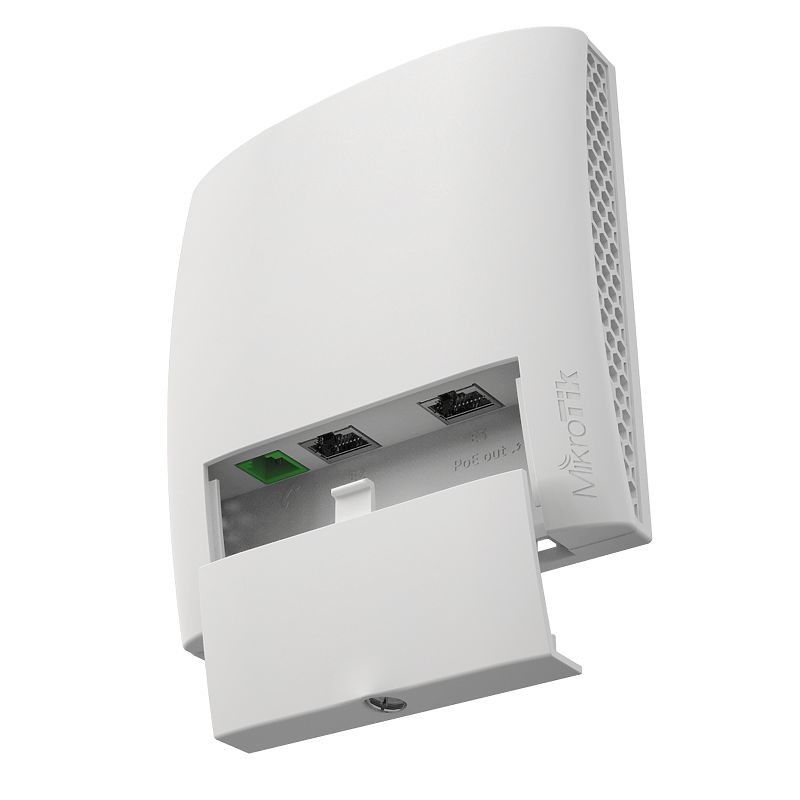

The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door. The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage.

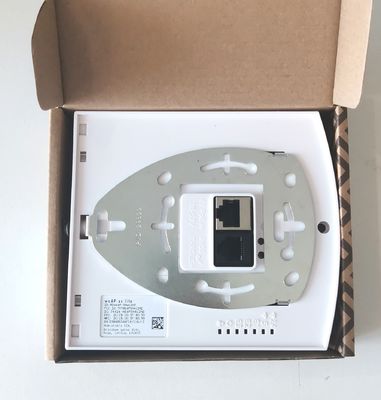

The device also has a pass through telephone jack (RJ11) to connect a desktop phone in a hotel room, for easier cable management. As a separate accessory you can order a special screw set (product code K50), that ensures the bottom door can only be opened by the owner. Mounting bracket fits US and EU most popular telecomunication sockets.
Features of RBwsAP-5Hac2nD
• Ability to work simultaneously in the 2.4 and 5 GHz bands
• RouterOS system with Level 4 license
• 3 10/100 Mb / s Fast Ethernet ports
• 2 RJ11 telephone ports connected in pass-through (act as a connector)
• 802.3af / at power input or passive PoE (18-57 V DC)
• PoE power output on port 3
Hardware features of RBwsAP-5Hac2nD
The WsAP offers three Ethernet ports, one on the back for easy PoE-in and two LAN ports behind the front flap. The device provides two simultaneous transmissions in the 2.4 GHz and 5 GHz bands, supports the 802.11ac standard and slightly older standards. It is also equipped with a USB 2.0 port for charging mobile devices or for storage, as well as a telephone socket (RJ11) to connect, for example, a landline telephone in a hotel room. You can order a special set of screws (product code K50), thanks to which the bottom flap can only be opened by the owner.
Specifications of RBwsAP-5Hac2nD
| Features / filters | |
| Working frequency | Dual Band (2.4GHz, 5GHz) |
| Number of LAN ports | 2x [10/100M (RJ45)] |
| Number of WAN ports | 1x 10/100BaseTX (RJ45) |
| LAN standard | Fast Ethernet 10/100Mb/s |
| Wireless network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, |
| Detachable antennas | No |
| RAM | 64MB |
| USB port | 1x USB |
| The type of power supply to the device | Passive PoE |
| Type of antennas | Integrated |
| Housing type | Plastic |
| Device type | Access point |
| Application | Inside |
| Antenna gain | Below 10dBi |
| Basic technical parameters | |
| Product code | RBwsAP-5Hac2nD |
| Processor | QCA9531 |
| CPU frequency | 650 MHz CPU |
| RAM | 64 MB |
| Memory type | Flash |
| Memory size | 16 MB |
| Ethernet 10/100 ports | 3 |
| Wireless network | 2.4 GHz i 5 GHz |
| Legal regulations of wireless networks | The operating frequency of the device may be limited by legal regulations in a given country |
| Working frequency | 2,4 GHz: 2412-2484 MHz 5 GHz: 5150-5875 MHz |
| Wireless network standards | 802.11b/g/n/ac |
| Number of channels | 2,4 GHz: 2 5 GHz: 1 |
| Antenna gain | 2,4 GHz: 1.5 dBi 5 GHz: 3 dBi |
| Power options | PoE-in 802.3af / at, PoE-out passthrough (Ethernet 3), 18-57V |
| Power consumption | 10 W |
| Dimensions | 112 mm x 126 mm x 30 mm |
| Tested operating temperature range | -40 ° C to 60 ° C |
| LEDs | 7 x LEDs |
| License level | 4 |
| USB | 1 USB 2.0, max output voltage for external devices - 500mA |
| System | RouterOS |
