Product Details:
|
| Brand Name: | Mikrotik | Model Number: | RBmAP2nD(mAP 2nd) |
|---|---|---|---|
| CPU Core Count: | 1 | CPU Nominal Frequency: | 650 MHz |
| Dimensions: | 68x68x19mm | Storage Size: | 16 MB |
| Size Of RAM: | 64MB | License Level: | 4 |
| High Light: | RBmAP2nD,Mikrotik MAP 2nd,650MHz ROS Mini Wireless Router |
||

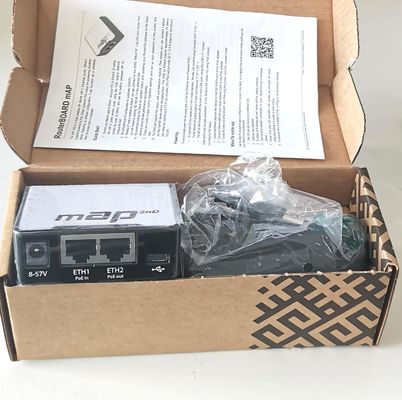

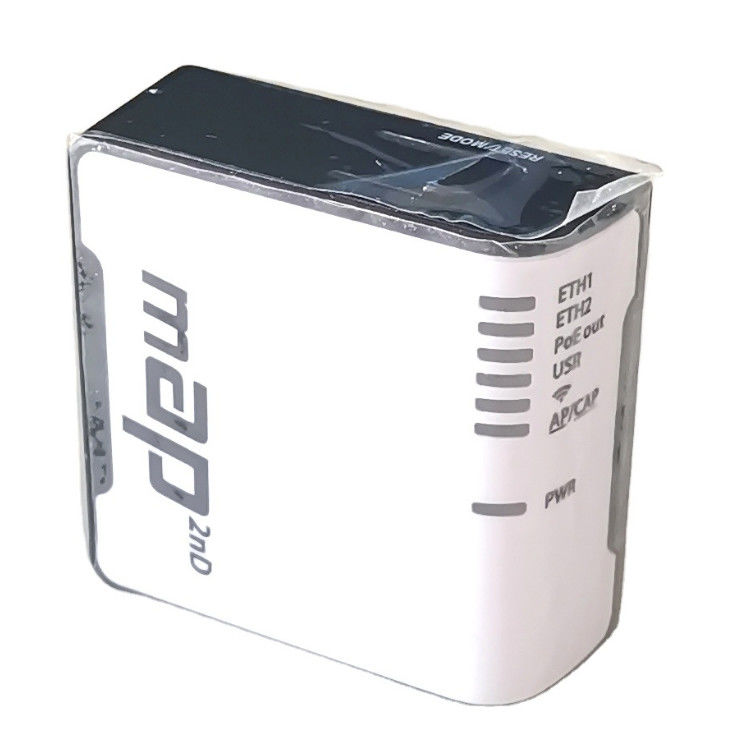

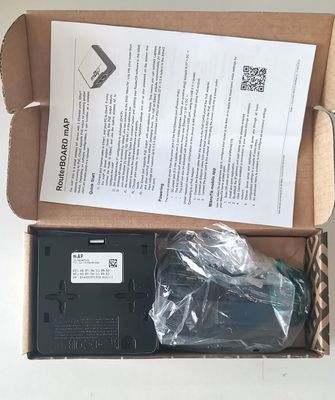

Mikrotik RBmAP2nD(mAP 2nd) 2.4G 650MHz ROS mini wireless router AP Optical Fiber Wifi Router
The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
Features
| RBmAP2nD | QCA9531 100M two port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 297.6 | 152.4 |
| Bridging | 25 bridge filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 80.4 | 41.2 |
| Routing | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 233.1 | 119.3 |
| Routing | 25 simple queues | 16.3 | 197.9 | 47.0 | 192.5 | 131.4 | 67.3 |
| Routing | 25 ip filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 49.1 | 25.1 |
Specifications
| Details | |
|---|---|
| Product code | RBmAP2nD |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 68x68x19mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 70°C |
| Details | |
|---|---|
| MicroUSB input Voltage | 5-5 V |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether2 |
| Number of DC inputs | 3 (DC jack, PoE-IN, MicroUSB) |
| DC jack input Voltage | 8-57 V |
| Max out per port output (input < 30 V) | 0.5 A |
| Max total out (A) | 0.5 A |
| Max power consumption | 5 W |
| Details | |
|---|---|
| Antenna gain dBi for 2.4 GHz | 1.2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wi-Fi generation | 4 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Details | |
|---|---|
| 10/100 Ethernet ports | 2 |
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
