Product Details:
|
Product Name: | RB912UAG-5HPnD-OUT | CPU Nominal Frequency: | 600 MHz |
---|---|---|---|
CPU Core Count: | 1 | Size Of RAM: | 64 MB |
Dimensions: | 246x135x50mm | Max Power Consumption: | 14W At 24v |
10/100/1000 Ethernet Ports: | 1 | Warranty: | 1 Year |
High Light: | RB912UAG-5HPnD-OUT,5.8G wireless wifi bridge,300M wireless wifi bridge |
RB912UAG-5HPnD-OUT 5.8G 300M ROS Wireless Bridge 1W Outdoor
MikroTik RB912UAG-5HPnD-OUT 5.8G 300M ROS wireless bridge 1W outdoor high-power wireless AP
Descriptions of RB912UAG-5HPnD-OUT

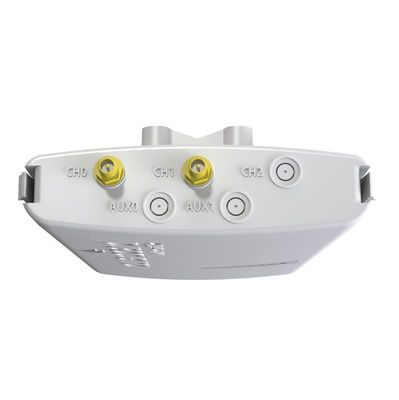

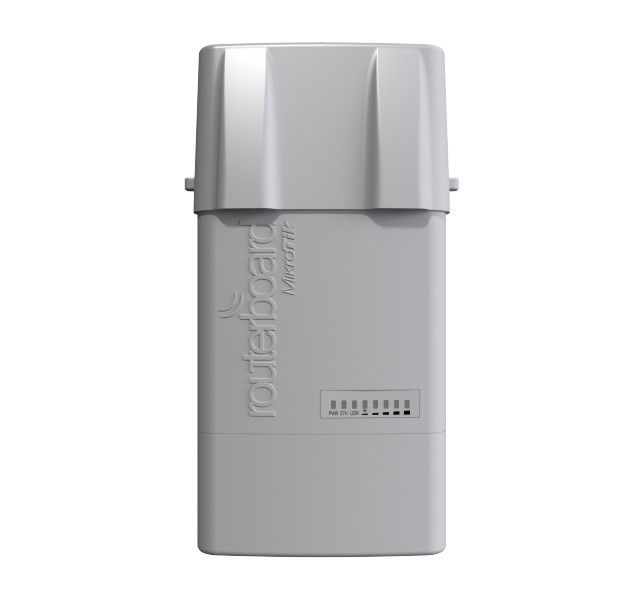

Mikrotik BaseBox5 (RB912UAG-5HPnD-OUT) is a wireless device for outdoor installation operating at 5 GHz, built on a popular motherboard - the Mikrotik RB912 model. BaseBox5 is equipped with two RPSMA connectors for connecting antennas and a protective collar to protect against moisture, therefore it is perfect as a radio module for directional or omnidirectional antennas with RPSMA connectors.
Features of RB912UAG-5HPnD-OUT
• 5 GHz band
• 802.11a / n standards
• Gigabit Ethernet port
• Transmission power 30 dBm (1000 mW)
• 2 RP-SMA antenna connectors
• MIMO 2x2
• Additional miniPCIe slot
• RouterOS with Level 4 license
BaseBox5 specification
The motherboard located inside the device offers a USB 2.0 port and a miniPCIe slot to which a radio / 3G module can be connected, bearing in mind that using 3G makes it impossible to use USB. There are three holes for cables coming from the additional module in the housing. The device is powered via PoE 8-30 V and works based on the RouterOS operating system with a Level 4 license. The kit includes a 24 V, 0.8 A power supply, gigabit PoE injector, mounting bands and a DIN rail mounting bracket. If you want your wireless networks to work flawlessly, choose the Mikrotik RouterBoard BaseBox client device (5 GHz, 1x RJ45 1000 Mb / s).
We are happy to help you choose network equipment and provide technical support. In our store we offer wireless routers, access points, media converters, cpe client devices, ip cameras, ldf routers, cap routers, hap routers, wap routerboards, lhg routers, omnitik routers, powerbox routers, netmetal routers, lhg xl routers and other devices network.
Specifications of RB912UAG-5HPnD-OUT
Details | |
Product code | RB912UAG-5HPnD-OUT |
CPU nominal frequency | 600 MHz |
CPU core count | 1 |
Architecture | MIPS-BE |
Size of RAM | 64 MB |
10/100 Ethernet ports | 0 |
10/100/1000 Ethernet ports | 1 |
MiniPCI slots | 0 |
MiniPCI-e slots | 1 |
Wireless chip model | AR9342-BL1A |
Wireless standards | 802.11a/n |
Number of USB ports | 1 |
Power Jack | 0 |
802.3af support | No |
Supported input voltage | 8 V - 30 V |
PoE in | Yes |
PoE out | No |
Voltage Monitor | Yes |
CPU temperature monitor | No |
PCB temperature monitor | Yes |
Dimensions | 246x135x50mm |
Operating System | RouterOS |
Operating temperature range | -30C to +60C |
License level | 4 |
Antenna gain DBI | No |
Current Monitor | No |
CPU | AR9342-BL1A |
Max Power consumption | 14W at 24v |
SFP ports | 0 |
SFP+ ports | 0 |
USB slot type | USB type A |
Number of chains | 2 |
