Product Details:
|
| Brand Name: | Mikrotik | Model Number: | RBmAPL-2nD(mAP Lite ) |
|---|---|---|---|
| Dimensions: | 48 X 49 X 11 Mm | CPU Nominal Frequency: | 650 MHz |
| Input PoE, Voltage: | 10–60 V. | Storage Size: | 16 MB |
| PoE In: | 802.3af/at | Ethernet 10/100 Ports: | 1x RJ45 |
| High Light: | RBmAPL-2nD,Mikrotik MAP Lite,2.4G Mini Wireless Router |
||

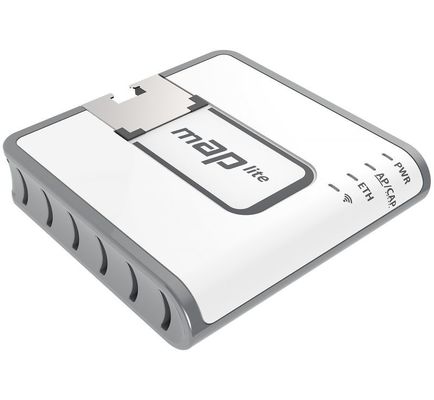

Mikrotik RBmAPL-2nD(mAP lite ) ROS 2.4G mini wireless router AP POE portable
Descriptions

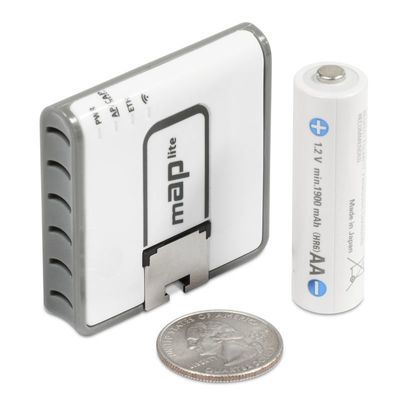

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.
You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
Features
| RBmAPL-2nD | QCA9533 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 82.2 | 42.1 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 118.7 | 60.8 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 53.9 | 27.6 |
Specifications
| Details | |
|---|---|
| Product code | RBmAPL-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 48x49x11mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -30°C to 70°C |
| Details | |
|---|---|
| MicroUSB input Voltage | 5-5 V |
| PoE in | 802.3af/at |
| PoE in input Voltage | 10-60 V |
| Number of DC inputs | 2 (PoE-IN, MicroUSB) |
| Max power consumption | 3.5 W |
| Details | |
|---|---|
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wi-Fi generation | 4 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
