Overviews

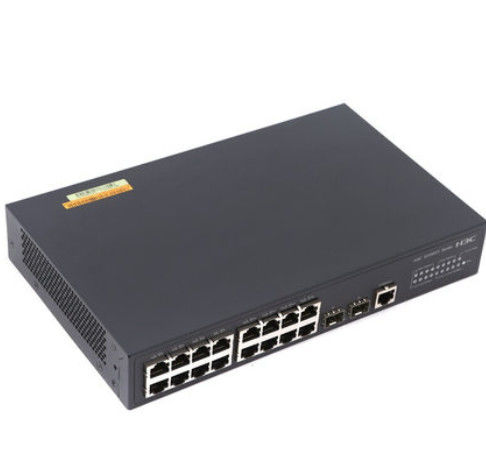

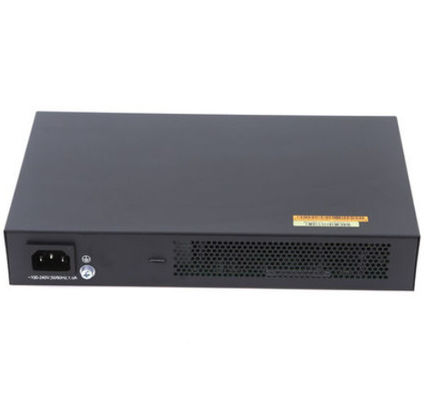

H3C S3100V3-SI series switches are a new generation of Gigabit Ethernet switch products specially designed by H3C to build high-security and high-intelligence network requirements. On the basis of meeting high-performance access, it provides more comprehensive secure access. Access strategy and stronger network management and maintenance ease of use, while providing a wealth of Gigabit hybrid access ports to meet the needs of different scenarios, is an ideal secure and easy-to-use access layer switch.
Enhanced ease-of-use for network management and maintenance:
H3C S3100V3-SI series switches support remote device upgrades via FTP, SNMP v1/v2/v3, and general network management platforms such as Open View, as well as iMC intelligent management center.
Support CLI command line, Web network management, Telnet, making device management more convenient: H3C S3100V3-SI series switches support cross-switch remote port mirroring RSPAN, which can mirror the access port traffic to the core switch, which can be used for the entire network business and Traffic monitoring, optimized deployment and malicious attack monitoring meet the needs of refined management of campus networks.
H3C S3100V3-SI series switches support VCT (Virtual Cable Test) cable detection function, which is convenient for quickly locating network fault points; and supports DLDP (Device Link Detection Protocol) unidirectional link detection protocol, which can effectively prevent single-pass failures in the network Occurs, greatly improving the efficiency of network maintenance, and effectively bringing the ease of use of equipment to users.
Specifications:
Product Type | Enterprise Switch |
---|---|
Transmission rate | 10/100Mbps,10/100/1000Mbps |
Exchange method | store-forward |
Backplane bandwidth | 128Gbps |
Packet forwarding rate | 16.2Mpps |
MAC address table | 16K |
Port structure | non-modular |
---|---|
Number of ports | 18 |
Port description |
8 10/100Base-TX Ethernet ports, 8 10/100/1000Base-T Ethernet ports, 2 1000Base-X SFP ports |
Control port | 1 Console port |
Transmission mode | Full duplex |
Stacking function | can be stacked |
---|
Power supply |
oltage Rated voltage: AC 100-240V, 50-60Hz Maximum voltage: AC 90-264V, 47-63Hz |
---|---|
Power supply |
minimum: 7W Maximum: 15W |
Product size | 260×161×43.6mm |
Product weight | ≤1.5kg |
Environmental standards |
Working temperature: 0-45℃ Working humidity: 10%-90% (non-condensing) |
