Product Details:
|
| Format: | MiniPCI | Brand Name: | Mikrotik |
|---|---|---|---|
| Model Number: | R52HnD | Max Power Consumption:: | 7W |
| Output Power:: | 400mW | Wi-Fi Generation: | Wi-Fi 4 |
| Warranty: | 1 Year | Tested Ambient Temperature: | -40 To +70C |
| High Light: | Mikrotik ROS R52HnD,802.11abgn R52HnD,802.11abgn Wireless Network Card |
||

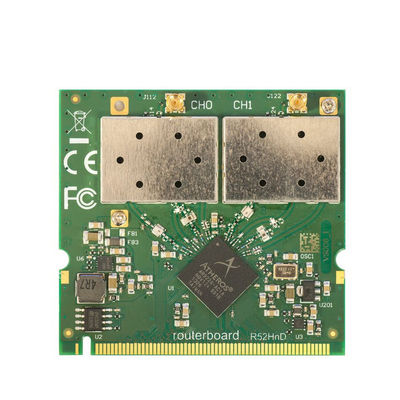

Mikrotik ROS R52HnD 400mw 802.11abgn dual band high power wireless network card
Descriptions
R52HnD is a new version of the popular MikroTika mPCI card. It has a higher output power - 400 mW, it can operate in the 2.4 or 5 GHz band. It has a wide frequency range - 2200 - 2700 and 4800 - 6100 MHz, respectively. The device supports 5/10/20/40 MHz wide channels and is equipped with two MMCX ports. Additionally, it has ESD protection of 15 kV.
The most important features:
* Works in the 2.4 or 5 GHz band;
* Standard a / n;
* Output power 400 mW, 26 dBm;
* MMCX connectors;
* ESD protection.
| Details | |
|---|---|
| Product code | R52HnD |
| 2GHz | Yes |
| 5GHz | Yes |
| Antenna header count | 2 |
| Certification | FCC, IC |
| Chipset | AR9220 |
| Connector | MMCX |
| Format | miniPCI |
| Max power consumption | 7 W |
| Output power | 400mW |
| RouterOS compatibility | Yes |
| Tested ambient temperature | -40 ... +70C |
| Wi-Fi generation | Wi-Fi 4 |
| Wireless 2.4 GHz/5 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz/5 GHz chip model | AR9220 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 4 |
| Wireless 2.4 GHz/5 GHz number of chains | 2 |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/b/g/n |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 26 | -100 |
| 11MBit/s | 26 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 23 | -96 |
| MCS7 | 23 | -78 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 23 | -96 |
| MCS7 | 21 | -78 |
