Product Details:
|
| Type: | GPON ONU | Product Name: | HN8250Ts |
|---|---|---|---|
| UNI: | 1 X 10GE + 4GE + 2POTS | NNI: | 1 XGS-PON |
| Dimensions (H × W × D): | 178 Mm X 117 Mm X 34 Mm | Weight: | About 350g |
| Maximum Powerconsumption: | 12W | Warranty: | 1 Year |
| High Light: | 10 GE GPON ONT ONU,HuaWei HN8250Ts,FTTH GPON ONT ONU |
||
10 GE GPON ONT ONU HuaWei HN8250Ts FTTH Gigabit Optical Cat
HuaWei HN8250TS FTTH Gigabit optical cat XGS-PON optical fiber cat equipment ONU 10G wireless gateway

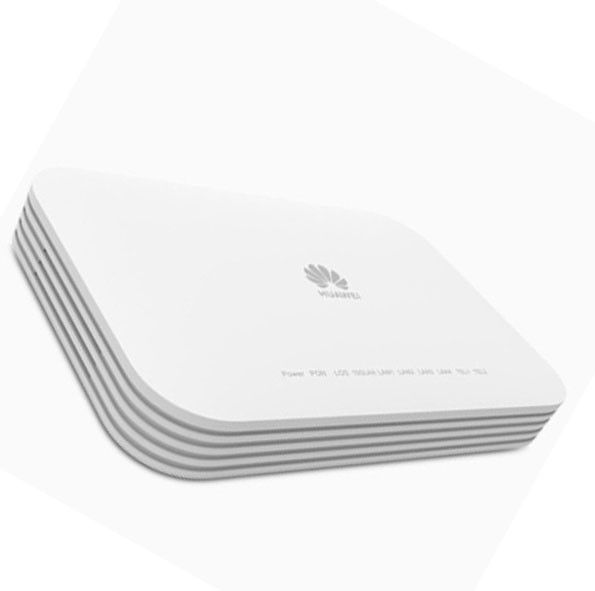

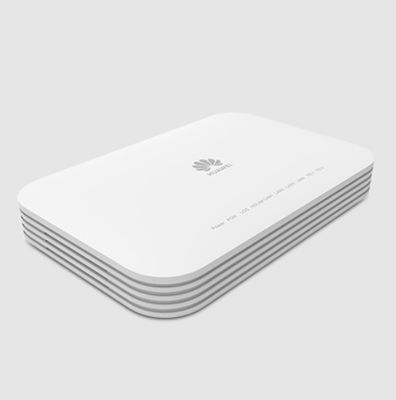

HuaWei HN8250Ts FTTH Product Description
HuaWei HN8250Ts FTTH is an ONU designed for 10Gbps upstream and downstream (XGS-PON). This model offers 1*10 GE+4*GE+2POTS port.
HuaWei HN8250Ts FTTH is an ONU for 10Gbps upstream and downstream (XGS-PON). It provides 1*10 GE+4*GE+2POTS ports that ensure the user experience of Wi-Fi 6, voice, data and HD video services.
10G PON ONT’s user-side speed can reach Gigabit, which can not only meet the high-bandwidth services such as 4K / 8K high-definition video, AR / VR, home cloud, video calls for home users but also provide up to 10 Gigabit dedicated line access services.
Power Saving
Meets Europe's stringent energy efficiency standard: COC V7
Ethernet Port
10 GE: Auto-adaptive 100 Mbit/s,1000 Mbit/s or 10000 Mbit/s
GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
Smart O&M
Variable-length OMCI messages Rogue ONT detection and isolation from the OLT PPPoE/DHCP simulation testing Call emulation, and circuit test and loop-line test V7
HuaWei HN8250Ts FTTH Product Specifications
|
Specification |
EchoLife HN8250Ts |
|
UNI |
1 x 10GE + 4GE + 2POTS |
|
NNI |
1 XGS-PON |
|
Operating temperature |
0℃ to 40℃ |
|
Operating humidity |
5%RH to 95%RH, non condensing |
|
Power adapter input |
90V to 264V AC, 50/60 Hz |
|
Dimensions (H × W × D) |
178 mm x 117 mm x 34 mm |
|
Weight |
About 350g |
|
Maximum powerconsumption |
12W |
|
Surge protection specifications |
GE port: common mode 4 kV; differential mode 0.5 kV |
|
AC power supply: common mode 6 kV; differential mode 6 kV |
|
|
XGS-PON Port |
Class N2 |
|
Receiver sensitivity: -28 dBm 9.95328 Gbit/s upstream, 9.95328 Gbit/s downstream |
|
|
Wavelengths: US 1260-1280 nm, DS 1575-1580 nm SN/Password/SN+Password/Bi-directional authentication based on OMCI |
|
|
Ethernet Electrical Port |
4 x GE + 1 x 10GE |
|
Ethernet port-based VLAN tags and tag removal |
|
|
1:1 VLAN, N:1 VLAN, or VLAN transparent transmission |
|
|
QinQ VLAN |
|
|
Limit on the number of learned MAC addresses |
|
|
MAC address learning |
|
|
10 GE: Auto-adaptive 100 Mbit/s, 1000 Mbit/s or 10000 Mbit/s |
|
|
GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
|
|
POTS Port |
Maximum REN: 4 |
|
G.711A/μ, G.729a/b, and G.722 encoding/decoding |
|
|
T.30/T.38/G.711 fax mode |
|
|
DTMF |
|
|
Emergency calls (with the SIP protocol) |
HuaWei HN8250Ts FTTH Product And More FTTH Models
|
Bridge ONT |
FE |
GE |
POTS |
WiFi |
USB |
CATV |
|
– |
1 |
– |
– |
– |
– |
|
|
– |
4 |
– |
– |
– |
– |
|
|
– |
4 |
2 |
– |
– |
– |
|
|
– |
4 |
2 |
– |
– |
1 |
|
|
Gateway ONT |
|
|
|
|
|
|
|
EG8120L |
1 |
1 |
– |
– |
– |
– |
|
– |
4 |
– |
b / g / n |
1 |
– |
|
|
EG8245H |
– |
4 |
2 |
b / g / n |
1 |
– |
|
EG8141A5 |
3 |
1 |
1 |
a / b / g / n |
1 |
– |
|
– |
4 |
1 |
a / b / g / n / ac |
1 |
– |
|
|
HG8245D |
– |
4 |
2 |
a / b / g / n |
1 |
– |
|
EG8247H |
– |
4 |
2 |
b / g / n |
1 |
1 |
|
HG8245Q |
– |
4 |
2 |
a / b / g / n / ac |
2 |
– |
|
PoE ONT |
30W per port, 60 / 120W per system (4/8 port) |
|||||
|
EG8040P |
4 |
|
– |
– |
– |
– |
|
EG8080P |
8 |
|
– |
– |
– |
– |
|
EG8240P |
4 |
|
2 |
– |
– |
– |
|
EG8280P |
8 |
|
2 |
– |
– |
– |
|
10G XPON ONT |
10GE |
GE |
POTS |
WiFi |
USB |
|
|
– |
4 |
2 |
a / b / g / n / ac |
2 |
|
|
|
1 |
4 |
2 |
a / b / g / n / ac |
2 |
|
|
|
HN8255WS
|
|
4+10GE |
2 |
a / b / g / n / ac |
||
